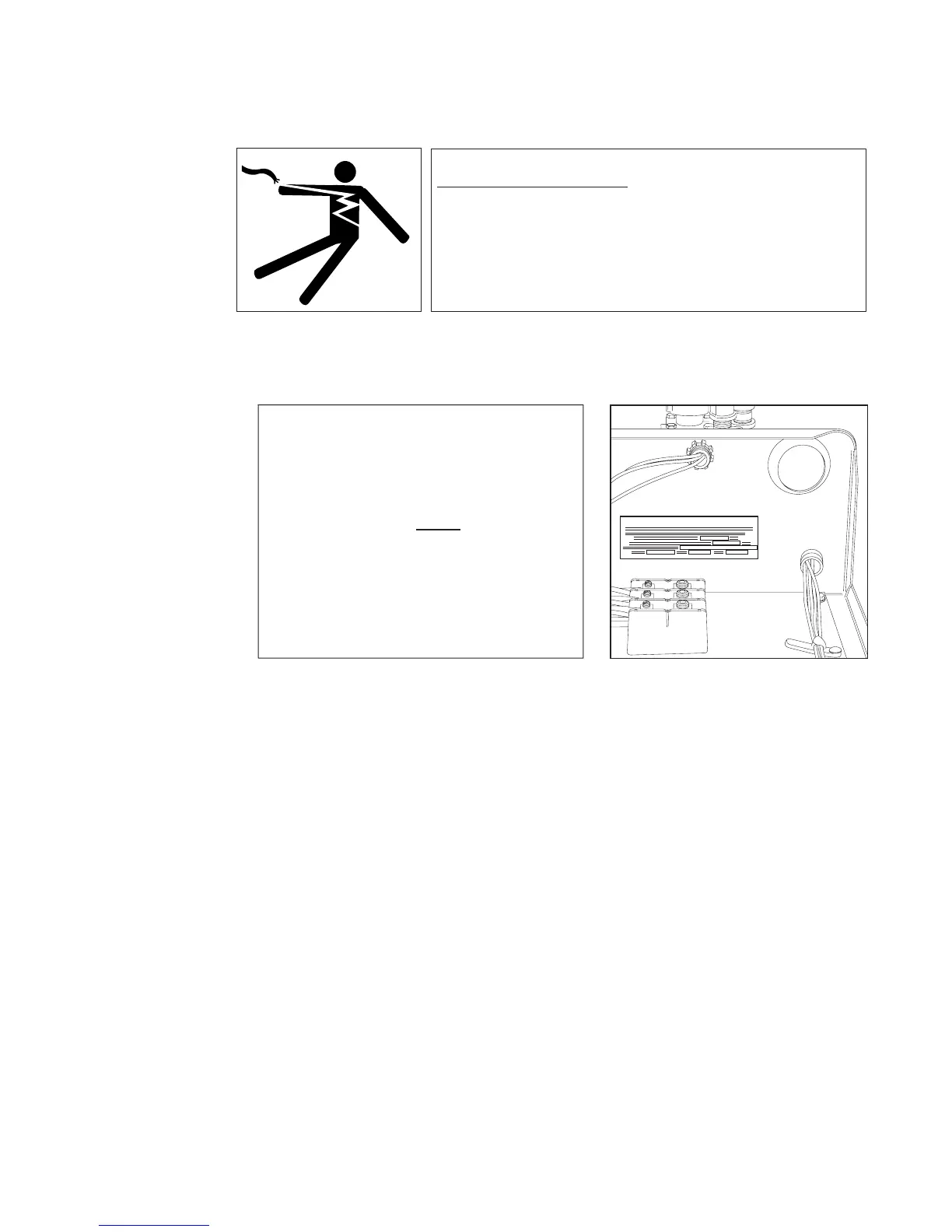

MACHINE ELECTRICAL CONNECTION
!!ATTENTION!!
Electrical and grounding connections
must comply with the National Electrical Code
or in the absence of a National Code then
all Local Electrical Codes.
A qualified electrician MUST compare the
electrical power supply with the machine
electrical specifications stamped on the
MACHINE ELECTRICAL
CONNECTION PLATE
located inside the control cabinet before
connecting the main power to the dishwasher.
1. The Main incoming power to the dishwasher is made at the top of machine
in the control cabinet.
2. The electrician must connect the incoming power based on the information
that is stamped on the Machine Electrical Connection Plate.
3. Any change to the Machine Electrical Connection Plate must be approved
by the factory in advance.
4. The dishwasher main power terminal block is located inside the top-mounted
control cabinet.
5. A knock-out plug is provided at the rear of the control cabinet for electrical
service connections.
6. Built-in electric booster heaters have a separate main power connection
except Models 44 WS and 66WS.
7. Electric blower-dryers have a separate main power connection.
8. If the machine incoming voltage exceeds 208-240VAC then the Dual Rinse
(DR) models have a step-down transformer mounted on the frame of the
dishwasher to reduce the incoming voltage for the DR drain pump.
ATTENTION
A qualified electrician must connect the main incoming power to the dishwasher in accordance with all
local codes and regulations or in the absence of local codes in accordance with the National Electrical
Code.
WARNING:
Electrocution or serious injury may result when working on an
energized circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being
performed on the circuit.
Installation
Electrical Connections
