Installation
Curtain Locations
1. Refer to the illustrations below and hang the curtains as shown.
J-hooks are located in the corners of each section to accept the curtain rods.
• Standard long curtains 24” x 20-1/4”
• High hood long curtains 24” x 22-3/4”
• Standard short curtains and DR 24” x 13-/14”
• High hood short curtains 24” x 20-1/4”
• Final rinse curtain 24” x 6-1/4”
2. Make sure the that the short flaps of the curtains face the load end of the dishwasher. The
longest curtains always go on each end of the dishwasher.

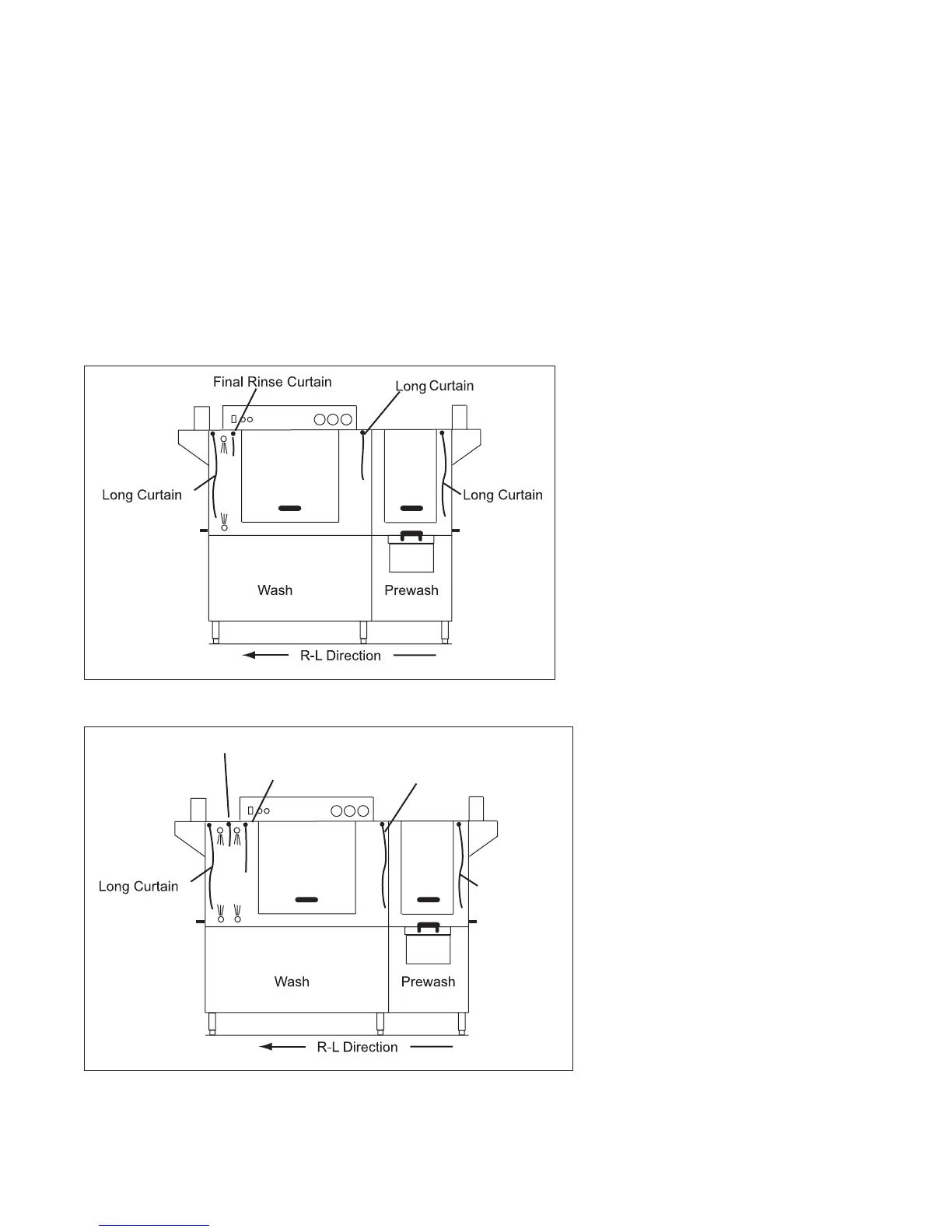

Single Tank Dishwasher Curtain Locations.
DRFR
Long Curtain
Long CurtainDual RInse Curtain
Final Rinse Curtain
Dual Rinse Single Tank Dishwasher with Prewash Curtains.
NOTE:
Misplacing a curtain or failing to
install a curtain will adversely affect
the proper operation of the machine.
