Champion 44 - Page 99


Pump/Motor Assembly
1 100736 Screw 1/4-20 x 3/4 Hex Head 6
2 106482 Washer, Lock 1/4” 10
3 113705 Plug 1/2” NPT Countersunk Brass (2HP) (Wash/Rinse) 1
3 102504 Plug 1/2” NPT Brass Sq Head (1HP) (Prewash) 1
4 102500 Plug 1/4” NPT Brass 2
5 111943 Gasket .032 Thk (3 Notches) 1
6 111942 Gasket .015 Thk (2 Notches) 1
7 111941 Gasket .0085 Thk (1 Notch) 1
8 100735 Screw 1/4-20 x 5/8 Hex Head 1
9 110247 Nut Jam Hex 7/16-20 SST 1
10 110248 Washer .44OID x .043SST 1
11 113118 Impeller 1HP, SST Machined (Prewash) 1
--- 113603 Impeller 2HP and 3HP SST Machined (Wash/Rinse) 1
12 111111 Seal Pac Type 16 1
13 113635 Flange, Jet Pump, SST NG 1
14 107690 Nut, Jam 3/8-16 4
15 106407 Washer, Lock 3/8 Split 4
16 204460 Backing Plate 1Hp, 2HP, 3HP 1
17 110270 Washer, C-Sunk, Ex-Tooth SST 3
18 100754 Screw 10-32 x 1/2 Flat Head 3
19 109654 Slinger-Water 1
20 110419 Motor 1HP MV/60/1 (Prewash) 1
--- 110421 Motor 2HP MV/60/1 (Prewash) 1
--- 110420 Motor 1HP MV/60/3 (Prewash) 1
--- 111739 Motor 1HP 575/60/3 (Prewash) 1
--- 113420 Motor 2HP MV/60/3 (Wash/Rinse) 1
--- 111740 Motor 2HP 575/60/3 (Wash/Rinse) 1
--- 110424 Motor 3HP MV/60/3 (Wash/Rinse) 1
--- 111741 Motor 3HP 575/60/3 (Wash/Rinse) 1
21 112380 Pump Volute Machined (Prewash) 1
--- 113634 Pump Volute SST (Wash/Rinse) 1
--- 112338 Gasket, Pump Suction Flange (Not Shown) 1
--- 900737 Kit*Gaskets, Jet Pump (Includes Items 5-7) A/R
--- 900183 Kit*Seal & 1HP Impeller (Includes Items 5-7, 11 and 12) A/R
--- 900184 Kit*Seal & 2HP Impeller (Includes Items 5-7, 11 and 12) A/R
--- 900185 Kit*Seal & 3HP Impeller (Includes Items 5-7, 11 and 12) A/R
Item Part Description Qty.
No. No.
LH and RH indicate on which side of the machine the pump is located.
Complete Pump Assemblies:
415531 1HP PW 115-240/1/60
414965 1HP PW 208-480/3/60
415917 1HP PW 575/3/60
415743 2HP PW 115-240/1/60
415744 2HP PW 208-480/3/60
415745 2HP PW 575/3/60
414820 2HP LH 115-240/1/60
414373 2HP LH 208-480/3/60
415918 2HP LH 575/3/60
414821 2HP RH 115-240/1/60
414374 2HP RH 208-480/3/60
416243 2HP RH 220/380/3-50
415919 2HP RH 575/3/60
414977 3HP LH 208-480/3/60
415920 3HP LH 575/3/60
414978 3HP RH 208-480/3/60
415921 3HP RH 575/3/60

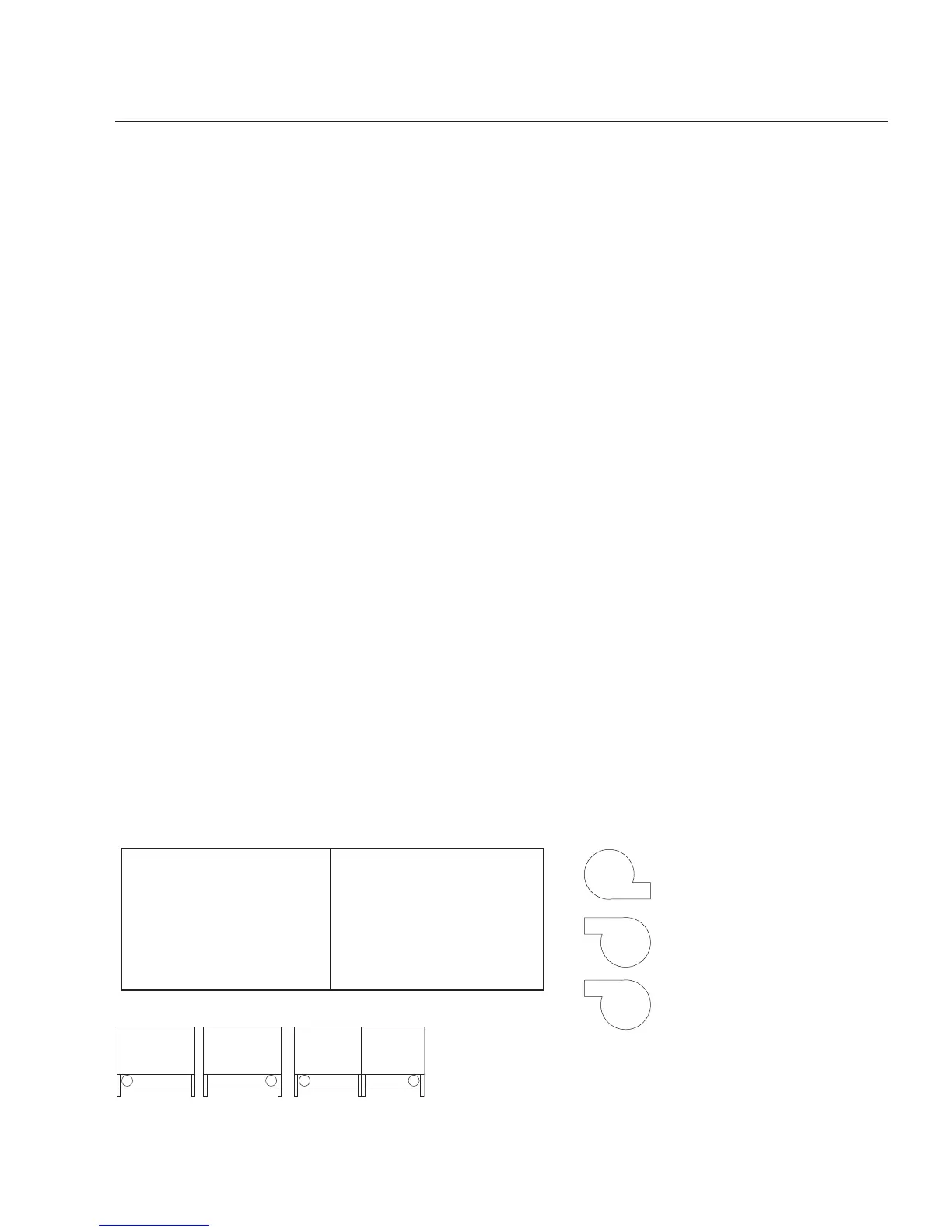

LH RH LH RH
LH
RH
PW
Pump
Configurations
