Installation
Converting Straight-through Operation to Corner Operation
Dishwashers are shipped from the factory for Straight-through operation. Refer to the diagrams below
and on the next page to convert a Straight-through operation machine to a Corner operation machine.
Dish racks enter and exit the sides of a straight-through machine. Dish racks enter the side and exit the
front of corner operation machine.
To convert the dishwasher:
1. Convert the dishwasher before it is placed in its nal position and before connecting utilities.
2. The temperature gauges must be clearly visible to the operator when facing the front of the
machine. In addition, the door handles should move freely without interference from walls or other
obstructions. Nominal wall clearance is 6" [152mm]; the minimum wall clearance is 4" [102mm].
3. Position the dishwasher as shown below and refer to the next page for instructions on changing
the dish rack guides and door operation.

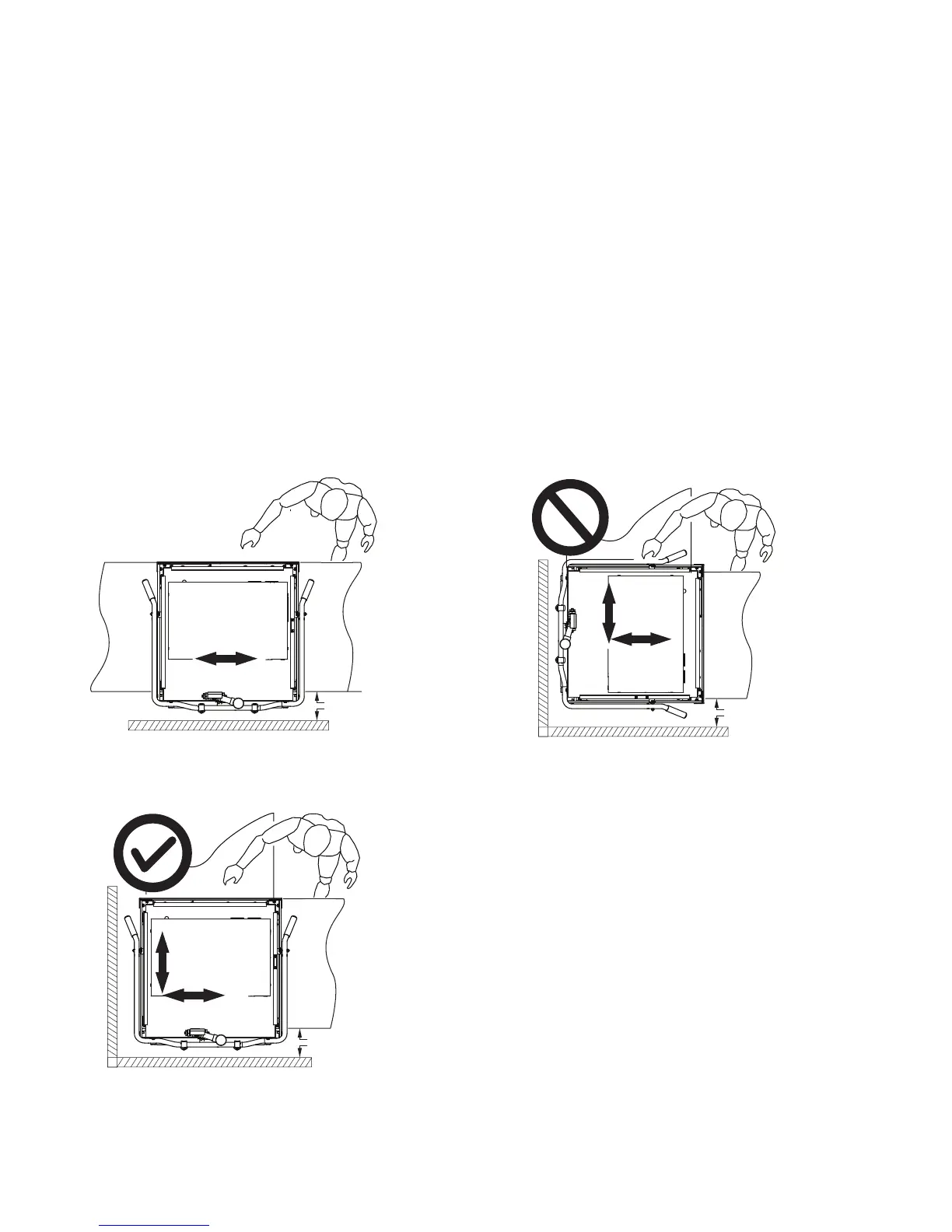

6" [15cm]
Temp.
Gauges
Correct Orientation for
Corner Operation
6" [15cm]
Temp.
Gauges
Incorrect Orientation for
Corner Operation
6" [15cm]
Temp.
Gauges
Correct Orientation for
Straight-Through Operation
To Next Page
