208
Motors
Low voltage: 115 VAC 208-240 VAC,50/ 60HZ, 1 and 3 PH
High voltage: 480 VAC, 50/60HZ, 3 PH
High voltage: 575 VAC, 50/60HZ, 3 PH
(Special order only - Must have factory approval) 120VAC, 50/60HZ, 1 PH
Horsepower:
Prewash pump: 1, 2 or 3 HP
Wash pump: 3 HP
Rinse pump: 3 HP
EconoRinse pump: 1/5 HP,
(115 VAC)
Conveyor drive: 1/2 HP

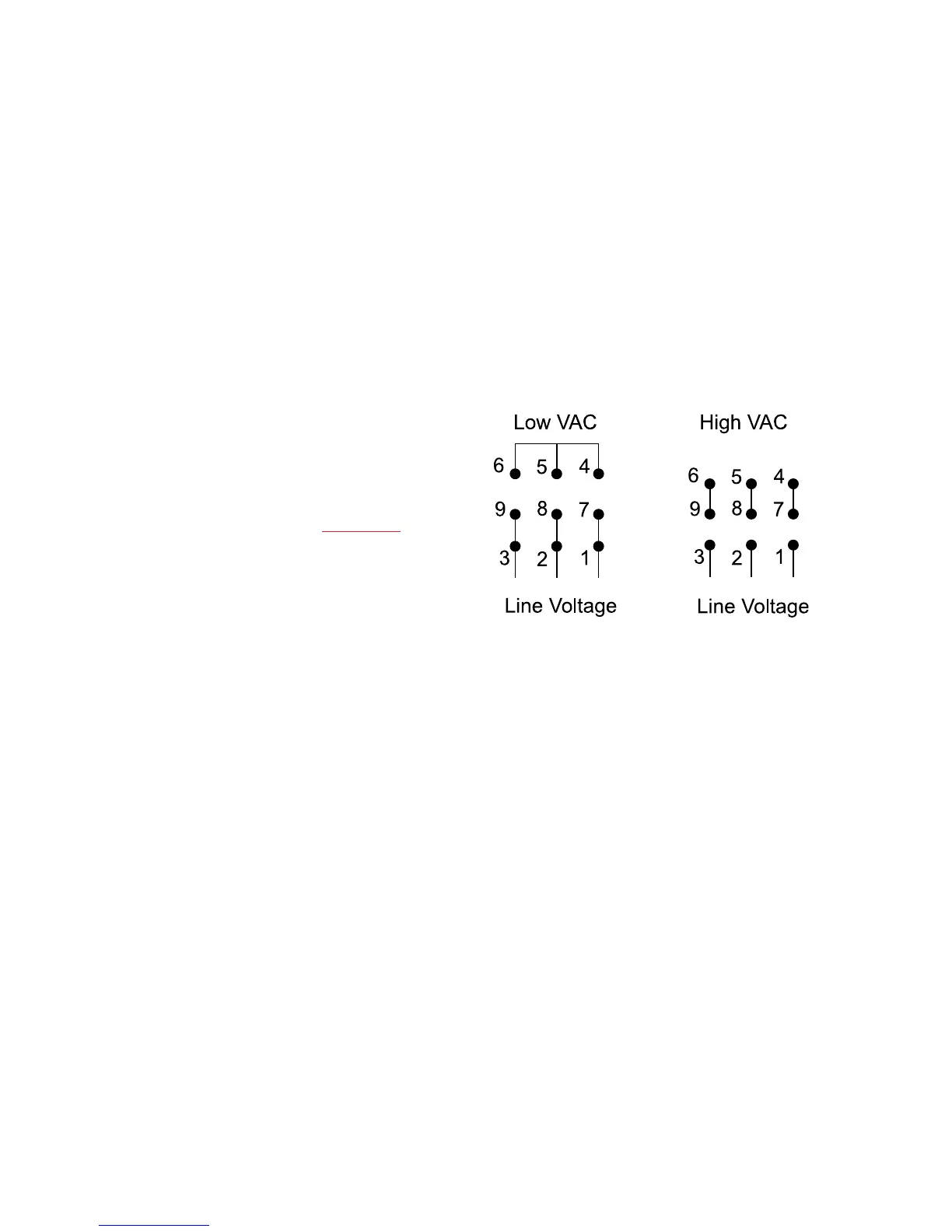

Motor Wiring:
1. Refer to the wiring diagram at right.
2. 208VAC/240VAC/3PH motors are connected per
the low voltage diagram.
3. 480VAC/575/3PH motors are connected per
the high voltage diagram.
4. The 115 VAC econo-rinse pump motor has a
flexible power cord, (WHT, BLK, GRN wires).
Troubleshooting:
Motor will not run:
1. Check incoming 3-phase power at the
main terminal block in the control cabinet.
2. Check for tripped motor overload in control cabinet.
Motor runs hot and trips motor overload:
1. Check for proper voltage between L1-L2, L2-L3, L1-L3.
2. Check FLA on motor leads L1, L2, L3 using amp tester.
(Motor full load amp ratings, (FLA), are stamped on motor nameplates).
Motor runs hot and trips motor starter overload:
1. Check for proper voltage between L1-L2, L2-L3, L1-L3.
2. Check FLA on motor leads L1, L2, L3 using amp tester. (Motor full load amp (FLA)
ratings are stamped on motor nameplate).
Basic Service ________________
Electrical Service
Basic Service • Electrical
