Champion Simplex - No Protection Circuit - with Hour Meter & Selector Switch - 208 V thru 230 V, 1 Phase

Simplex Control Panel 15 CQF3475 v.02
Operation & Service August 06, 2019
Section 4 – Wiring Diagrams (cont.)

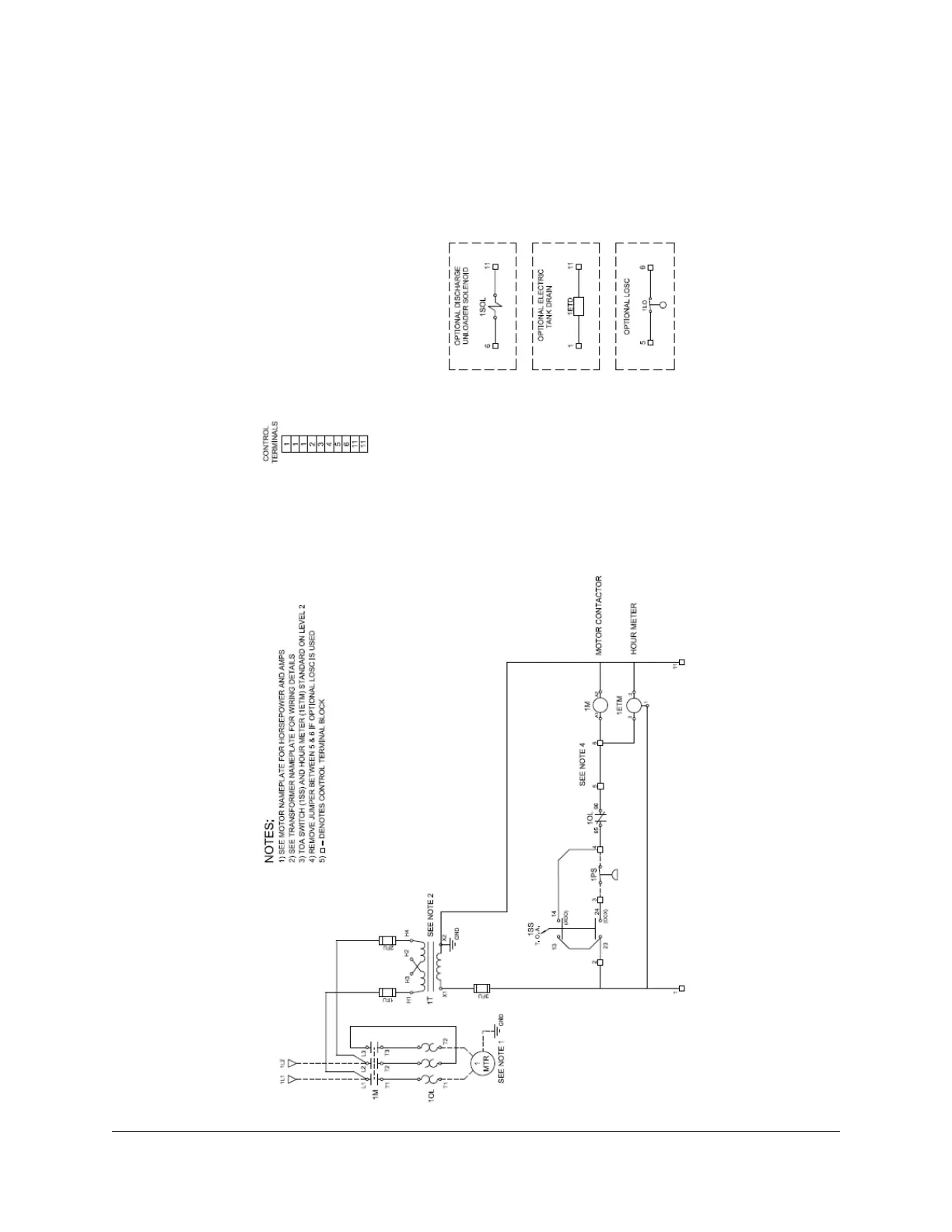

4.8 No Protection Circuit - with Hour Meter & Selector Switch -
208V thru 230V, 1 Phase
344CAS546-L2-00
Ref. Drawing
