MagicQ Training Course
3 of 21 – Part Three: Maintenance
www.chamsys.co.uk
Preparing to remove the front panel metalwork

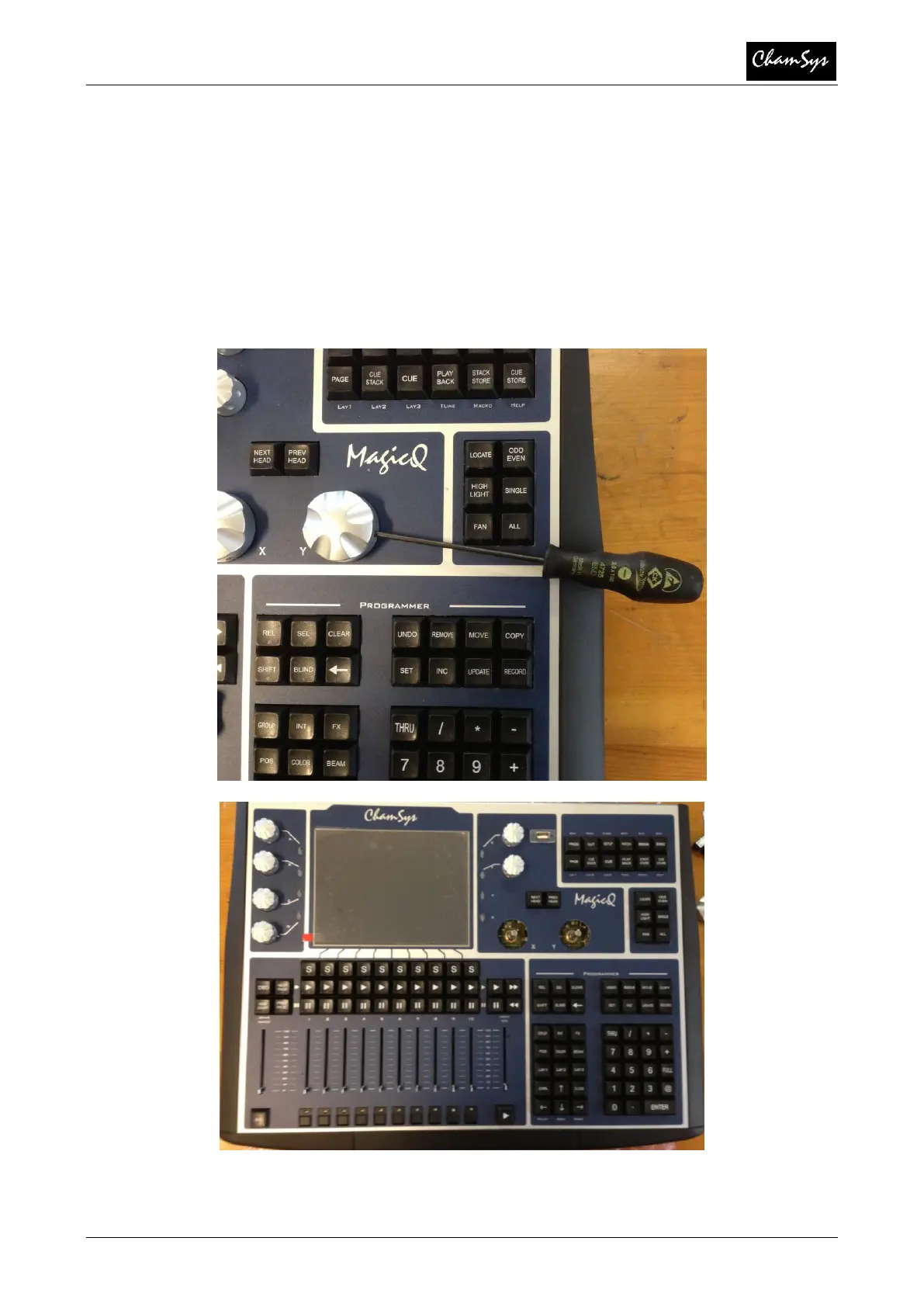

In order to remove the front panel metal work to access the top side of the main
PCB board, all 12 fader knobs and the 2 large high res encoders must be
removed. The 6 smaller low res encoder knobs do not need to be removed.
The Faders knobs will gently pull off, with the Encoders requiring a small flat
head screw driver to remove them.
Note the screws only need loosening off, rather than fully removing to lift off the
encoders.
