MagicQ Training Course
11 of 21 – Part Three: Maintenance
www.chamsys.co.uk
Replacing Components
Removing the Screen/Screen replacement.
The MQ40/40N/60/70 consoles use the same display assembly, which is available as a
complete display/touch combined assembly directly from ChamSys. ChamSys part no
for this is: 410-102

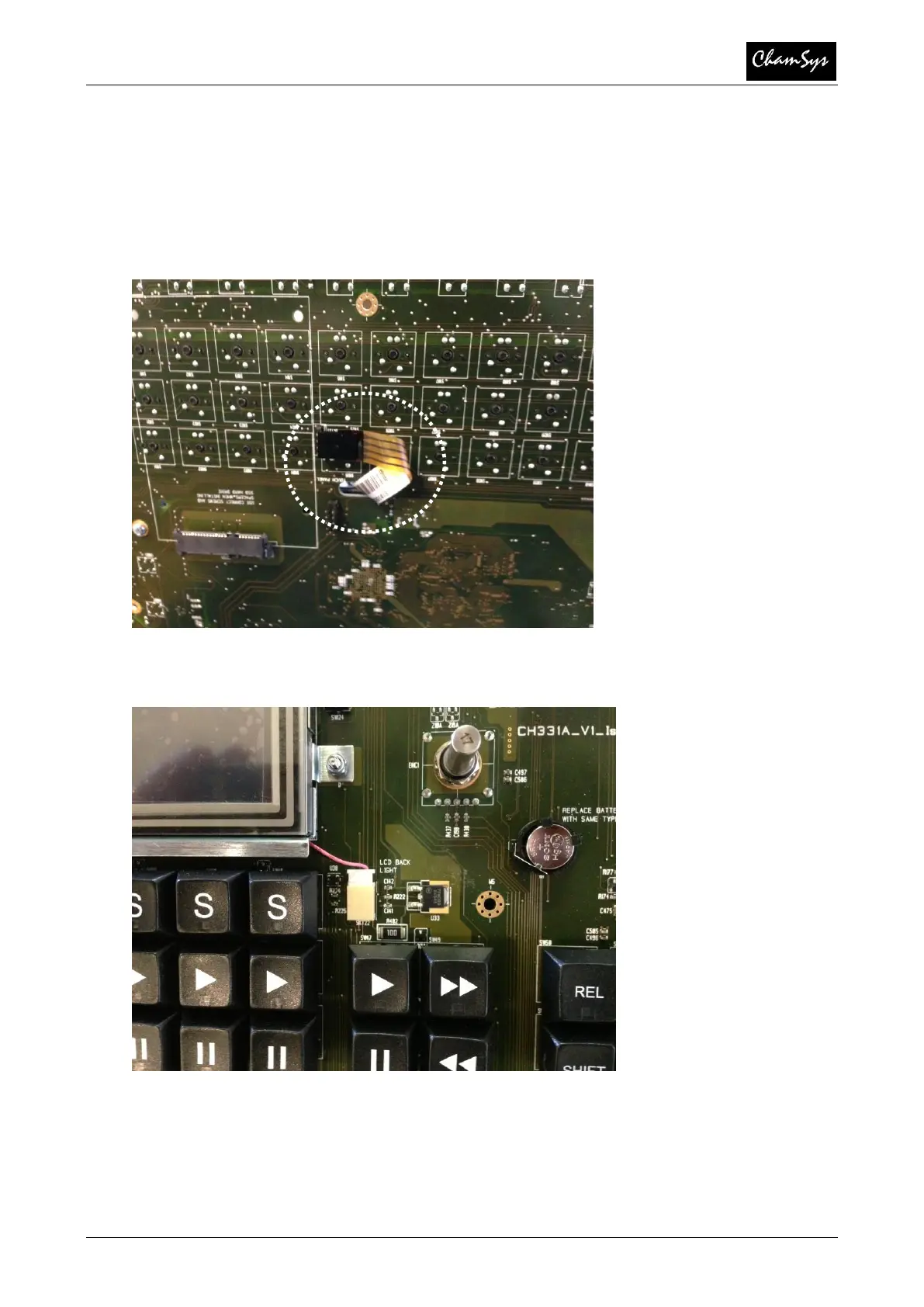

Disconnect the touch screen connector located on the underside of the PCB. This is a
push fit connector. Note the orientation of the connector before removal.
Disconnect the LCD back light connector cable located on the lower right hand side of
the screen on the front panel.
