ChamSys MagicQ Compact Series User Manual

MagicQ Training Course
10 of 21 – Part Three: Maintenance
www.chamsys.co.uk

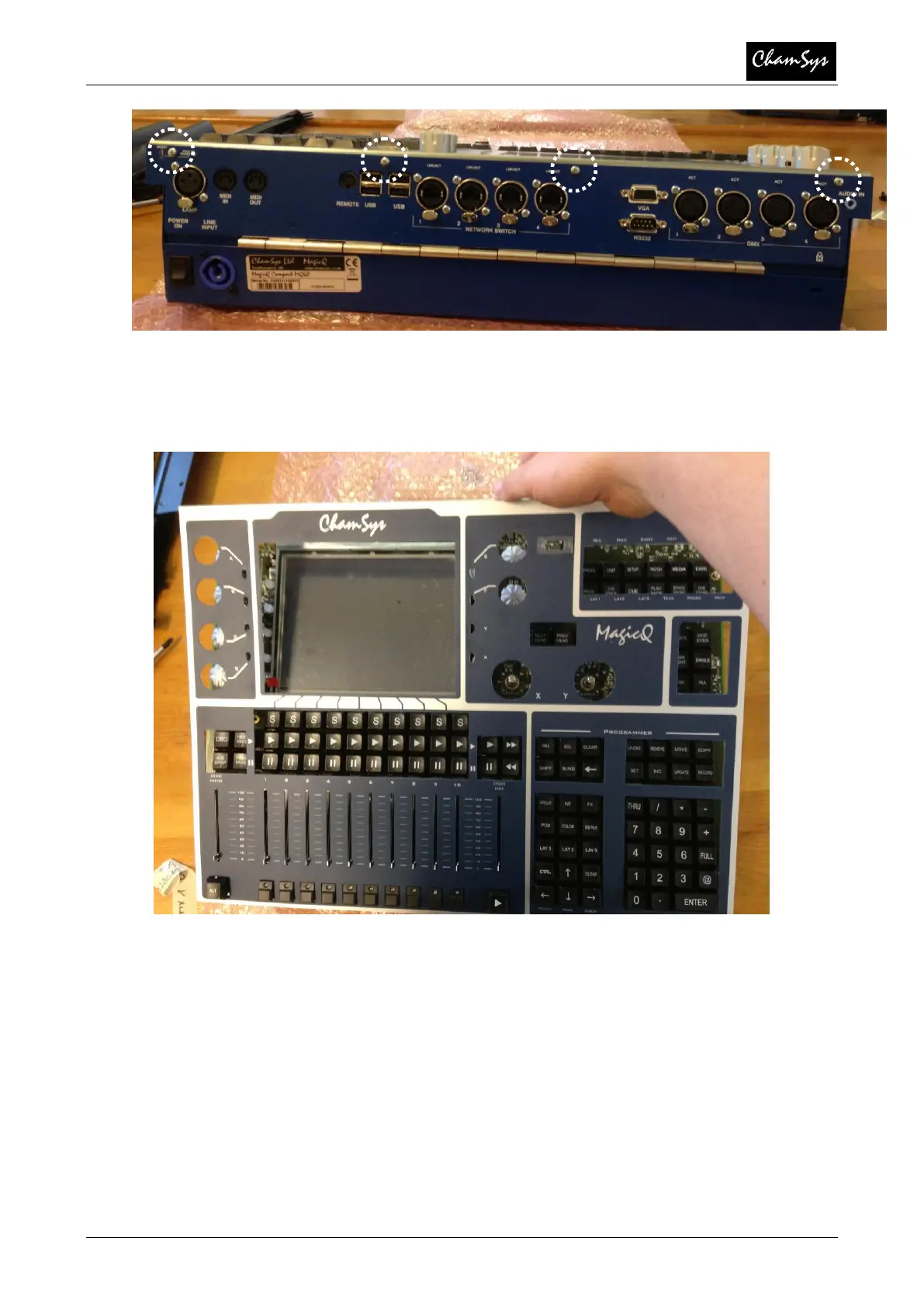

Turn the console around and remove the 4 of M3 x 5mm Pozi head screws as above.
Once removed the front panel is lifted away from the main PCB.
With the console at this stage, maintenance such as replacement of screen
replacement, keys, encoders and faders can be carried out.

ChamSys MagicQ Compact Series Specifications

General

Brand	ChamSys
Model	MagicQ Compact Series
Category	Music Mixer
Language	English
