Opening the Console
The console is opened by removing the 6 of M4 x 6mm Pozi head screws
located under the console.

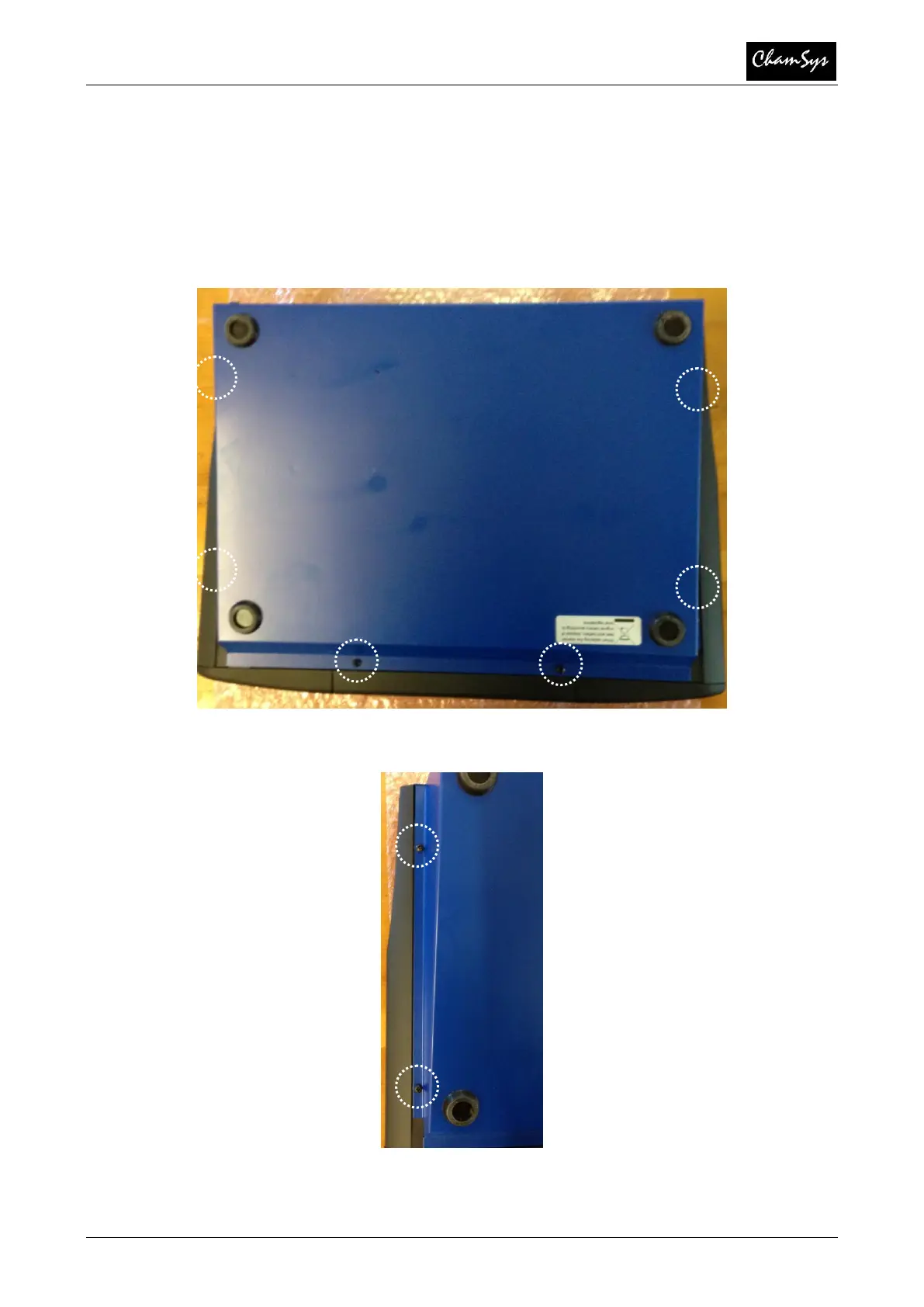

Turn the console upside down onto a soft surface such as bubble wrap and
remove the 6 screws as shown:
