ChamSys QuickQ Series Service Document
Page 2 of 17 www.chamsys.co.uk
Section 1: An overview of the console and all components.

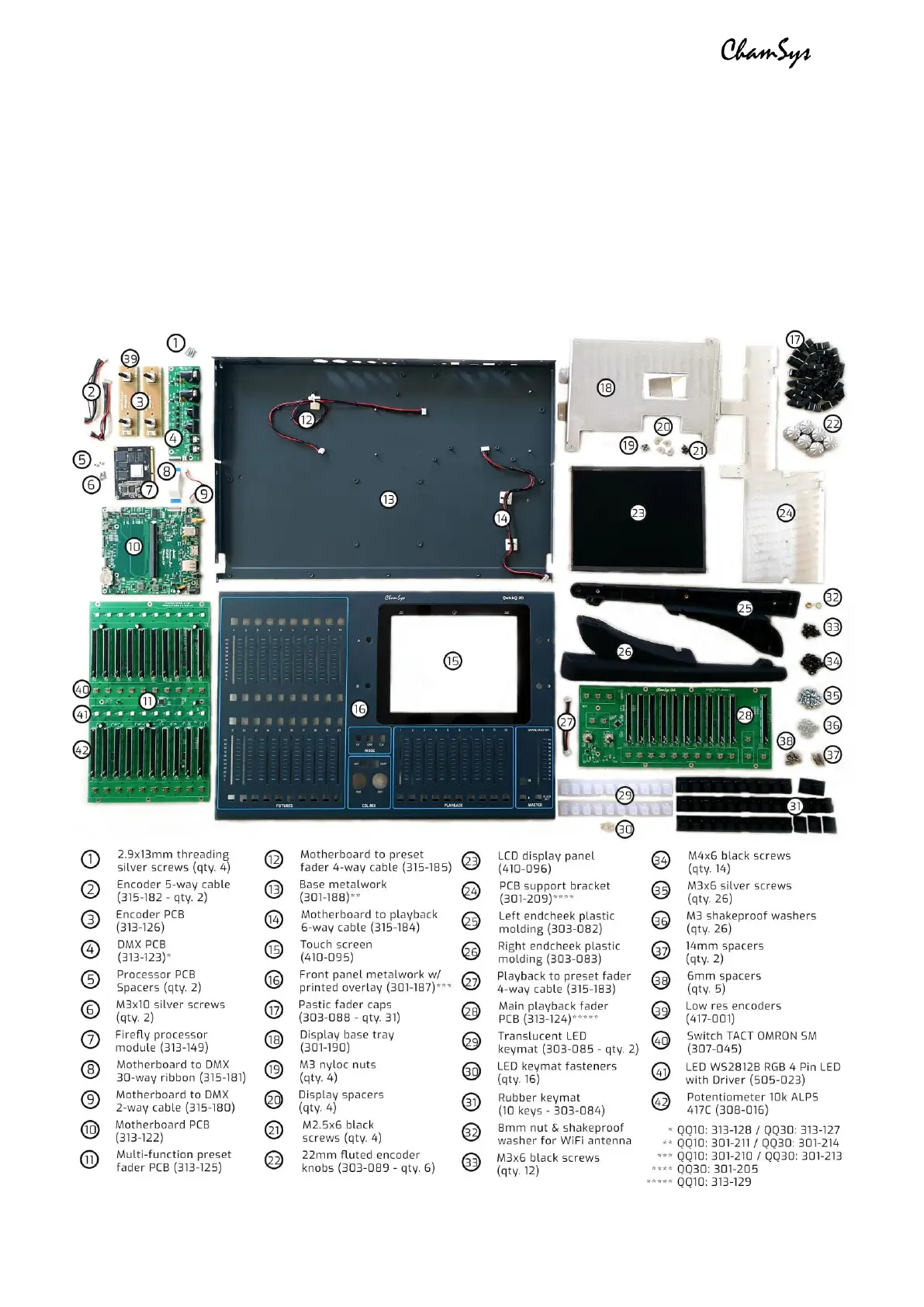

Below is an exploded picture of a QuickQ 20 console, showing all components.
Underneath is a list of all parts and ChamSys part numbers, where applicable.
Note that these parts are for a QuickQ 20 console, as an example. Parts for the QuickQ 10
and QuickQ 30 consoles are similar, in most cases the same. Any differences will be
highlighted with asterisks (*). Quantities of fixings apply only for the QuickQ 20 console.
