Chapin 8200A - Baffle Operating Instructions; Baffle Adjustment; Storage and Maintenance; Handle Folding Procedure

CHAPIN INTERNATIONAL, INC. P.O. BOX 549 700 ELLICOTT ST. BATAVIA, NY 14021-0549 www.chapinmfg.com 800-950-4458
STORAGE AND MAINTENANCE
• When nished spreading empty hopper of any remaining material
• oroughly wash spreader and allow to dry before storing
• To fold down handle:
- Simply remove the bottom two bolts on the handle
- Loosen two thumb nuts and fold down handle
- Replace two bottom bolts
- Tighten thumb nuts completely
Ref.# Qty Part No. Description
1 1 6-9071 Gear Box Assembly
2 1 6-9040 Drive Shaft w/2 bearings
3 1 6-9072 Single Baffle
4 1 6-9073 Bail Assembly
5 1 6-9074 Auger
6 1 6-9061 Impeller
7 1 6-9020 Wheels w/hardware & instructions
8 1 6-9021 Thumb Nuts
9 1 6-9022 Hardware Bag
10 1 6-9050 Rear Baffle

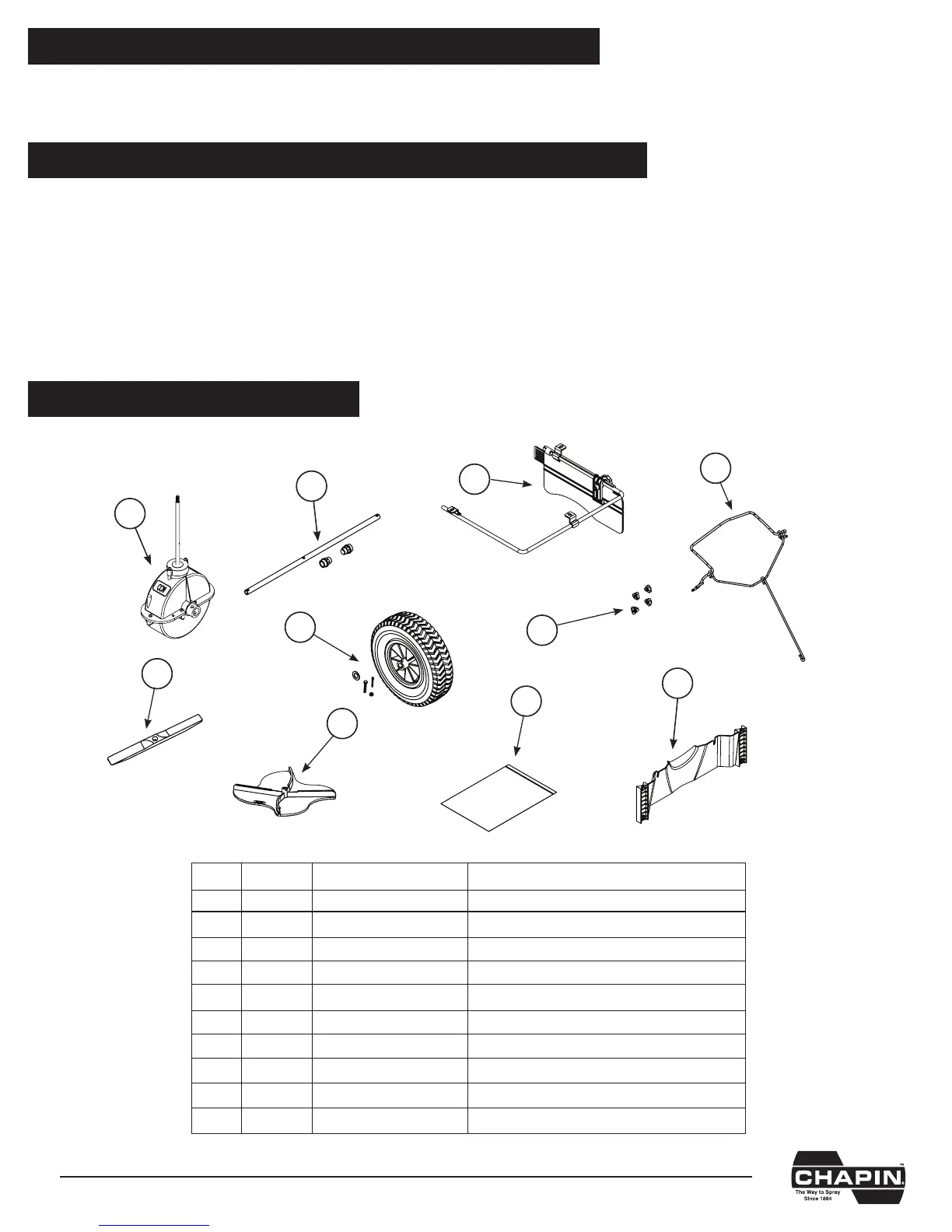

REPLACEMENT PARTS
BAFFLE OPERATING INSTRUCTIONS
• Adjust bae by hand to block distribution accordingly.
• Use wing nuts to adjust tension on bae.
2
6
7
8
9
4
10
5
3
1
