Chapin Spreader Operator’s Manual - English
2E
FLAT AUGER ASSEMBLY
Thread auger clockwise onto impeller shaft. Screw auger
retaining nut into auger hole with M6 socket driver.
Tighten completely with wrench to secure.
Choose flat auger for general turf applications.
• Fertilizers
• Herbicides
• Pesticides
• Grass Seed
• Free-Flowing Material
FLAT
AUGER
AUGER
NUT
IMPELLER
SHAFT

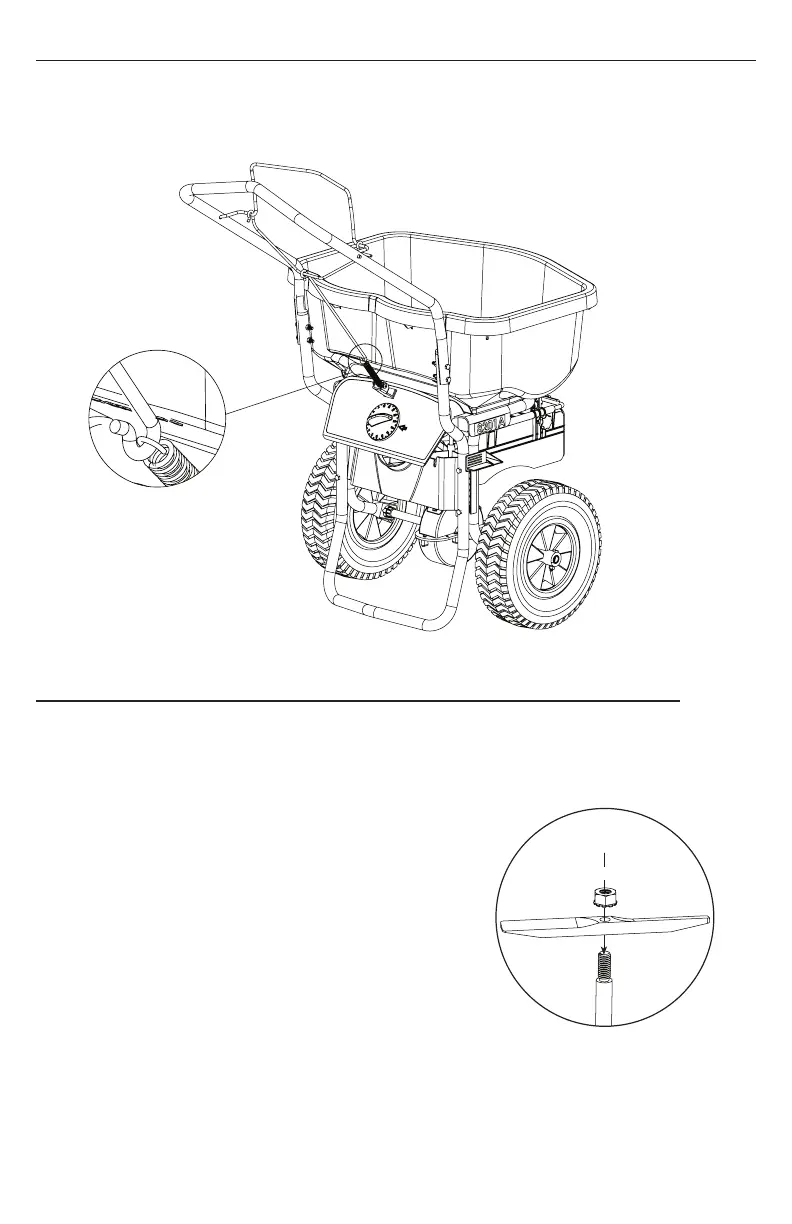

AUGER ASSEMBLY
Figure B
Note: If spring detaches from bail assembly,
simply re-attach (see Figure B).
