5
6

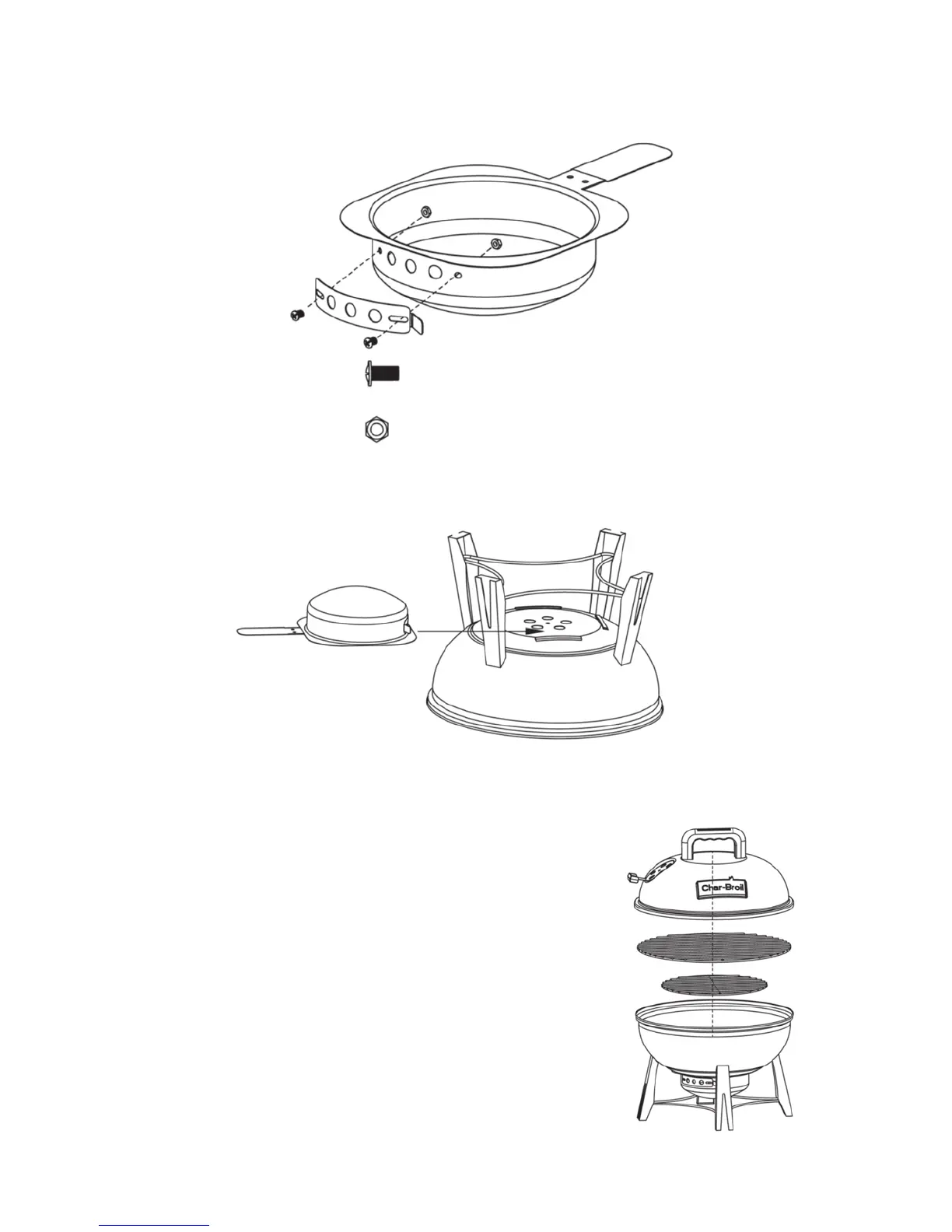

Insert the ash catcher into the bottom bowl.
Screw M4 x 10 - 2 pieces
Nut M4 - 2 pieces
Align the holes in the air vent with holes in the ash catcher. Insert two M4 x 10 screws
through the air vent ash catcher and ash catcher . Tighten two M4 nuts onto the screws.
Be careful not to over tighten nuts to allow for proper vent operation.
7
Place the charcoal grid onto the lower rim
of the bowl. Place the cooking grid onto
the upper rim of the bowl. Place the lid
onto the bowl.
11
