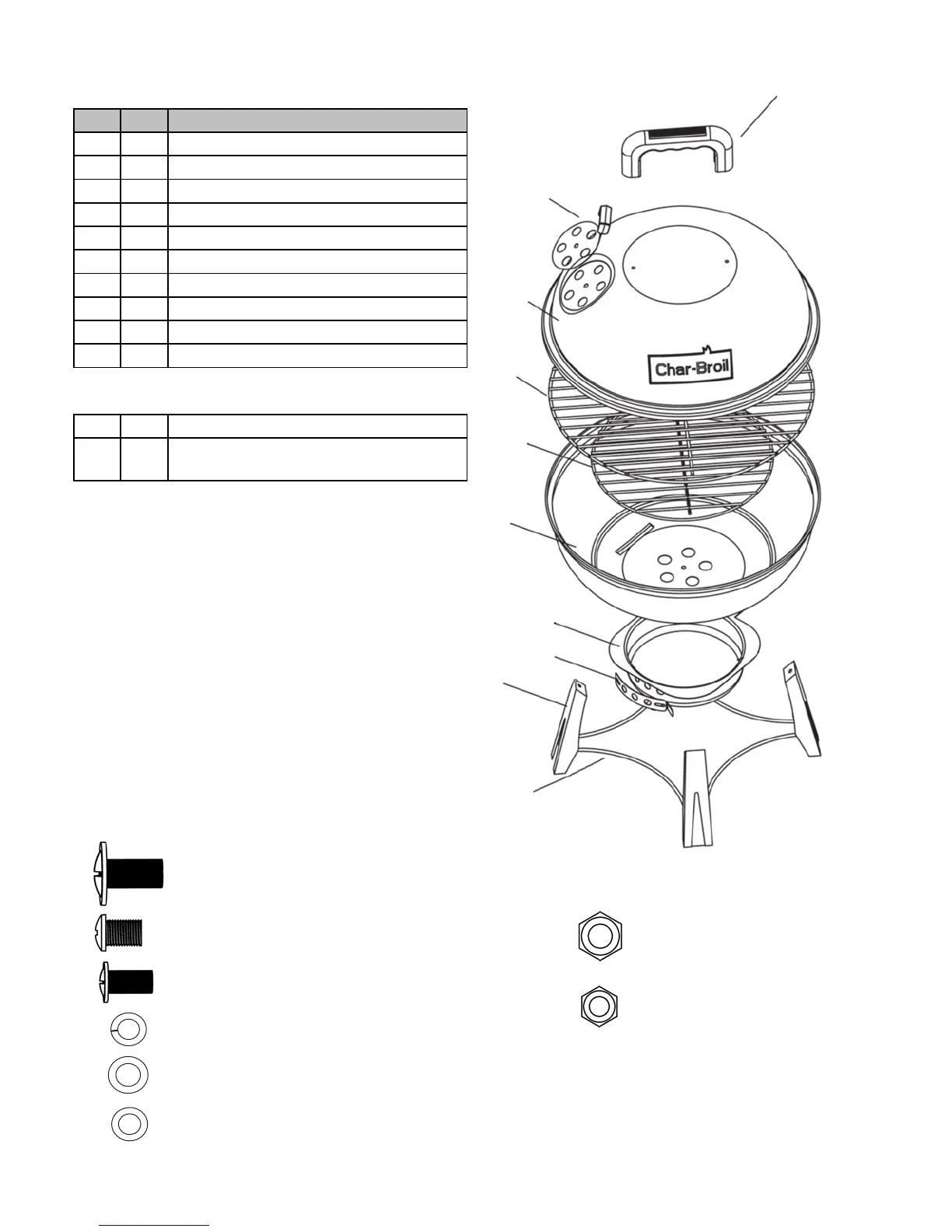

Char-Broil 150 - Grill Components and Hardware; Parts Identification Diagram; Hardware for Assembly

NUT M4 - 2 PIECES
NUT M5 - 1 PIECE
SCREW M4 X 10 - 2 PIECES
SCREW M6 X 12 - 2 PIECES
SCREW M5 X 8 - 5 PIECES
HARDWARE LIST
PARTS LIST / DIAGRAM
Key Qty Description
A 1 TOP LID
B 1 LID HANDLE
C 1 DAMPER F/ LID
D 1 FIREBOWL
E 1 ASH CATCHER
F 1 DAMPER F/ ASH CATCHER
G 4 LEG
H 1
LEG SUPPORT
I 1
COOKING GRATE
J 1
CHARCOAL GRID
NOT Pictured
… 1
HARDWARE PACK
… 1
ASSEMBLY MANUAL, ENGLISH,
SPANISH, FRENCH
B
A
C
D
E
F
G
H
I
J
8
LOCK WASHER M5 - 1 PIECE
FLAT WASHER M6 - 2 PIECE
FLAT WASHER M5 - 5 PIECE
