Char-Broil 500X - Grill Parts List; Component Identification

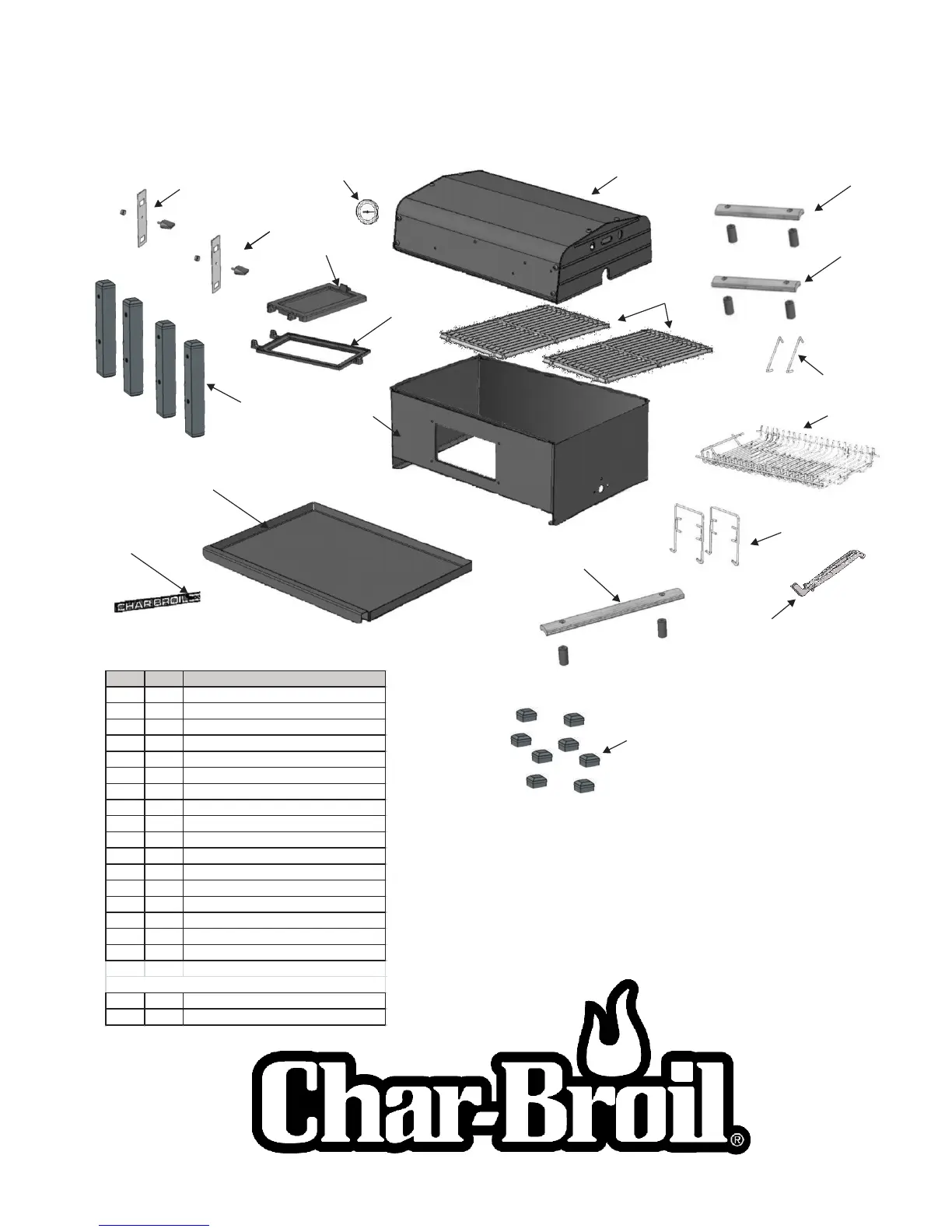

PARTS LIST
A
B
E
F
K
I
N
H
D
J
G
C
O
L
Page 3
M
Key Qty Description
A 1 LID ASSEMBLY
B 1 BOTTOM ASSEMBLY
C 1 ASH PAN
D 1 WIRE FIRE GRATE
E 1 FRONT HANDLE KIT
F 2 SIDE HANDLE KIT
G 2 COOKING GRID
H 4 LEG KIT
I 1 FRAME, CLEAN OUT DOOR
J 2 FIRE GRATE HANGER
K 2 VENT PLATE KIT
L 2 WIRE STOP, LID
M 1 GRATE LIFTER TOOL
N 1 LOGO PLATE KIT
O 1 TEMPERATURE GAUGE
P 1 DOOR, CLEAN OUT
Q 8 LEG END CAP
NOT Pictured
… 1 HARDWARE BAG
… 1 ASSEMBLY INSTRUCTION
K
K
Q
P
F
