First, pick a suitable location to work. Open the carton and slit the corners. This will give a protective surface upon which to
start the assembly. During assembly, refer to the attached Hardware List near the back of this manual.

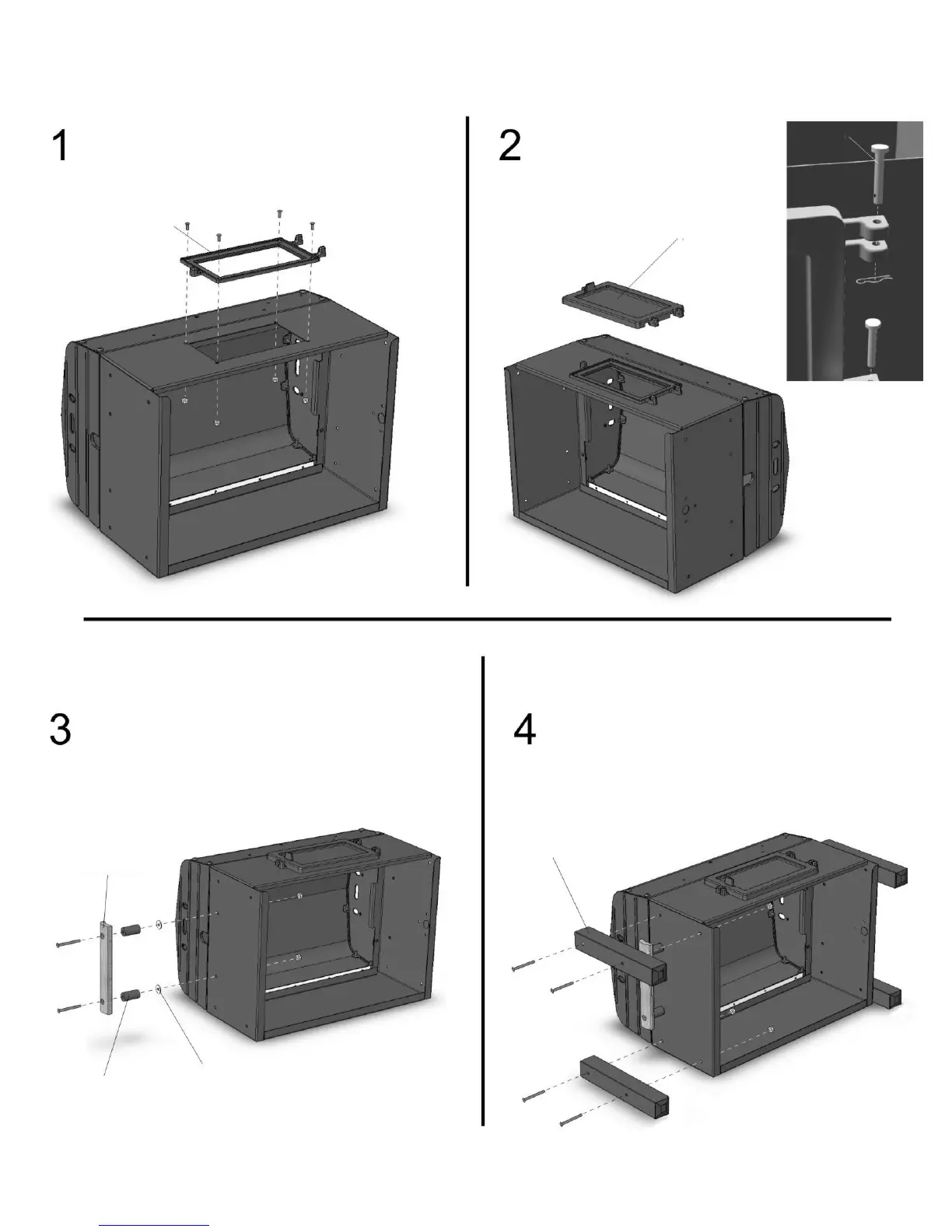

Remove the packaged parts from inside the Grill and lay the
Grill on its back. Attach Ash Door Frame to the front of Grill
Bottom using four #10-24x1/2” Flat-Head Machine Screws
and Flange Nuts.
Ash Door
Ash Door Frame
Hinge
Attach Ash Door to Frame using two
Hinge Pins and Cotter Pins.
Attach two Spacers and Side Handles to Grill Bottom
using two 1/4-20x2 ½”Machine Screws, Insulated
Washers, and 1/4-20 Flange Nuts per side.
Side Handle
Spacer
Insulated Washer
Leg
Attach four Legs using two 1/4-20x2” Machine Screws
and 1/4-20 Flange Nuts per leg.
