Char-Broil 500X - Grill Assembly - Interior Components; Installing Ash Pan and Grate Hangers; Placing Cooking Grids

Cooking Grids
Fire Grate
Tab
Fire Grate
Hanger

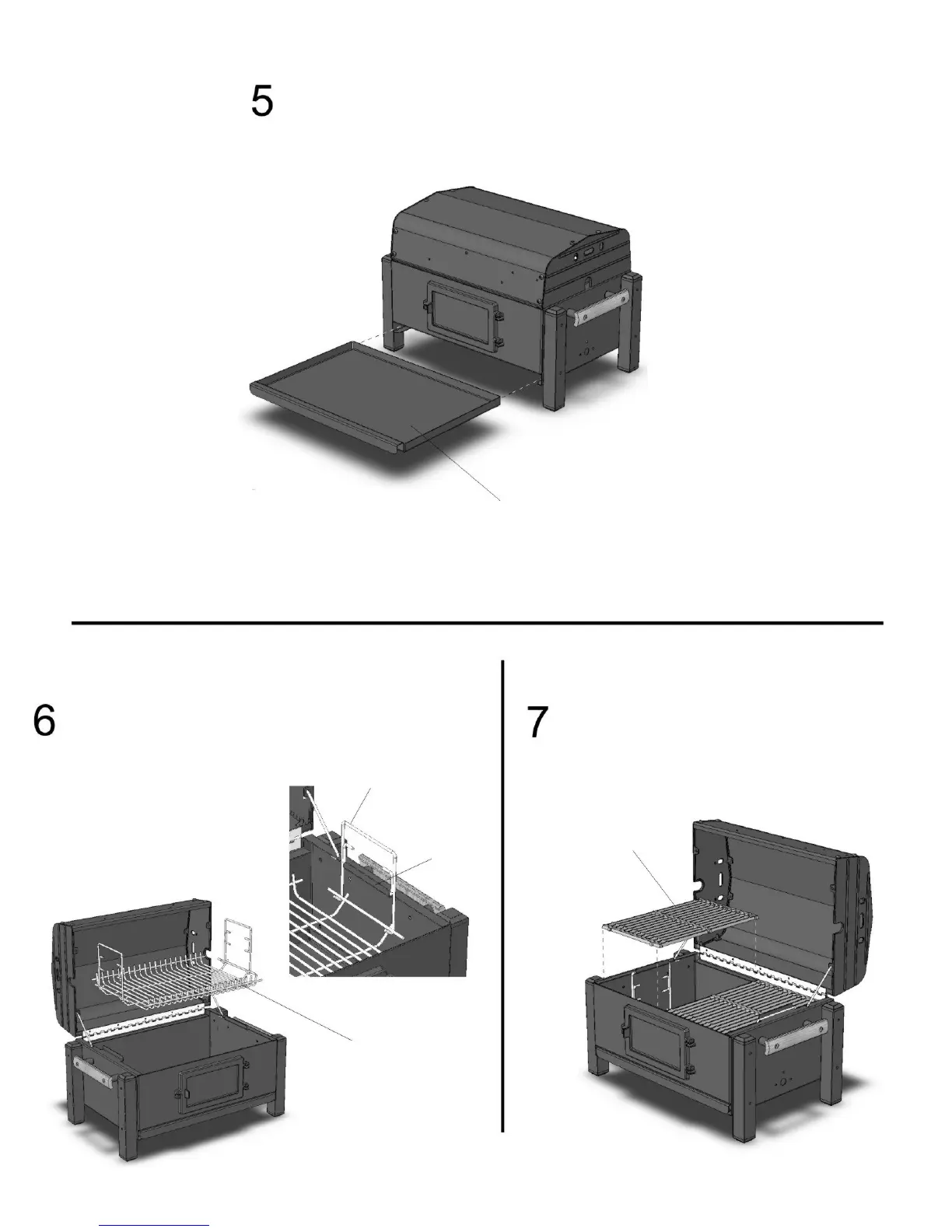

Slide Ash Pan into front of Grill Bottom.
Open Lid and attach two Fire Grate Hangers to Fire Grate
(hooks point inward toward Grate).
Lower into Grill Bottom and hang from Tabs on each side.
Ash Pan
Place Cooking Grids into Grill Bottom.
Note: use the provided Grate Lifting Tool to lift hot
Cooking Grates.
Page 5
