Char-Broil 500X - Grill Assembly - Lid and Accessories; Attaching Lid Handle and Vents; Installing Temperature Gauge and Logo Plate

Attach the Logo Plate by inserting the two pins into the
small holes on the front of the Grill Lid.
From the inside of the Lid, press the Logo Plate Clips onto
the pins until they are snug against the Lid.

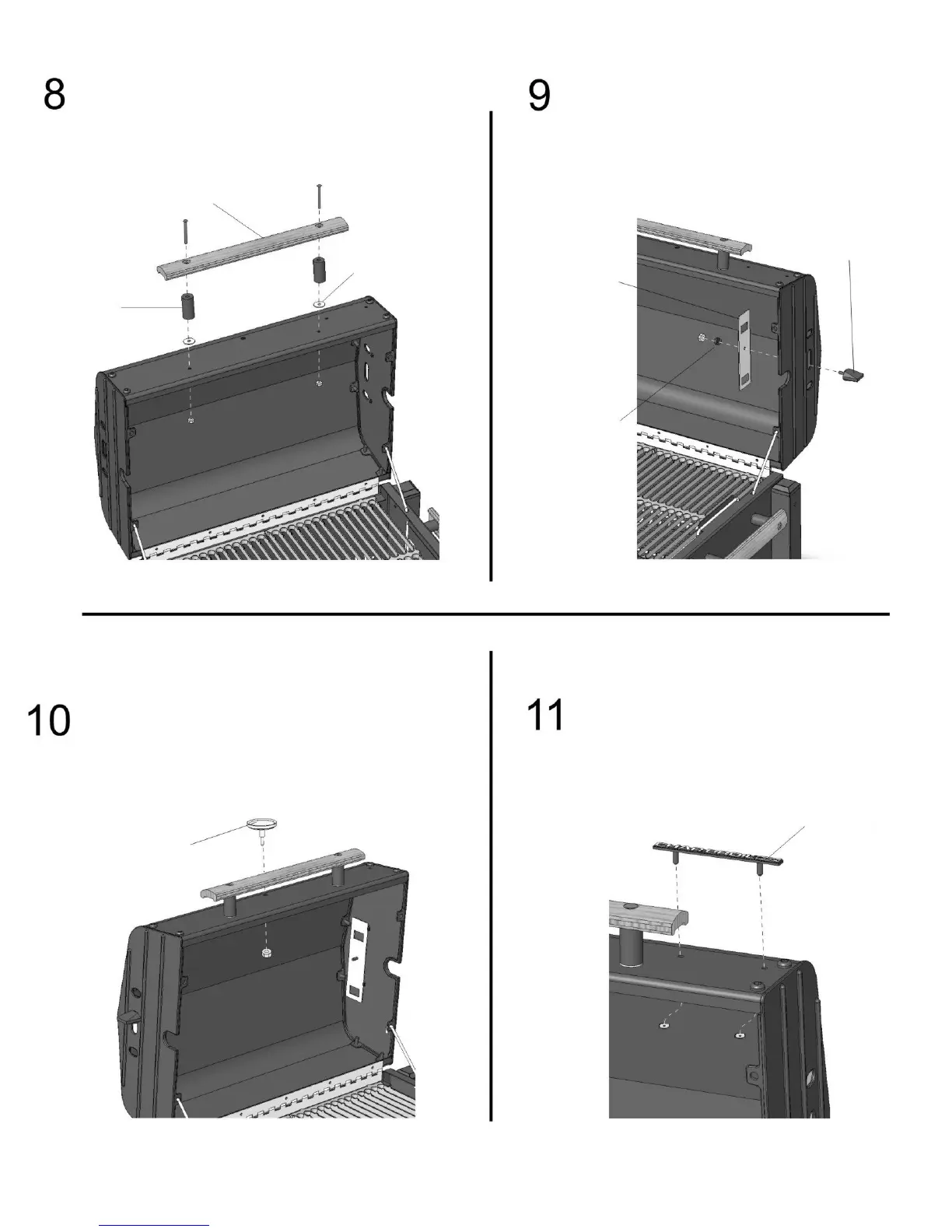

Attach two Spacers and Lid Handle to Grill Lid using two
1/4-20x2 ½”Machine Screws, Insulated Washers, and 1/4-20
Flange Nuts.
Lid Handle
Spacer
Insulated Washer
Insert Vent Knobs into side of Grid Lid from the outside.
Inside the Grill Lid, slide a Vent Plate onto the Knob stud
followed by a Vent Spring and a #10-24 Hex Nut.
Tighten just enough to allow Vent to slide freely from side to
side.
Vent Spring
Vent Plate
Vent Knob
Install Temperature Gauge by placing the stem through the
large hole in front of the Grill Lid. Attach the nut provided
until snug against the Lid.
Temperature Gauge
Logo Plate
Page 6
