ASSEMBLY GUIDE
Part Qty
Fasteners
#10-24 x 1 1/4"
GRILL Assembly
(qty 4)
screw
B1
–
Heat Shield
1
B2
–
Fire Box Assembly
1
Note: Before beginning this step of the
assembly, raise the two side lifts to their
highest position by pressing the button
at the top of the handle and pulling
upward on the handle.
B1
Firebox Mounting Brackets

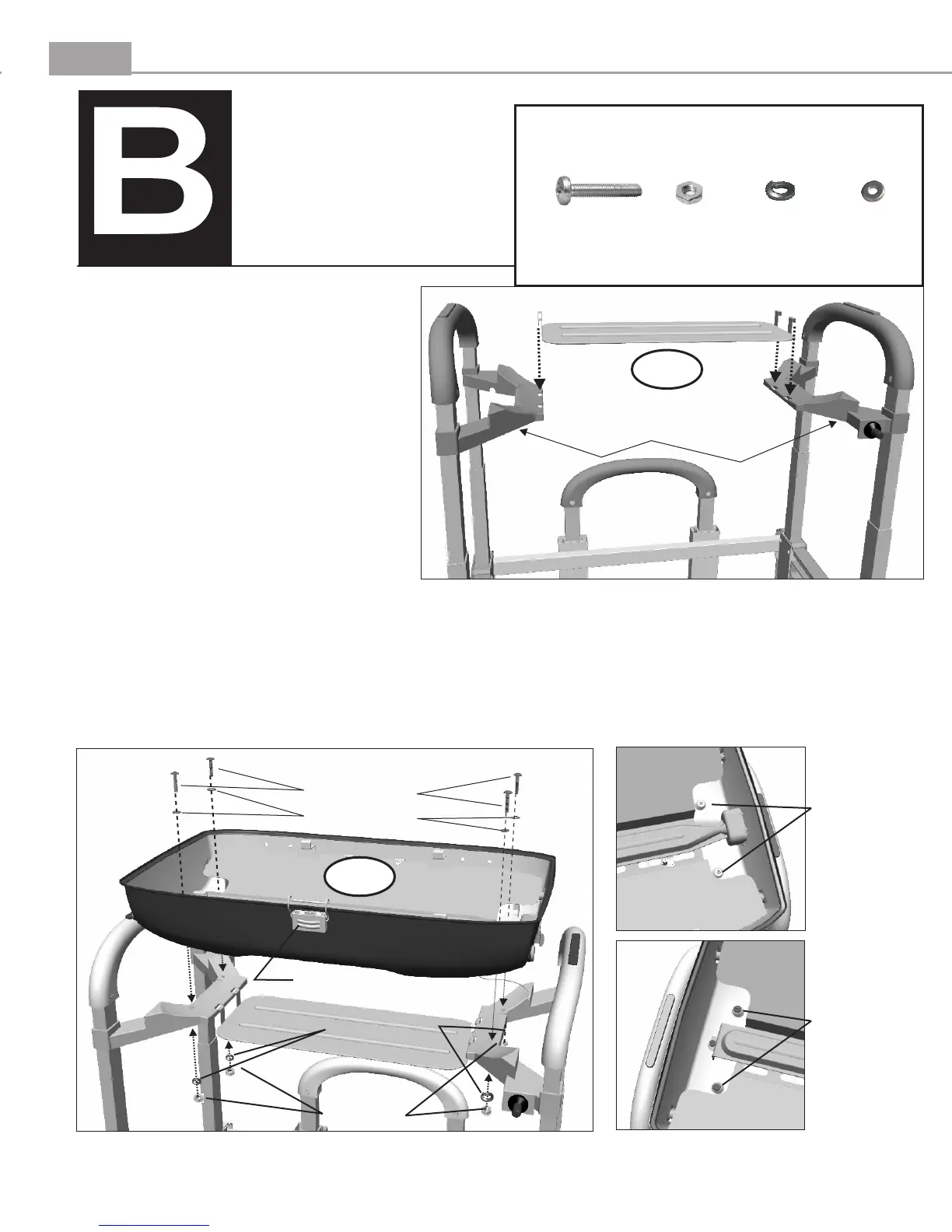

Step 1 - Install the Heat Shield(B1) to
the firebox mounting brackets by
engaging the tabs into the slots located
in the mounting brackets as shown on
the right.
Step 2 - Install the Fire Box Assembly(B2) to the cart by first placing the firebox assembly onto the
firebox mounting brackets. Be sure that the lid clasp is toward the front of the cart. Align the firebox
screw holes with the corresponding holes in the mounting brackets. Insert 4 #10-24 x 1 1/4" machine screws
and 4 fiber washers through the firebox and mounting brackets. Secure with 4 #10-24 nuts and 4 #10
lock washers from below the mounting brackets as shown below.
Right hand side
Firebox screw
holes
Lid Clasp
B2
Fiber washers
Left hand side
Firebox screw
holes
#10-24
(qty 4)
nut
#10-24 nuts
#10 Lock
(qty 4)
washer
#10 lock washers
(qty 4)
Fiber Washer
#10-24 x 1 1/4"
machine screws
To Next Page
