Char-Griller DC50 - Assembly Instructions

page 10

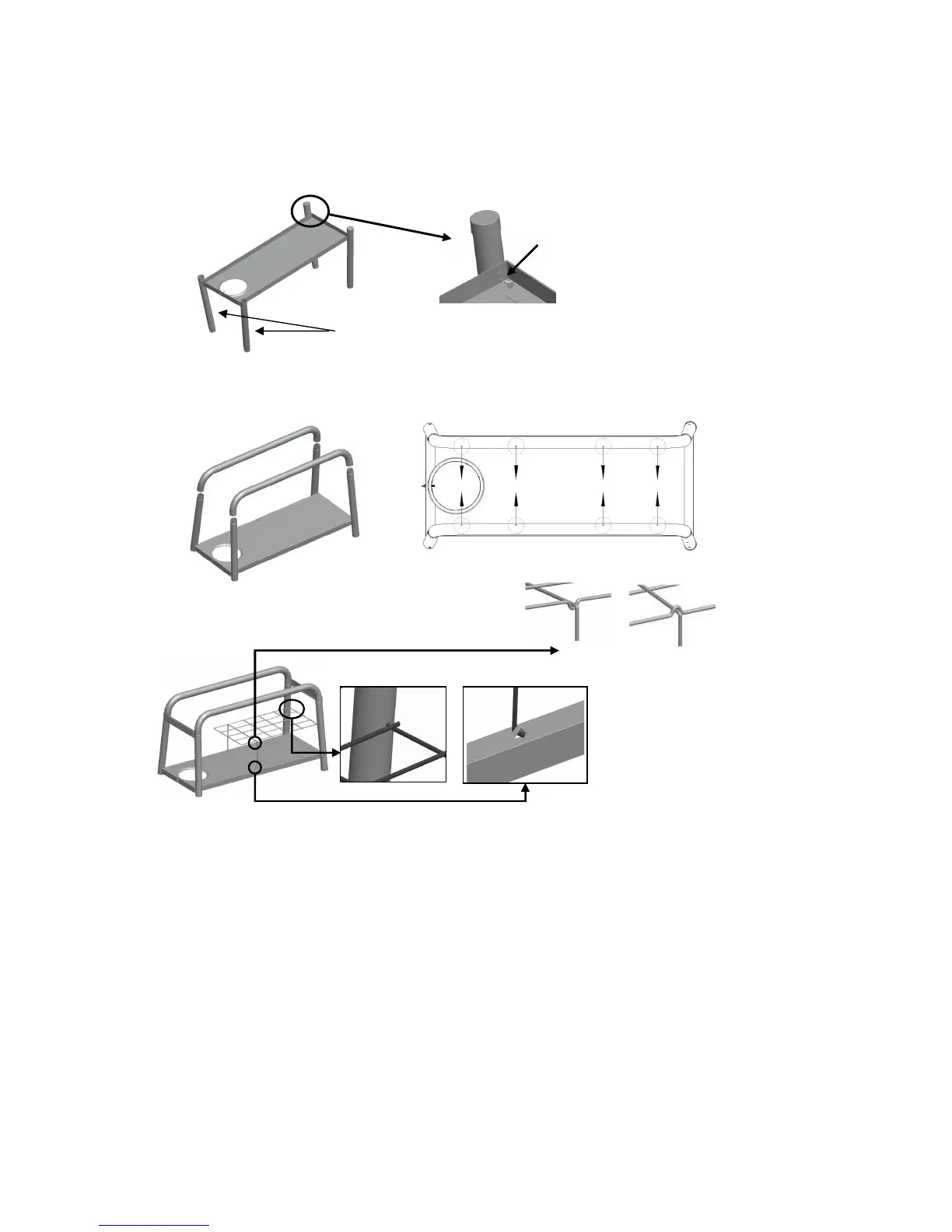

Step 1
Attach the LEFT LEGS & RIGHT LEGS to the BASE using four (4) ½” BOLTS and four (4) ¼”
LOCK WASHERS as shown. When you install the LEFT LEG & RIGHT LEG, please make sure
that the holes at the top of the LEGS are facing out.
Assembly Instructions
Step 2
Attach the LEG CROSSBAR to the frame as shown making sure that the holes on the
CROSSBAR are facing inward. See below.
Step 3
Attach BOTTOM SHELF to the LEGS (as shown below).
Lock
Washer
x
covers
decorative
part of
AXLE
