Char-Griller DC50 - Page 12

page 12

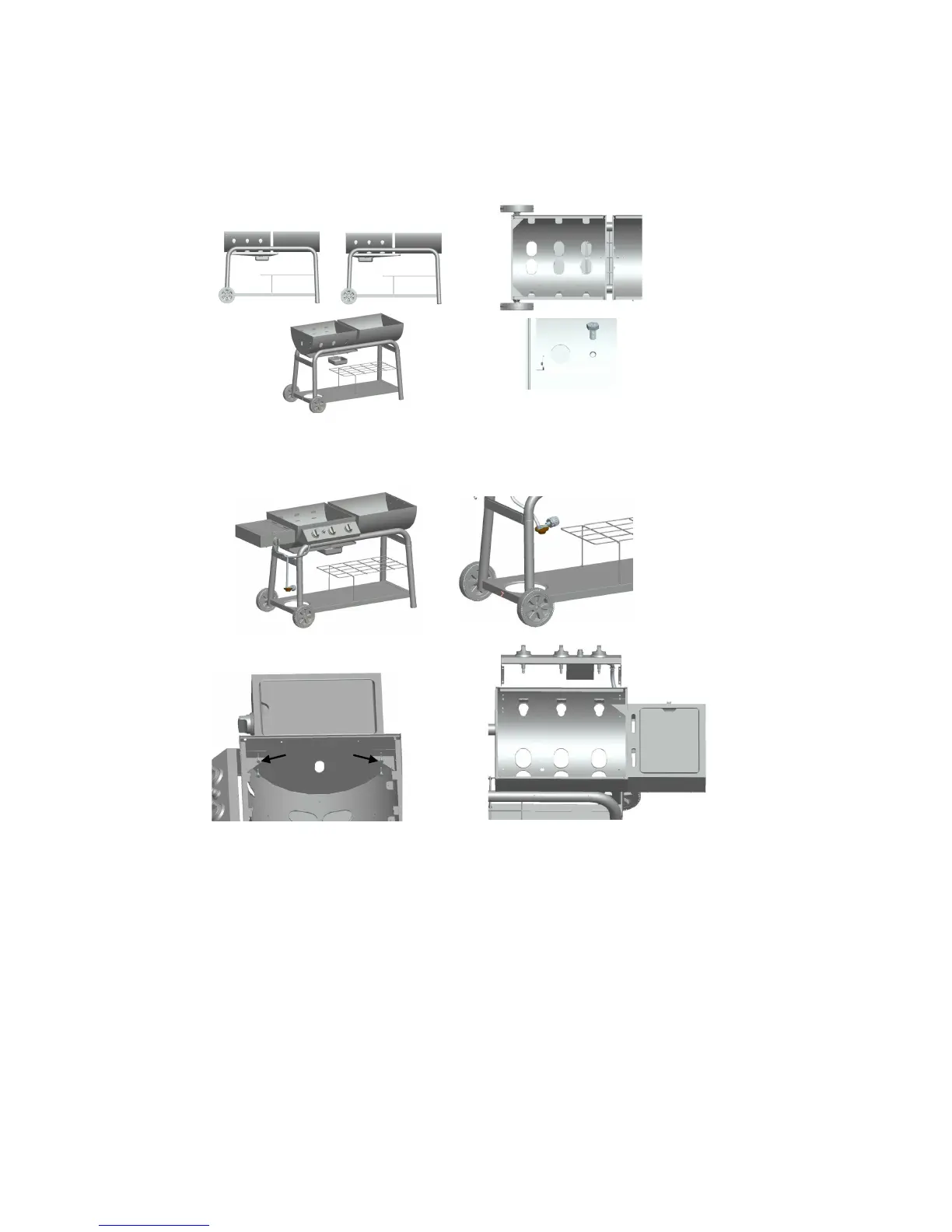

Step 7
Attach the CATCH PAN to the underside of the GRILL BODIES using two (2) ½” BOLTS as
shown. Insert the BOLTS down through the GRILL BODY and then screw into the CATCH
PAN. Make sure that the side of the catch pan marked “Wheel Side” is on the side of the
grill with the wheels. From the rear of the grill, slide the GREASE TRAY into the guides/rails
under the CATCH PAN.
X
WRONG
CORRECT
Step 8
Install the SIDE BURNER and the CONTROL PANEL to the firebox. Attach with eight (8) ½”
BOLTS and eight (8) LOCK WASHERS. From inside the GAS GRILL BODY the BOLTS will
first go through the Lock Washers then GRILL BODY and then screw into the SIDE BURNER
or CONTROL PANEL. See Figures below.
X
WRONG
HOSE
LOCATION
Note: the hose should be
on the outside of the leg
brace.
