Charder MS3400 - Scale Assembly Instructions; Assembly Steps

-
15
-

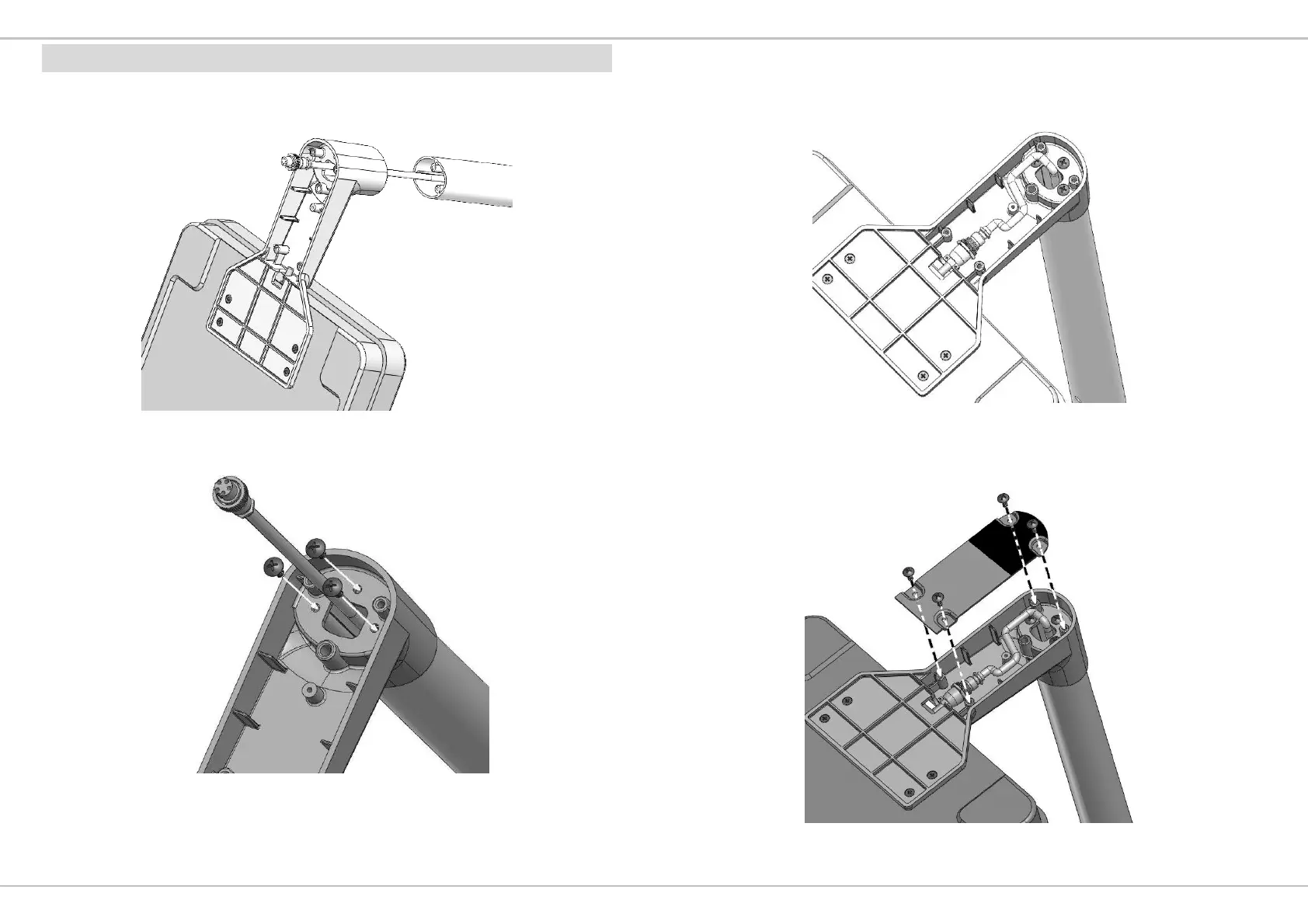

SCALE ASSEMBLY
1. Plug the column into the column seat.
2. Screw in three M4*0.7*15 screws.
-
16
-
3. Arrange the cable along the gap in the column seat.
4. Cover the bottom cover and screw in four M4*0.7*8 screws
