DG Series User Manual 5

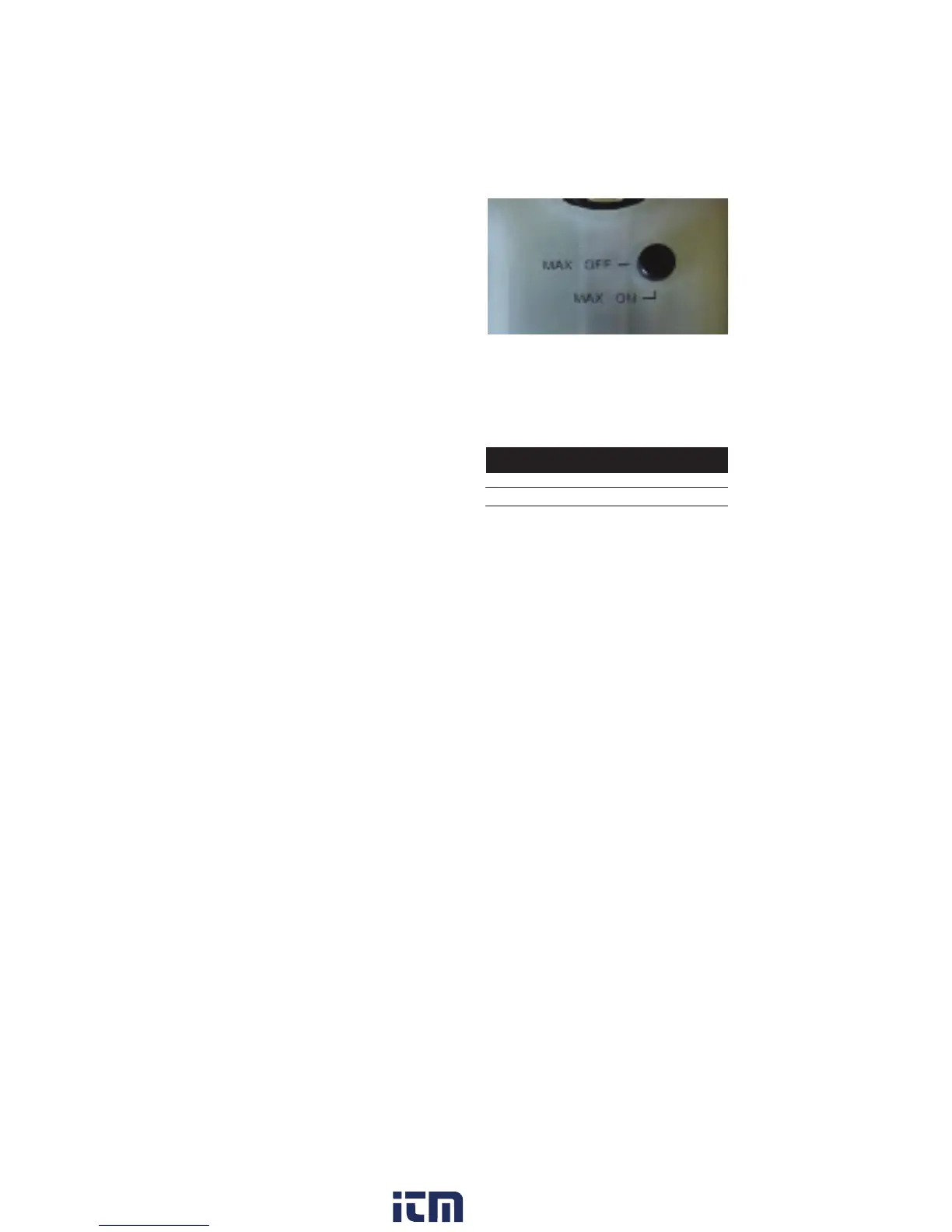

PEAK HOLD
The DG Series force gauge has a maximum hold
feature. This allows the peak force to be held after
the load is removed.
ACTIVATE PEAK HOLD
To activate this feature, rotate the knob to “MAX
ON”position.
RESET PEAK HOLD
To reset the reading, simply rotate the switch to
“MAXOFF”andthenreturnbackto“MAXON”
position. To deactivate this feature, rotate the knob
tothe“MAXOFF”position.
TEST STAND MOUNTING
The DG Series force gauge has four #10-32 female
threads for mounting to CHATILLON test stands.
Ensure the #10-32 screws are not too long, other-
wise it may bind and damage the force gauge.
The screw thread length going into the back of the
gauge should not exceed 3/8 inch.
MAINTENANCE
Gauge accuracy should be checked periodically
to ensure the gauge is within its calibration limits.
Thecalibrationcanbeveriedbyapplyingknown
weights (adjusted for local gravity) to the extension
hook. If adjustment is required, the gauge should
be returned to AMETEK for calibration.
Test Stand Adapters
Item No. Fits Tester
SPK-MT-0005 MT150, MT500
SPK-DG-TT TT Testers
