EN
| Intelect
®

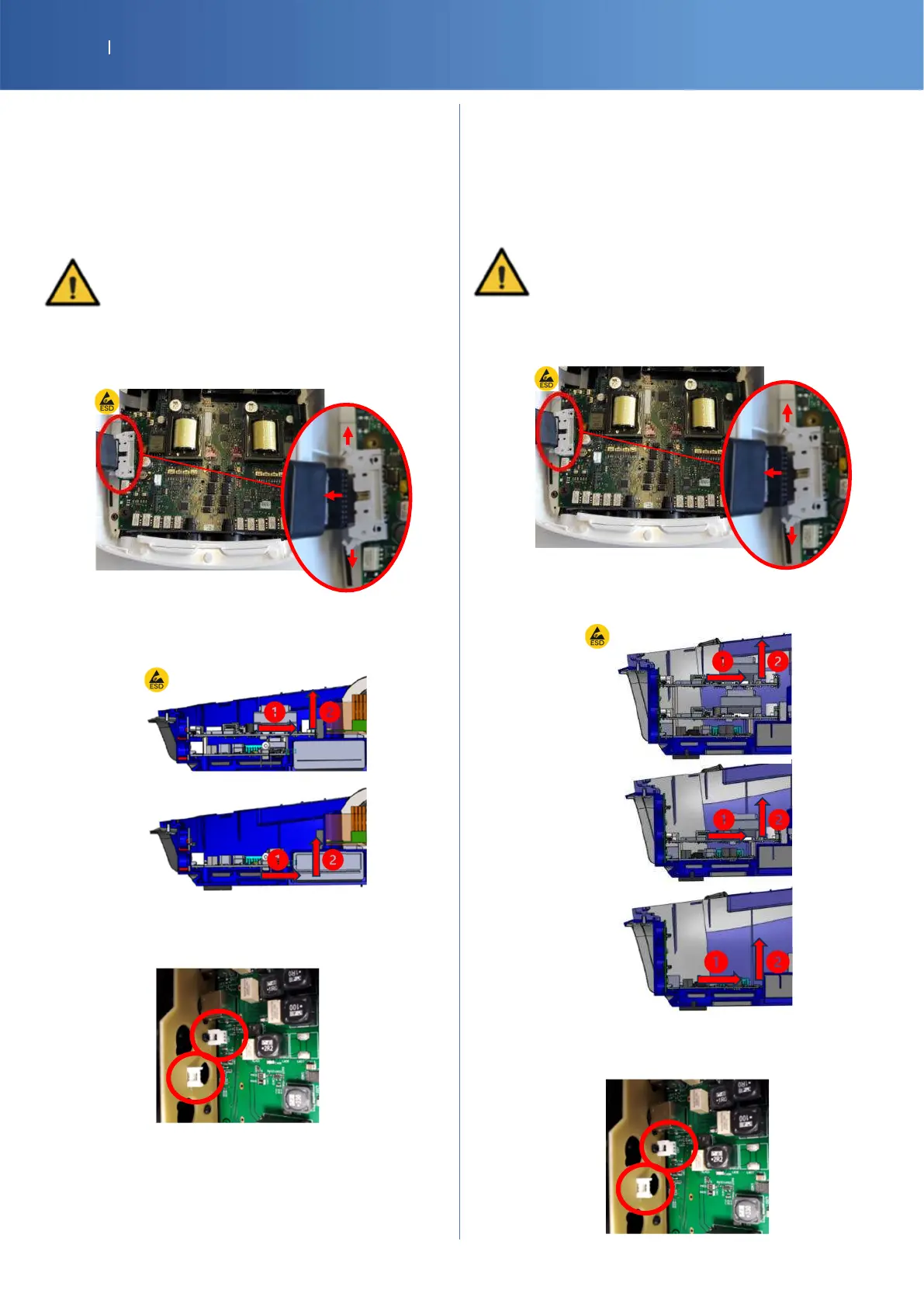

Legend 2 - Service Manual DOMESTIC 40
REPAIR OPERATION
COMBO 2 CH LOWER SUB ASSEMBLY
SP-G16-0021 IL2 STIM PCBA
SP-G16-0031 IL2 ULTRASOUND PCBA
SP-14-3798 IL2 2CH US-STIM RIBBON CABLE
G16-2011-SP MOB2 PCB METAL SPACER 18 MM
14-1043-SP M3X8 TORX SCREW x 5
Handle the PCBA carefully. Beware of not
scratching the connectors and the electronic
components (on the 2 sides of the PCB)
around the screw holes.
Disconnect the stim board
Unscrew the board (4 x Torx T10)
Remove the board in 2 steps to disconnect properly
the connector on the connector board.
Unscrew the 4 metal spacers.
Remove the board in 2 steps to disconnect properly
the connector on the connector board.
COMBO 4 CH LOWER SUB ASSEMBLY
SP-G16-0021 IL2 STIM PCBA
SP-G16-0031 IL2 ULTRASOUND PCBA
SP-14-3797 IL2 US-STIM RIBBON CABLE
G16-2011-SP MOB2 PCB METAL SPACER 18 MM
SP-14-3799 IL2 PCB METAL SPACER 33 MM
14-1043-SP M3X8 TORX SCREW x 5
Handle the PCBA carefully. Beware of not
scratching the connectors and the electronic
components (on the 2 sides of the PCB)
around the screw holes.
Disconnect the stim board
Unscrew the board (4 x Torx T10)
Remove the board in 2 steps to disconnect properly
the connector on the connector board
Unscrew the 4 metal spacers between each board.
Remove the board in 2 steps to disconnect properly the
connector on the connector board.
