Chattanooga Intelect Legend 2 - Applicator

EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Legend 2 - Service Manual DOMESTIC 72
EXPLODED VIEWS and SERVICE PART LISTS

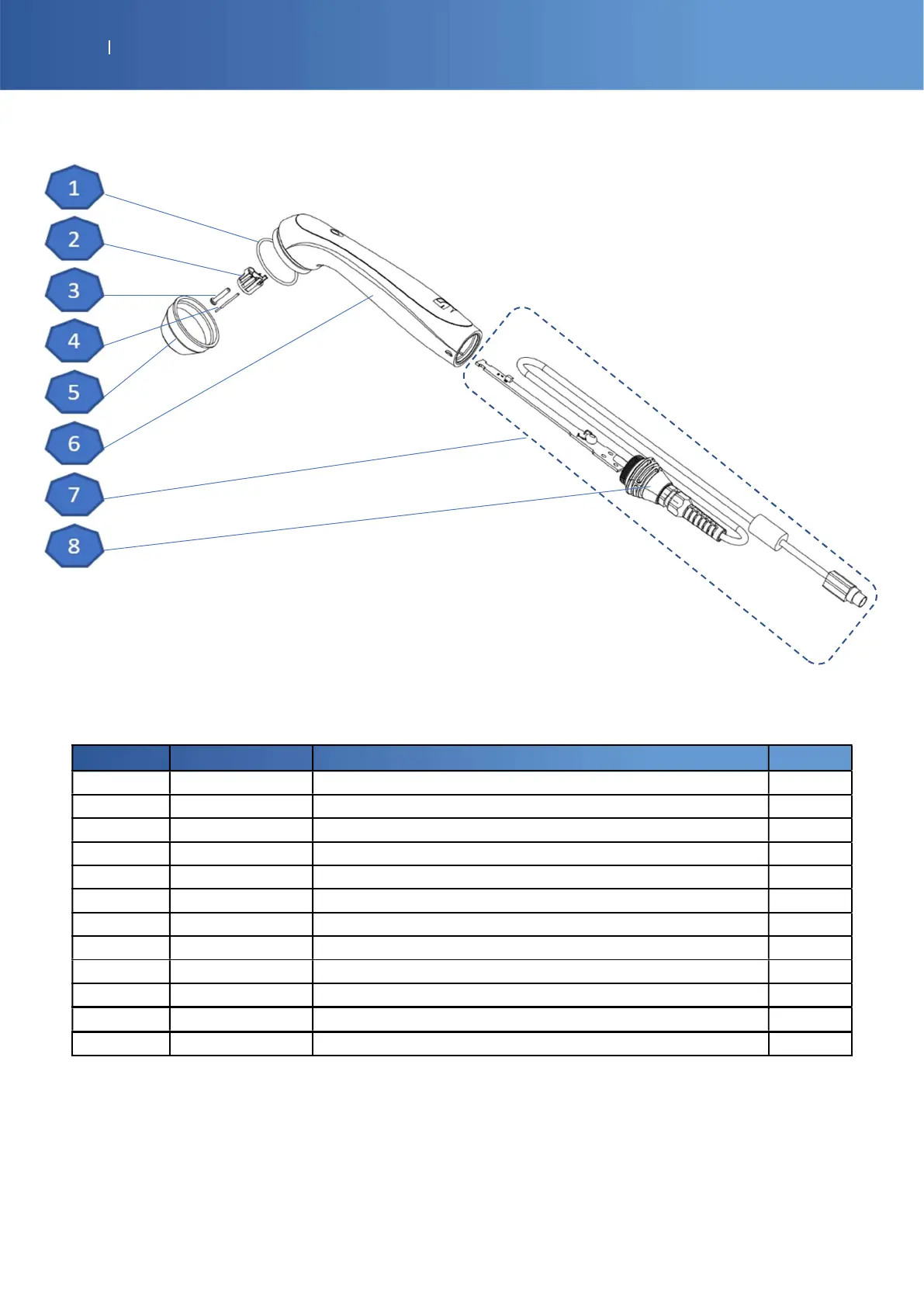

9.4. US APPLICATOR
ITEM N° Service part n° Description Qty
1
28091-SP SERVICE PART G16 US APPLICATOR O RING
1
2
27040-SP2 SERVICE PART G16 US APPLICATOR PROBE HOLDER x5
1
3
27138-SP SERVICE PART SCREW M3X16MM PAN HD PHIL PLT x5
1
4
14-1085-SP SERVICE PART G16 US APPLICATOR PROBE SPRING x5
1
5*
14-1060-SP SERVICE PART G16 US APPLICATOR TRANSDUCER ASSY 1 CM2
1
-*
14-1061-SP
SERVICE PART G16 US APPLICATOR TRANSDUCER ASSY 2 CM2
1
-*
14-1062-SP
SERVICE PART G16 US APPLICATOR TRANSDUCER ASSY 5 CM2
1
-*
14-1063-SP
SERVICE PART G16 US APPLICATOR TRANSDUCER ASSY 10 CM2
1
6
27039-SP2 SERVICE PART GRIP OVERMOLD ASSY 10CM BLACK
1
7*
G16-9951-SP SERVICE PART G16 US SMALL APPLICATOR CABLE + PCBA ASSY
1
-*
G16-9952-SP SERVICE PART G16 US BIG APPLICATOR CABLE + PCBA ASSY
1
8
27108-SP SERVICE PART G16 US APPLICATOR ADAPTATOR BLACK
1
* Change this part implies a calibration and must be performed only by a repair center trained and
equipped with a US power meter.
