FINAL TEST

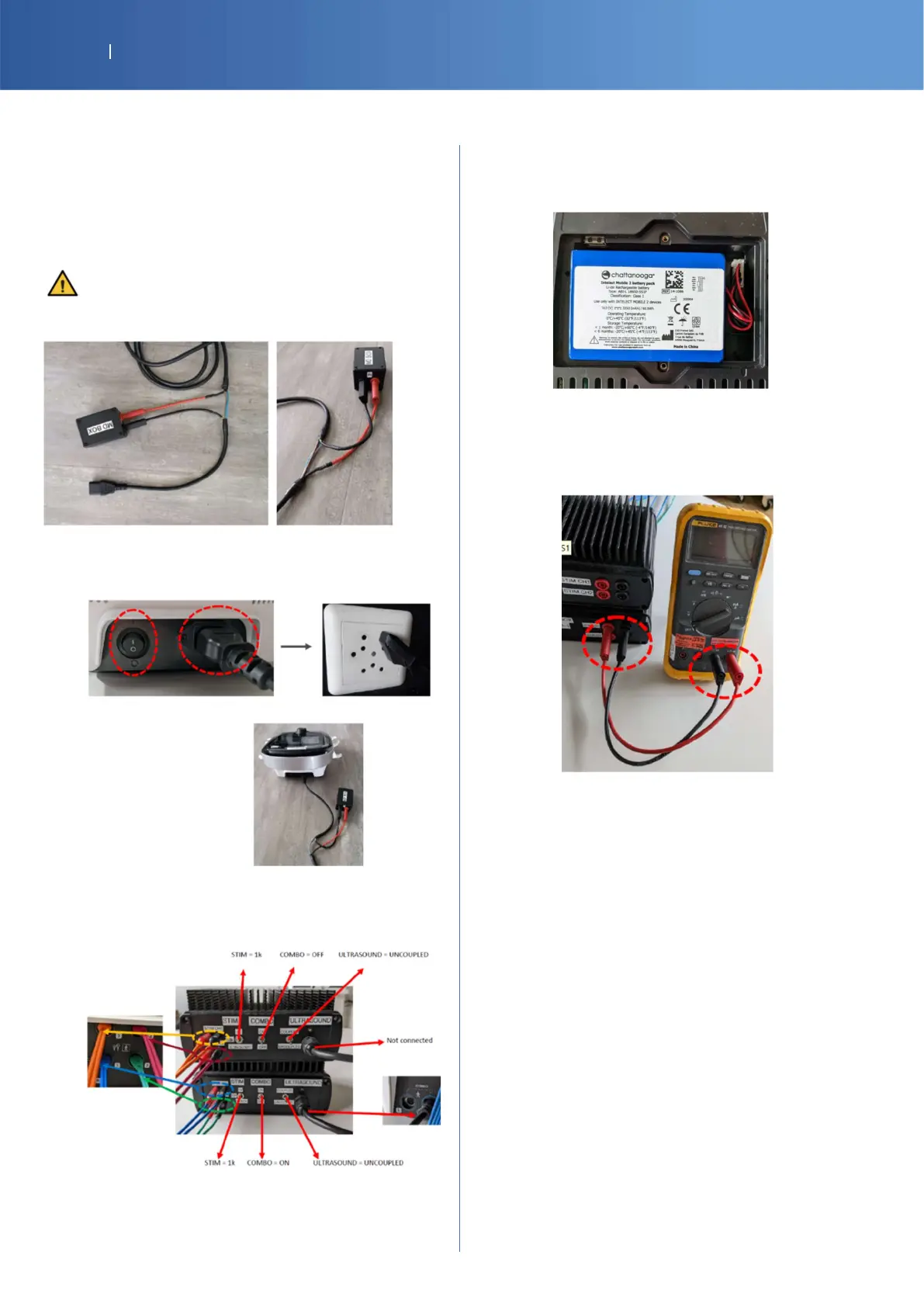

8.2. Setup for final test
• Connect the 1st MD Box between the red banana
cable from the Custom power cord to the IN red
connector of the MD Box and the black banana
cable from the Custom power cord to the IN black
connector of the MD Box
!! Always leave the 1st MD BOX connected to the
Custom power cord !!
• Verify that the power switch is OFF. Then,
connect the power cable between the device and
the main.
• Connections between the G16 Test Load and the
Device and setup of Test Load
Install the battery into the battery cavity of the
device.
Connect the STIM CH1 on the back of the G16
Test Load to the multimeter with a 1 red and 1
black banana cable.
