EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Legend 2 - Service Manual DOMESTIC 47

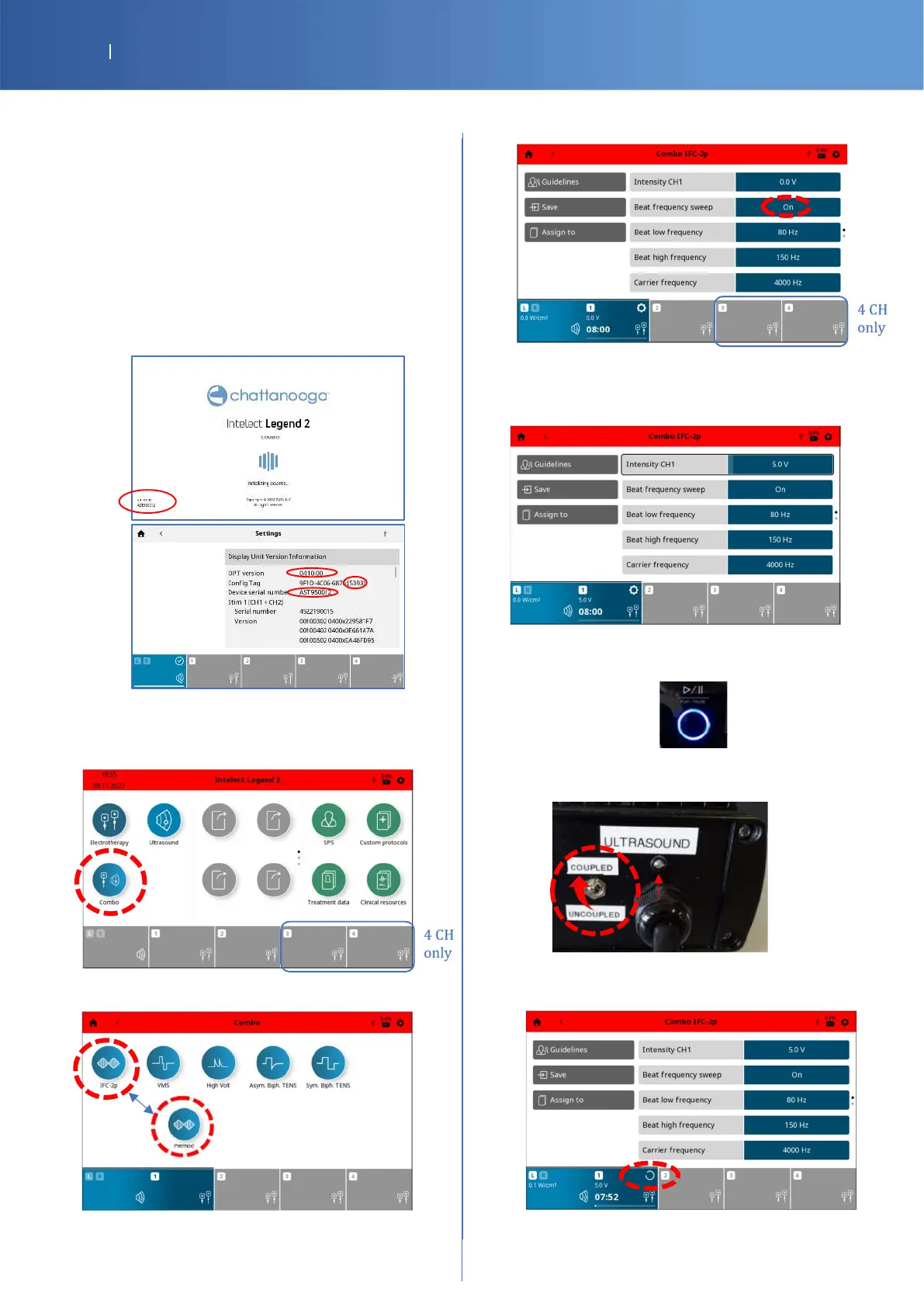

FINAL TEST
8.3. FINAL TEST INTELECT LEGEND 2
Use a test US applicator
The Stim cables must be connected on a load (1kΩ)
Use the G16 test load box (PN 14-9706-2)

Print the tracker sheet (Page 61)

Note on this tracker sheet the Serial
number, the Config tag and the Software version :
§1 ,2 &3 (on the boot screen or in Settings /Display
Unit Version Information (Page 20))
Combo and User Interface
 Press the “Combo” icon.
 The following screen is displayed, then, press on
“IFC-2p” For INTL or “Premod” for DOM
 Press “Beat frequency sweep” to obtain ON.
(12-5001 as illustration picture)
 Select the field intensity and increase the value
with the knob until 5V, then
 Press the “Play” button.
 Wait 5 seconds and Set the G16 Test Load switch
ULTRASOUND to “COUPLED”
 You should have the CH1 status channel
“Running”.
