EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Legend 2 - Service Manual DOMESTIC 63
EXPLODED VIEWS and SERVICE PART LISTS
9.1. INTELECT LEGEND 2

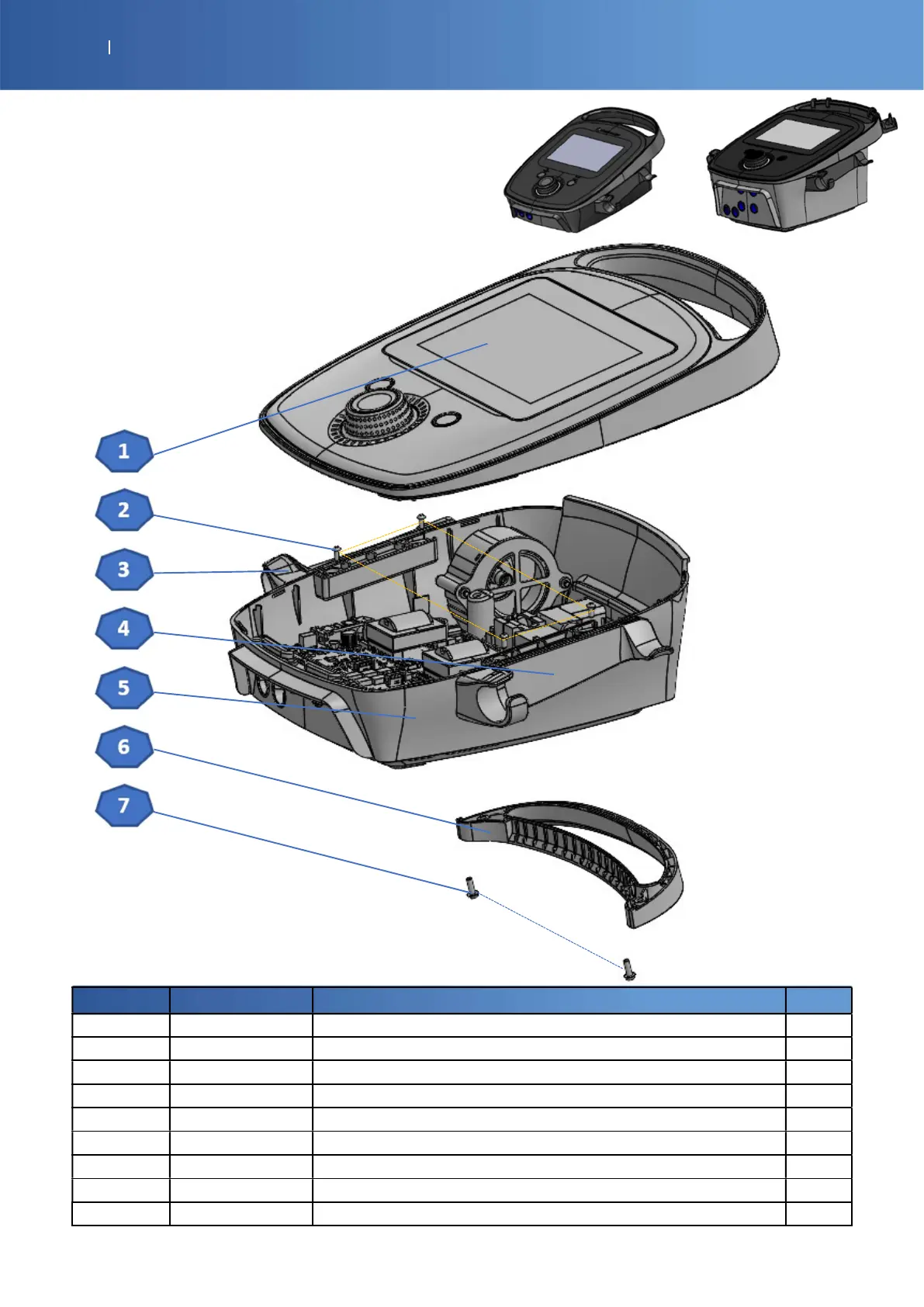

ITEM N° Service part N° Description Qty
1 REFER P 65 INTELECT LEGEND 2 TOP ASSEMBLY -
2 14-1043-SP SERVICE PART M3X8 TORX SCREW x 5 1
3 G16-4181-SP SERVICE PART MOB2 APPLICATOR HOLDER LEFT W 4
4 G16-4171-SP SERVICE PART MOB2 APPLICATOR HOLDER RIGHT W 1
5 REFER P 67 INTELECT LEGEND 2 LOWER ASSEMBLY COMMON PARTS -
- REFER P 69 INTELECT LEGEND 2 LOWER ASSEMBLY 2CH -
- REFER P 71 INTELECT LEGEND 2 LOWER ASSEMBLY 4 CH -
6 G16-4101-SP SERVICE PART G16 DEVICE HANDLE INTERNAL BLACK 1
7 14-1045-SP SERVICE PART M4X12 TORX SCREW x 5 2
