EXPLODED VIEWS AND SERVICE PARTS LISTS
EN
| Intelect
®
Legend 2 - Service Manual DOMESTIC 64
EXPLODED VIEWS and SERVICE PART LISTS

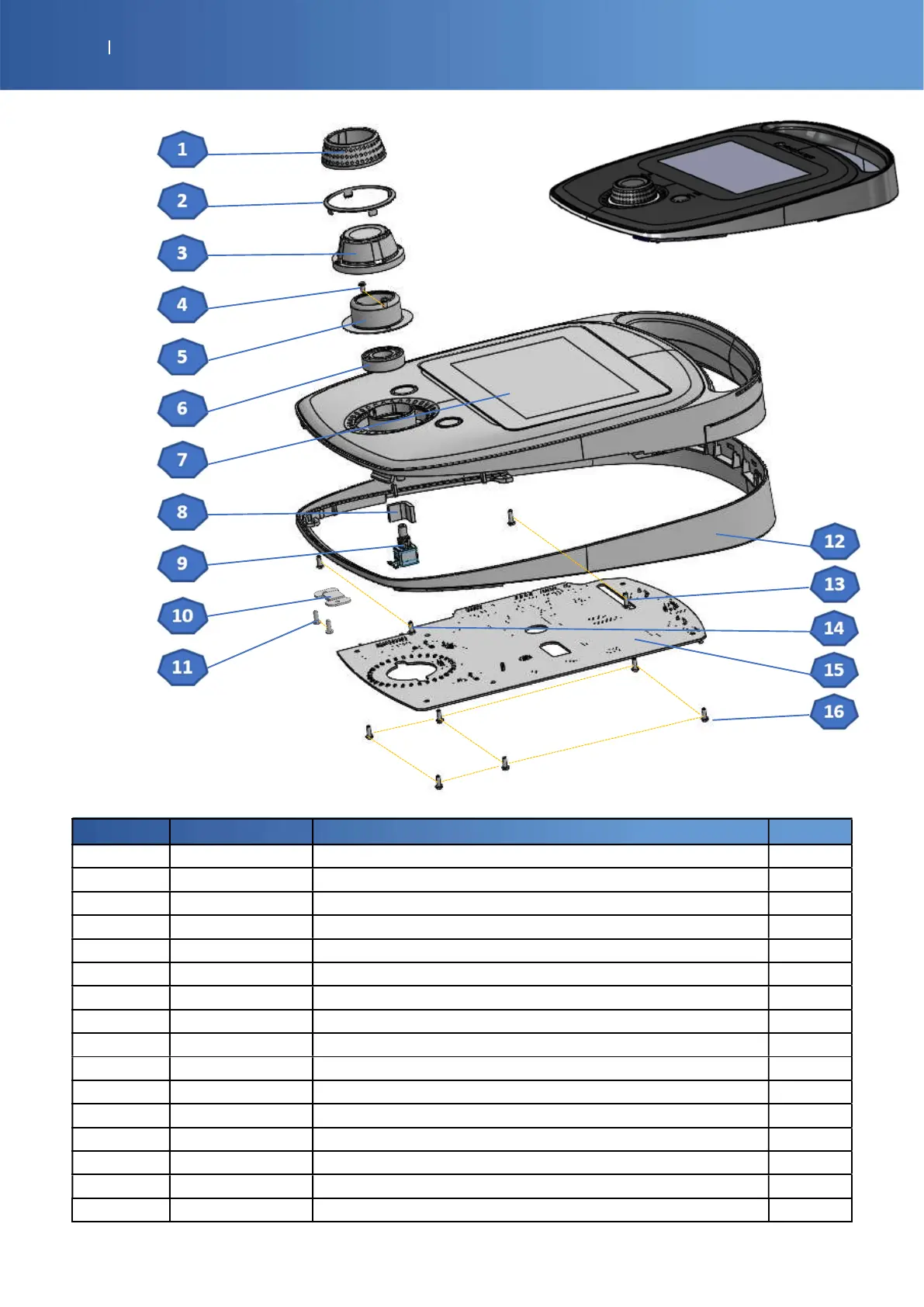

9.2. INTELECT LEGEND 2 TOP ASSEMBLY
ITEM N° Service Part Description Qty
1 G16-4311-SP SERVICE PART MOB2 KNOB RUBBER BLACK 1
2 G16-4041-SP SERVICE PART MOB2 KNOB EXTERNAL RING SILVER 1
3 G16-4031-SP SERVICE PART MOB2 KNOB BODY BLACK 1
4 14-1040-SP SERVICE PART KB30X6 PLASTIC TORX SCREW x 5 2
5 SP-G16-1081 SERVICE PART G16 BEARING HOLDER 1
6 SP-14-1021 SERVICE PART G16 BEARING KNOB 1
7 SP-12-5002 SERVICE PART IL2 DISPLAY TOP SUB ASSEMBLY 1
8 SP-14-1036 SERVICE PART G16 ENCODER FOAM 25MM x5 1
9 14-1031-SP SERVICE PART ENCODER GRAYHILL 62AG11-L0-020C 1
10 SP-G16-1111 SERVICE PART G16 ENCODER BRACKET 1
11 14-1041-SP SERVICE PART KB30X8 PLASTIC TORX SCREW x 5 2
12 G16-4011-SP SERVICE PART MOB2 DEVICE EXTERNAL SILVER 1
13 14-1051-SP SERVICE PART KB30X8 PLASTIC TORX SCREW x 5 2
14 14-1041-SP SERVICE PART KB30X8 PLASTIC TORX SCREW x 5 2
15 SP-G16-0011 SERVICE PART IL2 CONTROL PCBA 1
16 14-1043-SP SERVICE PART M3X8 TORX SCREW x 5 6
