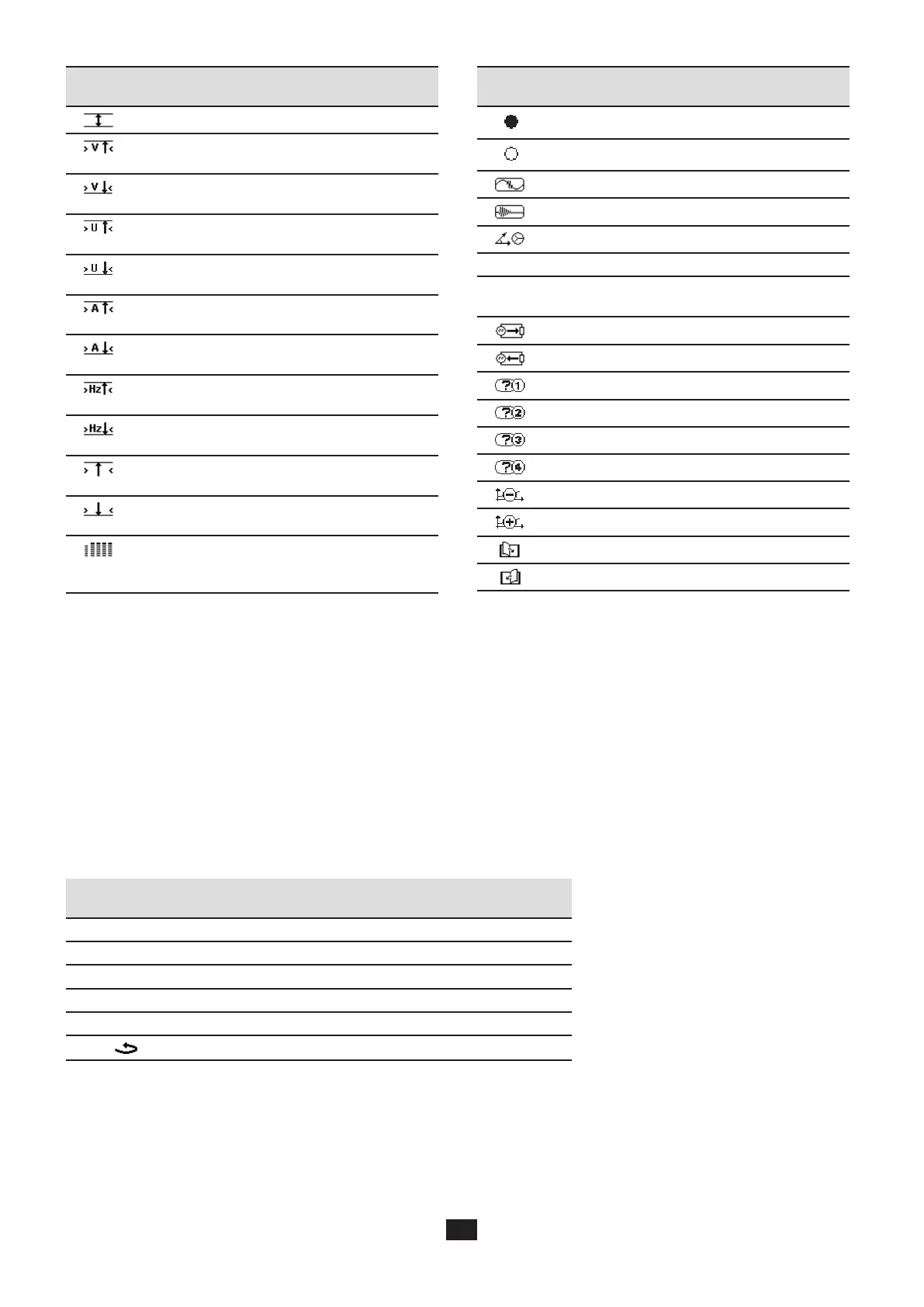

Icons Designation
Display of mean values and extrema.
Move the cursor to the first occurrence of the
maximum phase-to-neutral voltage.
Move the cursor to the first occurrence of the
minimum phase-to-neutral voltage.
Move the cursor to the first occurrence of the
maximum phase-to-phase voltage.
Move the cursor to the first occurrence of the
minimum phase-to-phase voltage.
Move the cursor to the first occurrence of the
maximum current.
Move the cursor to the first occurrence of the
minimum current.
Move the cursor to the first occurrence of the
maximum instantaneous frequency.
Move the cursor to the first occurrence of the
minimum instantaneous frequency.
Move the cursor to the first occurrence of the
maximum of the measurement displayed.
Move the cursor to the first occurrence of the
minimum of the measurement displayed.
Simultaneous display of all voltage and current
measurements (RMS, DC, THD, CF, PST, PLT,
FHL, FK).
Icons Designation
Select all items.
Unselect all items.
Transient mode.
Inrush current mode.
Display of Fresnel diagram of the signals.
>t=0<
Move cursor to transient triggering time.
>t=-T<
Move the cursor to one signal period before the
triggering date of the transient.
Energies consumed by the load.
Energies generated by the load.
Page screen 1 of the help function.
Page screen 2 of the help function.
Page screen 3 of the help function.
Page screen 4 of the help function.
Previous configuration.
Next configuration.
Previous page screen.
Next page screen.
2.5. KEYPAD KEYS
2.5.1. FUNCTION KEYS (YELLOW KEYS)
These 6 keys activate the function or tool represented by the corresponding icon on the screen.
2.5.2. NAVIGATION KEYS
A block of 4 arrow keys, a select key and a return key are used for navigation in the menus.
Item Function
Up direction or navigation key.
Down direction or navigation key.
Right direction or navigation key.
Left direction or navigation key.
Confirms the selection.
Return key.
To Next Page
