12

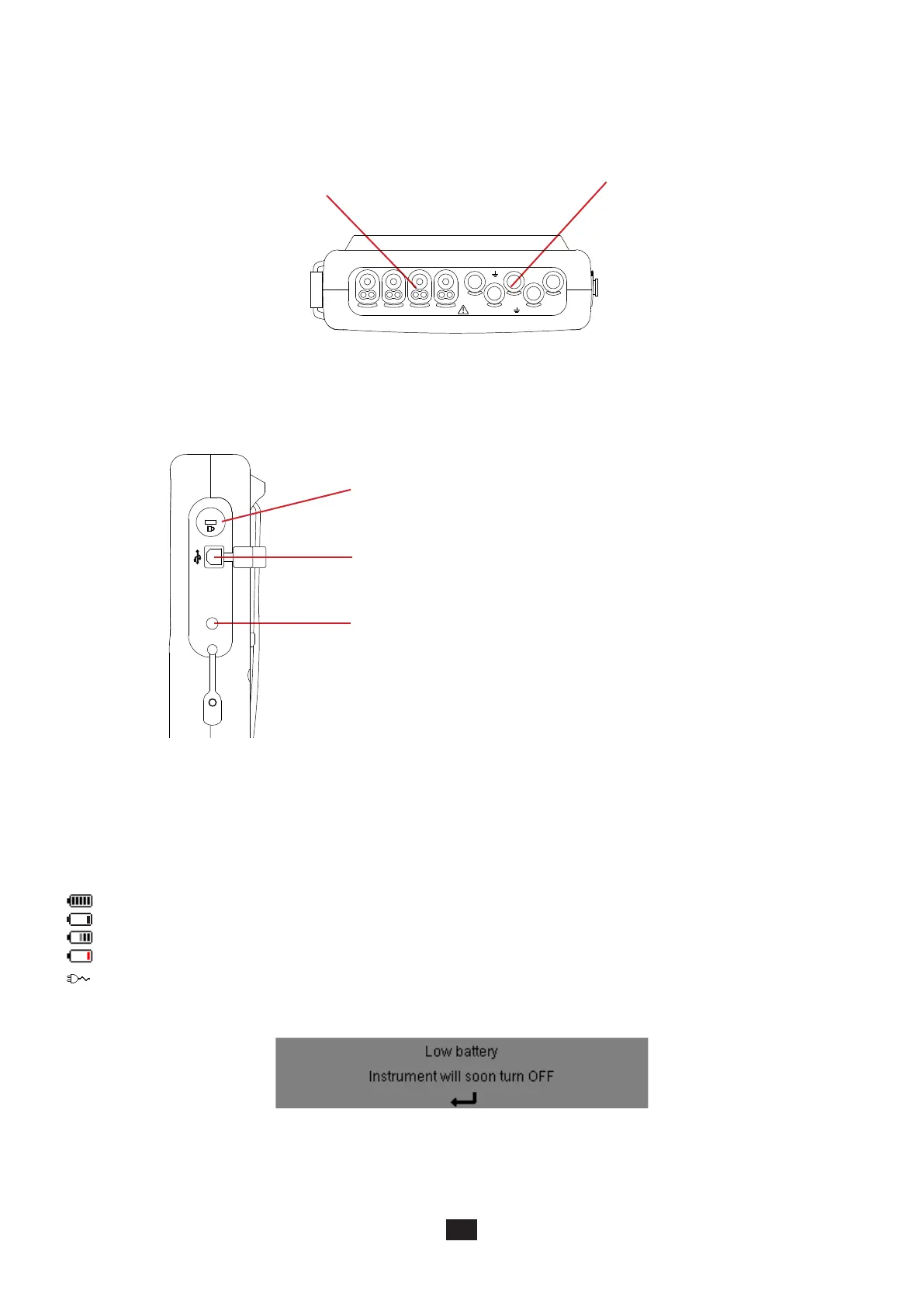

2.6. CONNECTORS
2.6.1. CONNECTION TERMINALS
Located on the top of the device, these connectors are distributed as follows:
Figure 3: the connection terminals
2.6.2. SIDE CONNECTORS
Located on the right side of the device, these connectors are used as follows:
4 current input terminals for current sensors (MN clamp, C
clamp, AmpFLEX™, PAC clamp, E3N clamp, etc.).
5 voltage input terminals.
USB connector. For connection to a PC.
Mains power connector: Recharges the battery and allows operation on mains
power.
Figure 4: the side connectors
2.7. POWER SUPPLY
The battery icon in the top right corner of the screen shows the battery level. The number of bars is proportional to the charge level.
Battery charged.
Low battery.
Mobile bars: battery charging.
A red bar: the condition of the battery is unknown because it has never been fully charged.
The device is connected to mains without the battery.
When the battery level is too low, the following message is displayed:
Press
to confirm the information. If you do not connect the device to mains, it switches itself off one minute after this message.
It is therefore necessary to start charging it as soon as possible.
L1/A
L2/B
L3/C
N/D
1000V CAT III
N/D
L1/A
L2/B
L3/C
600V CAT IV
E/GND
Theft-prevention device. It is used to secure the device with padlock.
