1.1 THE SWITCH
The switch has six positions. To access the , , , , , functions,
set the switch to the desired function. Each setting is confirmed by an audible
signal. The functions are described in the table below.

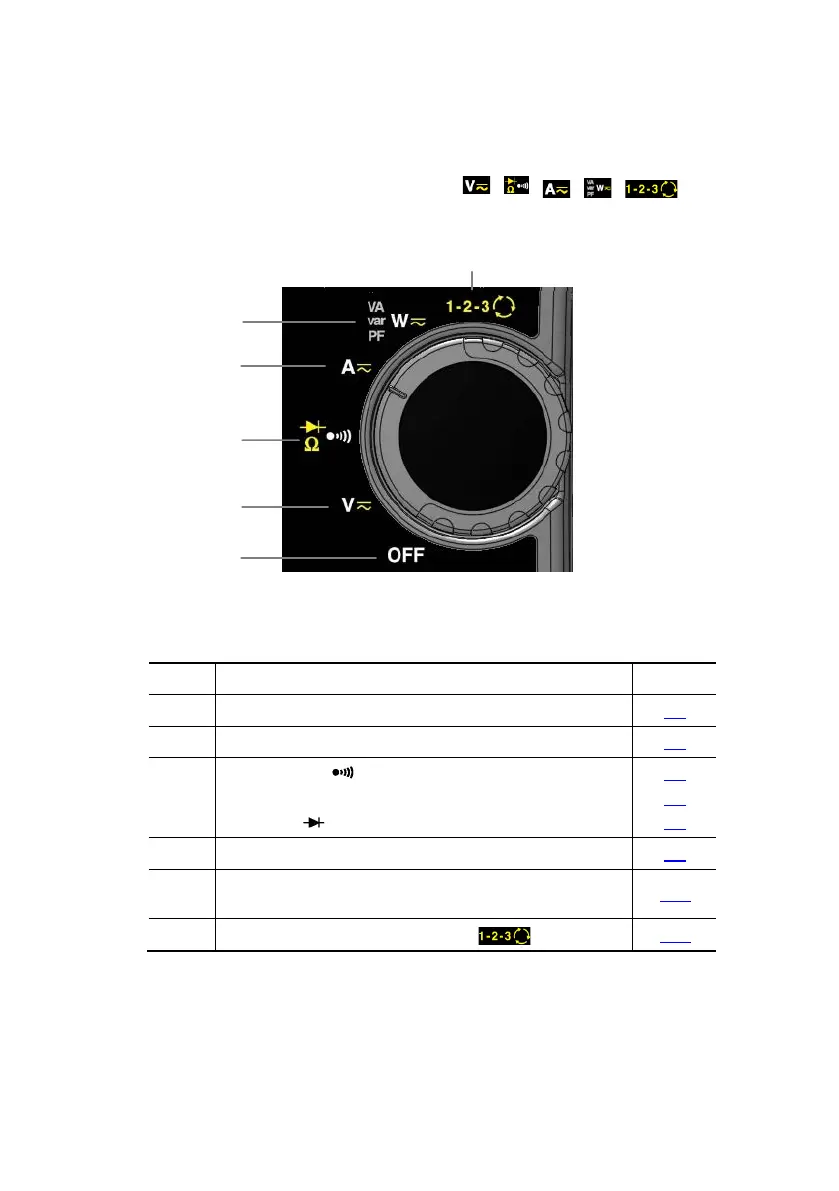

Figure 2 : the switch
Item Function See §
1 OFF mode – Switches the clamp multimeter off 3.3
2 AC, DC, AC+DC voltage measurement (V) 3.5
3 Continuity test
Resistance measurement Ω
Diode test
3.6
3.7
3.8
4 AC, DC, AC+DC current measurement (A) 3.9
5 Power measurements (W, var, VA) and calculation of the
power factor (PF) AC, DC, AC+DC
3.11
6
Indicator of the order of the phases
3.12
1
2
3
4
5
6
