14
Installing the power adapter(s)
1.
Attach the DC jack of the adapter and plug into the appliance.
2.

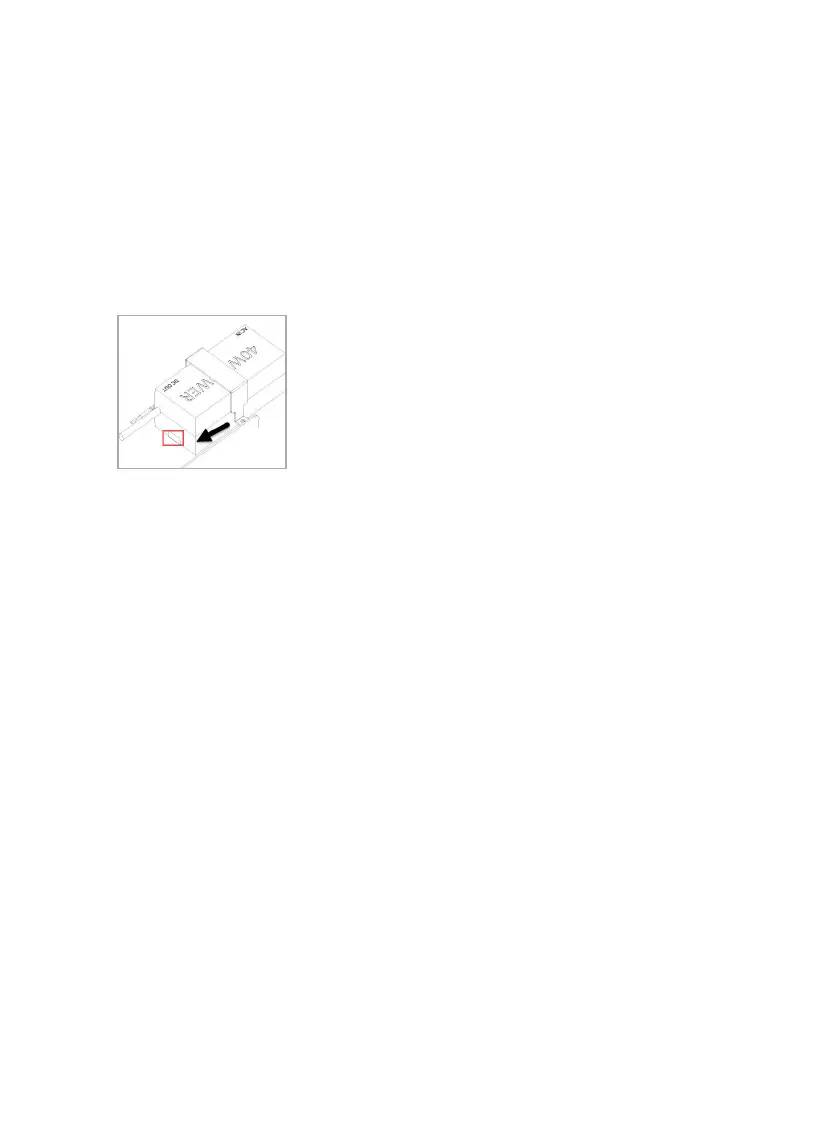

Place the adapter in the correct position on the shelf and push it until
you reach the stopper. The power adapter LED should be facing up.
3.
Place a bracket over the top of the adapter and attach to the shelf on
either side with the black screws.
4.
Use cable ties as needed to hold the cables in position.
5.
Attach the DC jack on the rear side to the rack power inlet.
