Repair or change product due to following reasons will be charged regardless the warranty period.
①
Trouble or damage of pump expired warranty period.
②
Trouble of using by careless handling.
③
Trouble or damage due to using non-designated part & reconstructing the products arbitrarily.
④
Trouble or damage due to reconstructing the products by other than CHEONSEI and our authorized
company.
⑤
Trouble by re or natural disaster
Caution
•
When the product is sent to factory for repair service, do not damage during transport.
Also, please make sure that bolts and other components are securely fastened in order not to loss it.
Contact to CHEONSEI or local agent as shown on back of the manual, if you have any problem or
questions.
If you want to repair, please inform the following.
①
Model Name & manufacture number written in name plate
②
Used period, using condition, & state
If warranty period is over, it may charge according to repair part. Please contact with sales agent for
more information.
Minimum retention period of parts for repair is 5 years from the date of production.
① HIGH
Alarm
N.C(Normal Close) ⑪ None
②
HIGH Alarm COM(Common)
⑫
Electrode A
③
HIGH Alarm N.O(Normal Open)
⑬
Electrode K
④
LOW Alarm N.C(Normal Close)
⑭
Electrode T1+
⑤
LOW Alarm COM(Common)
⑮
Electrode T1-
⑥
LOW Alarm N.O(Normal Open)
⑯
Electrode T2
⑦
None
⑰
DO analog output +
⑧
AC input power
⑱
DO analog output -
⑨
AC input power
⑲
Temp analog output +
⑩
F.G(Frame Ground)
⑳
Temp analog output -
14
Repair Service
15

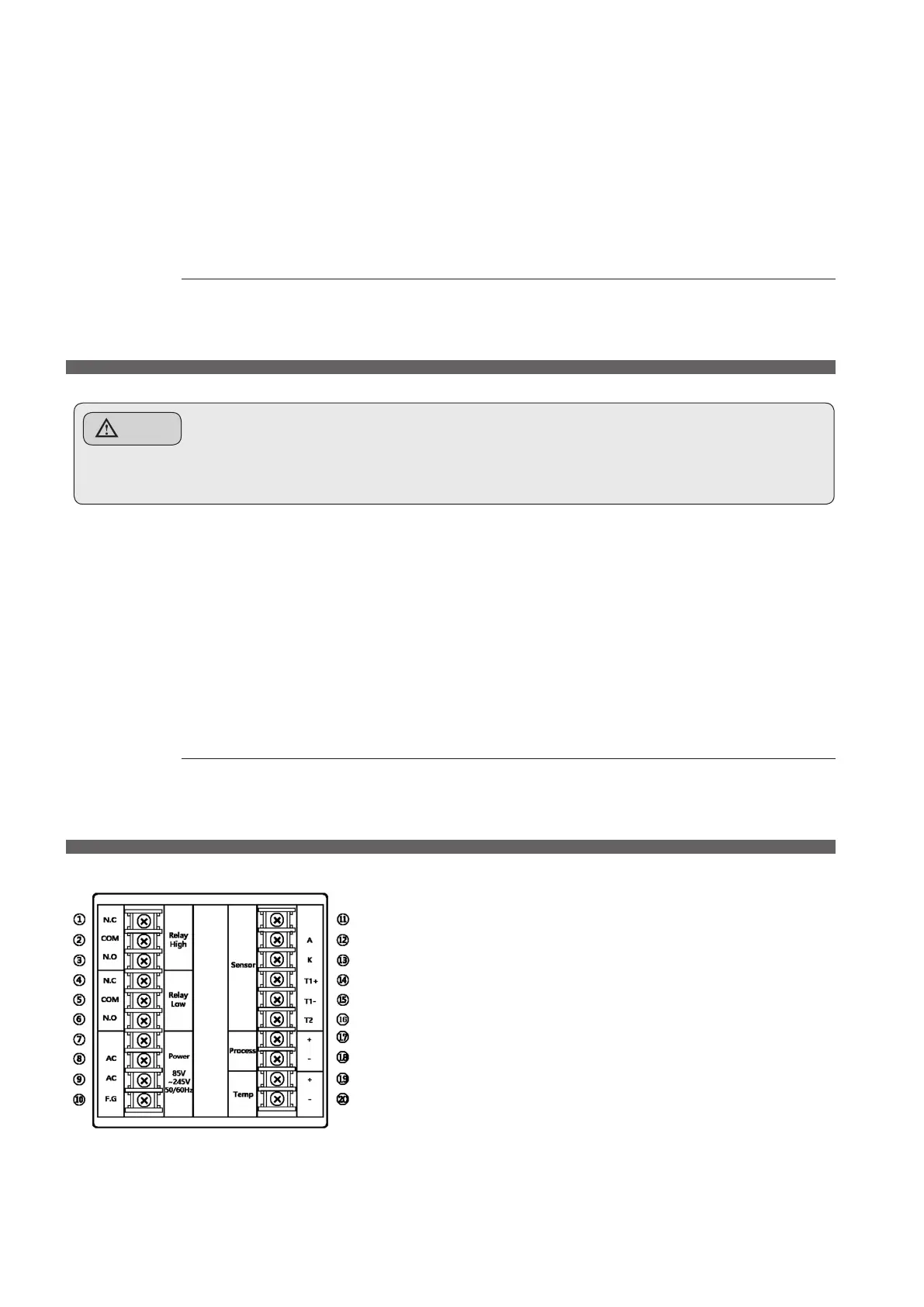

Controller Wiring
