35. A/C CLUTCH
36. FRONT FOG LAMP
J-case Fuses
1. EBCM PUMP
2. FRT WIPER
3. BLOWER
4. IEC R/C
5. NOT USED
6. Gasoline: NOT USED
Diesel: FUEL HEATER
7. NOT USED
8. COOL FAN LOW/MID
9. COOL FAN HIGH
10. Gasoline: EVP
Diesel: GLOW PLUG
11. STARTER SOL
U-Micro Relays
2. FUEL PUMP
4. SPARE
HC-Micro Relays
7. STARTER
Mini Relays
1. RUN CRANK
3. COOL FAN MID
5. PT RELAY
8. COOL FAN LOW
HC-Mini Relay
6. COOL FAN HIGH
Auxiliary fuse block
GO3E10014A

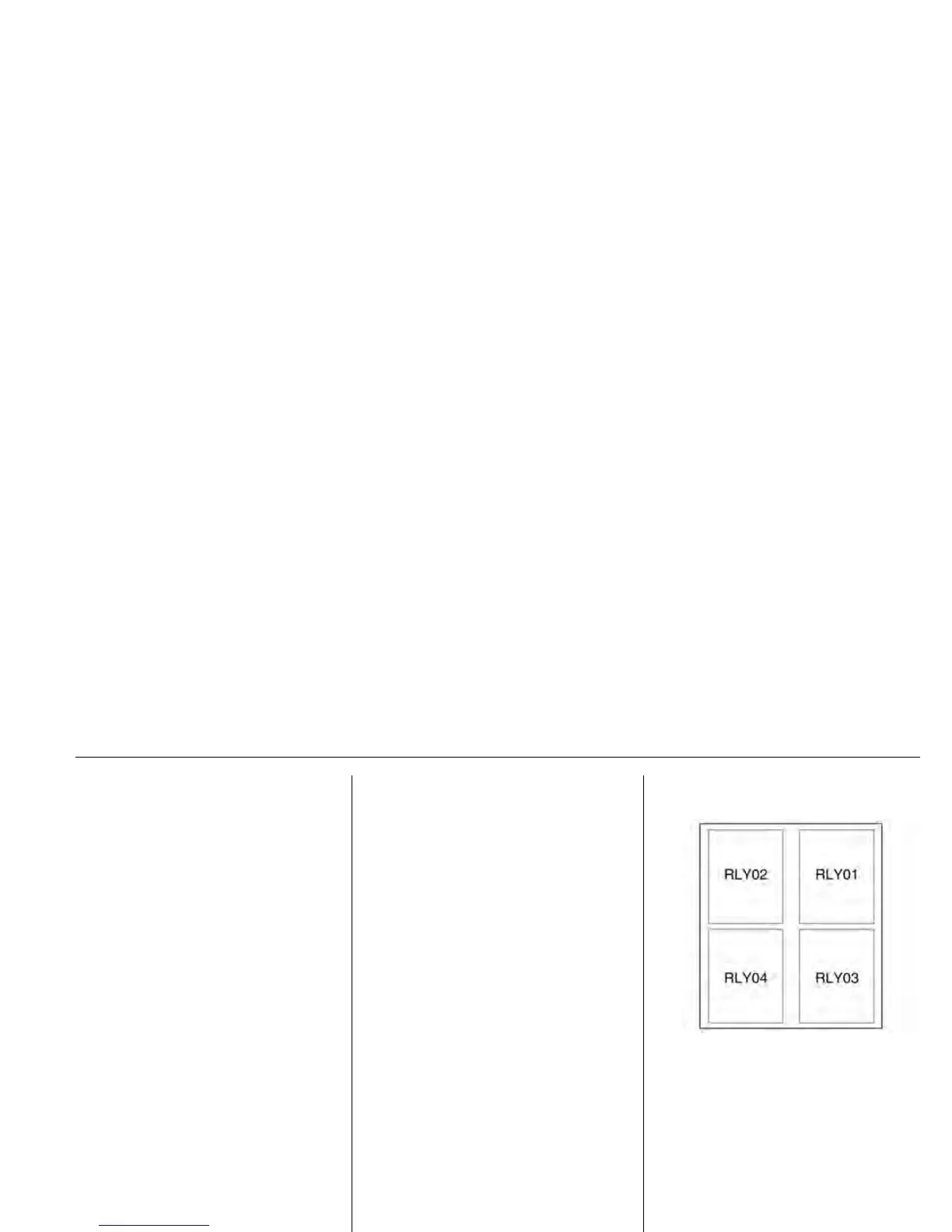

Relays
01. ELECTRIC VACUUM PUMP
RELAY
02. COOLING FAN CTRL 1 RELAY
03. COOLING FAN CTRL 2 RELAY
