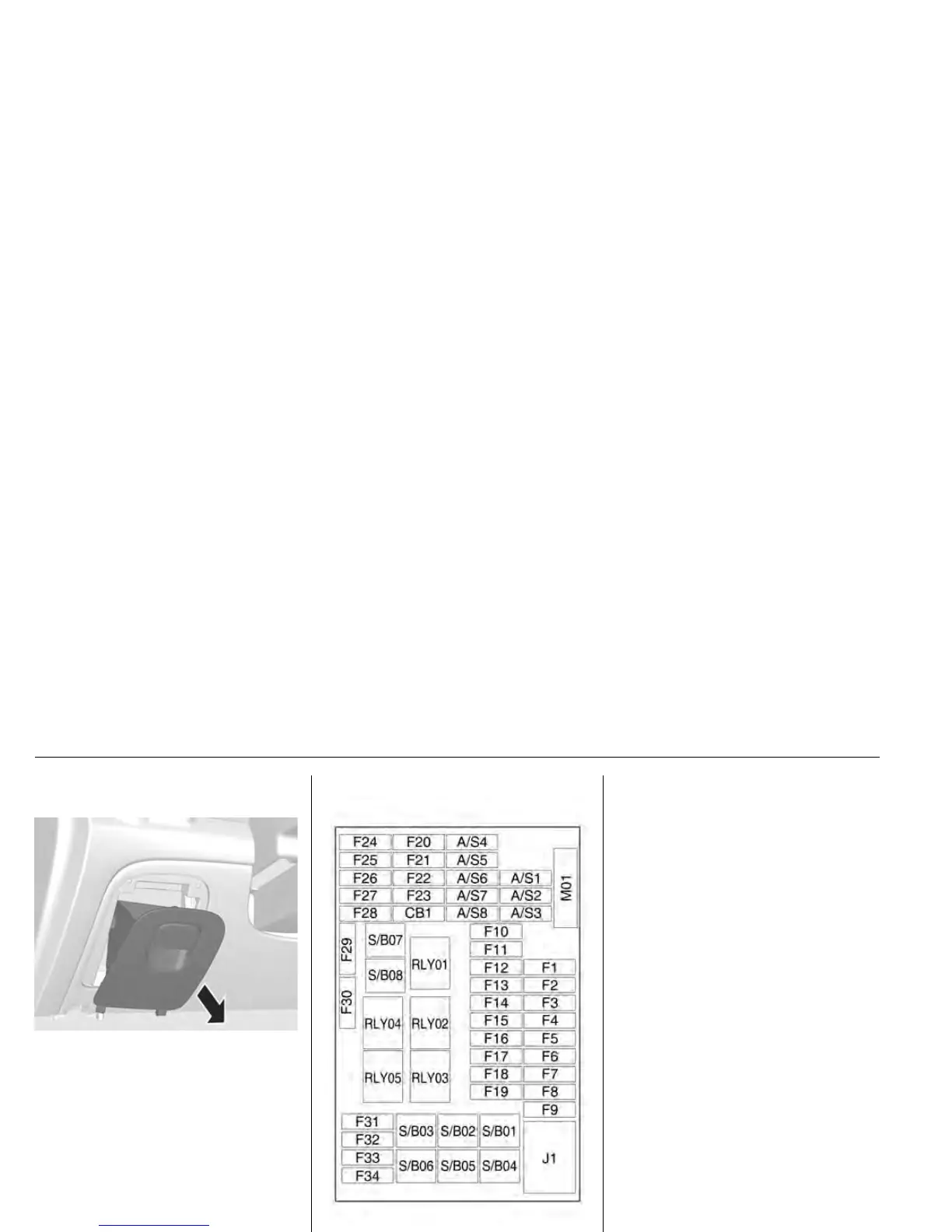

262 Vehicle care
Instrument panel fuse block
GO3E10035A
Interior fuse block is located on the
underside of the driver’s side
instrument panel.
To access the fuses, remove the
storage.
To remove the storage, open and
pull it.
GO3E10012A
Relays
01. ACCY/RAP RELAY
02. L/GATE RELAY
03. SPARE RELAY
04. BLOWER RELAY
05. LOGISTIC MODE RELAY
Mini Fuses
1. BCM 1
2. BCM 2
3. BCM 3
4. BCM 4
5. BCM 5
6. BCM 6
7. BCM 7
8. BCM 8
9. DLIS
10. SDM B+
11. DLC
12. HVAC MDL
13. L/GATE RLY
14. UPA MDL
15. ISRVM
