Air return grid
Takes in the indoor air
Operational performance/indications
Left/right air flow direction
adjusting fin
Up/down air flow direction
adjusting flap
Air outlet
Air blows out from here
Drain tube
Drain the water dehumidified out of the air
Air inlet
at sides & rear surface
Refrigerant piping
connection, Electric
wiring cord
Lightly push both sides of the air inlet grid at the bottom
and pull it to this side till a resistance is felt.
Note: Do not open the grid at an angle over 60 degrees Do not operate the units with too much force.
Push down the air inlet grid and then push both sides of air inlet grid at the bottom.
This button can be used as an emergency measure to turn on/o unit when
remote controller is not available.
Air discharge vent
How to open
How to close
Emergency operation key
Air filter
Removes dust or dirt out of the
inlet air

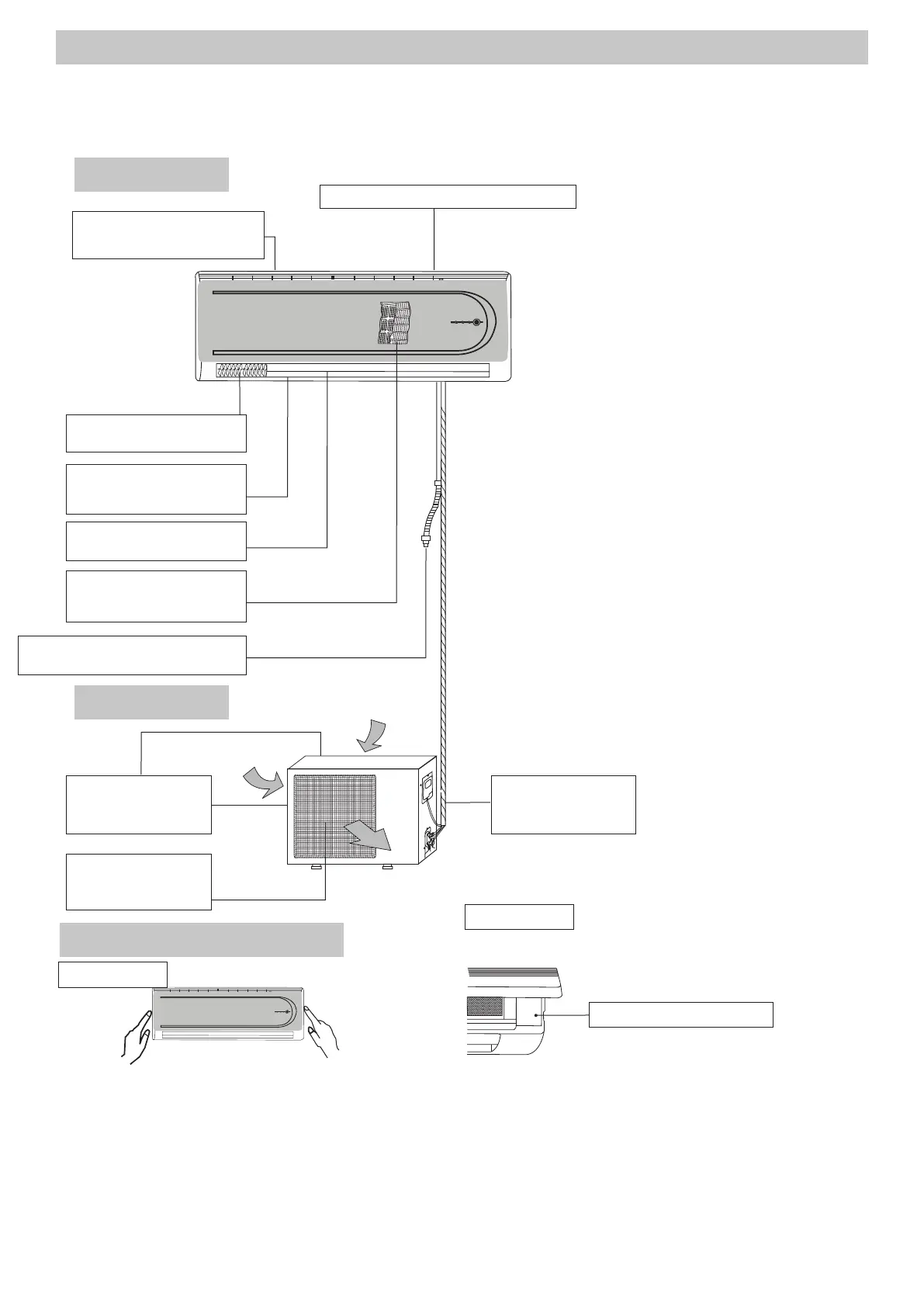

THE NAME OF EACH PART AND IT’S FUNCTION
features and appearance will vary, we only introduce the follow pattern. Others please
refer to using..
INDOOR UNIT
OUTDOOR UNIT
UNIT OPERATION SECTION
