Chino AH3000 Series User Manual

0-8

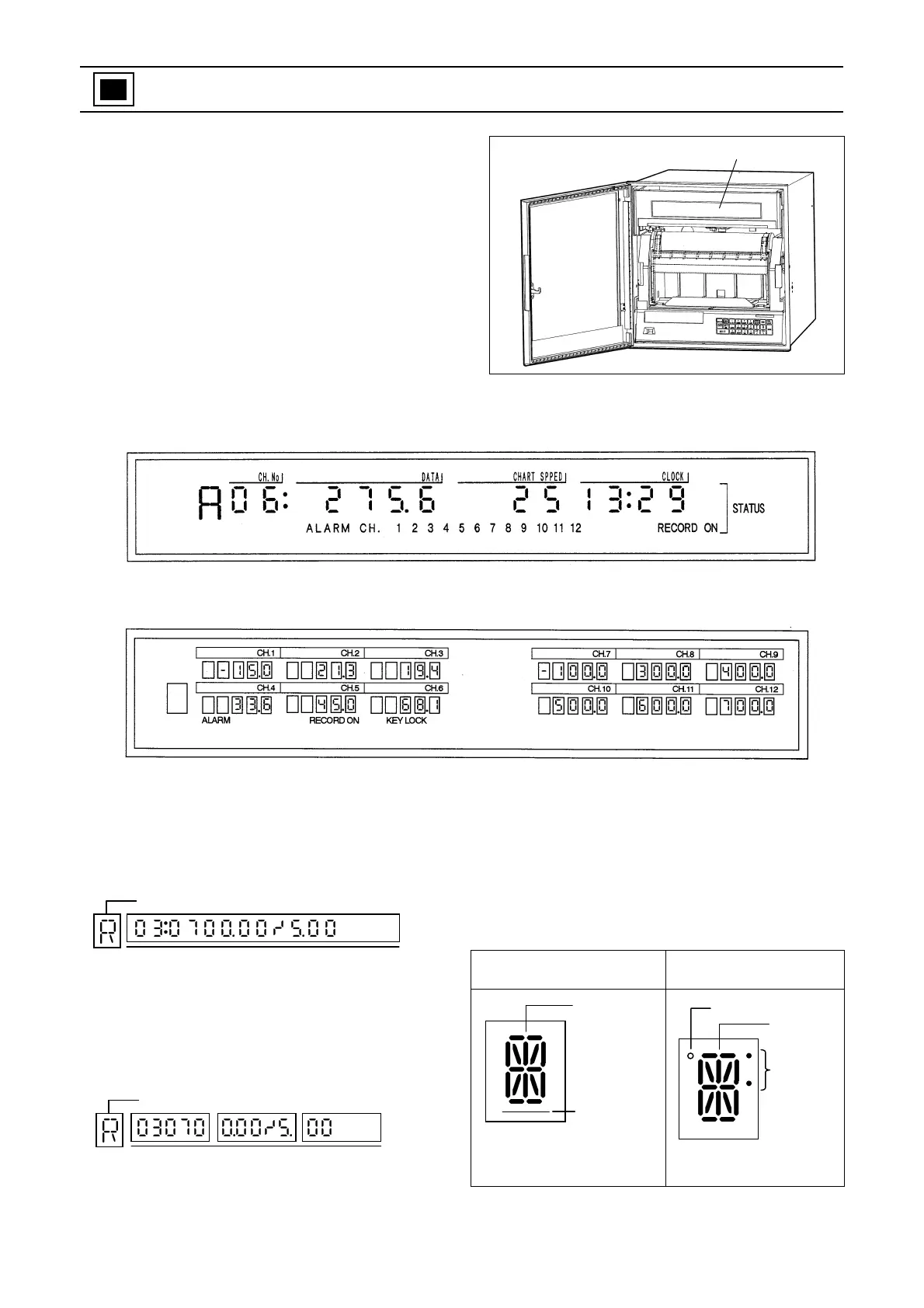

DISPLAY SPECIFICATIONS
Two kinds of display system for the multi-point
sequential display and multi-point simultaneous
display are available. The display arrangement and
displaying contents differ, but the operation is
almost same.
The right figure shows the multi-point sequential
display. In this instruction manual, the multi-point
sequential display is mainly illustrated
1. Display arrangement
1) Multi-point sequential display
2) Multi-point simultaneous display……For 12-point input (6-point and 24-point inputs are also available.)
2. Programming Display
1) An example of programming display
･In case of multi-point sequential display
･In case of multi-point simultaneous display
The programming is executed on the lower left
side of the display. No colon appears on the right
of channel number.
2) Character display
Displaying methods during programming and
storing to memory differ between two display
systems.
Multi-point sequential
display
Multi-point simultaneous
display
*Lights during programming
and flickers during storing
into memory.
*Flickers during storing
into memory.
Display
Character display
Programming display
Character display
Programming display
Underline*
Character
display
Character
display
Programming lamp
Memory
colon*
