- 7 -
4. Mounting and Wiring

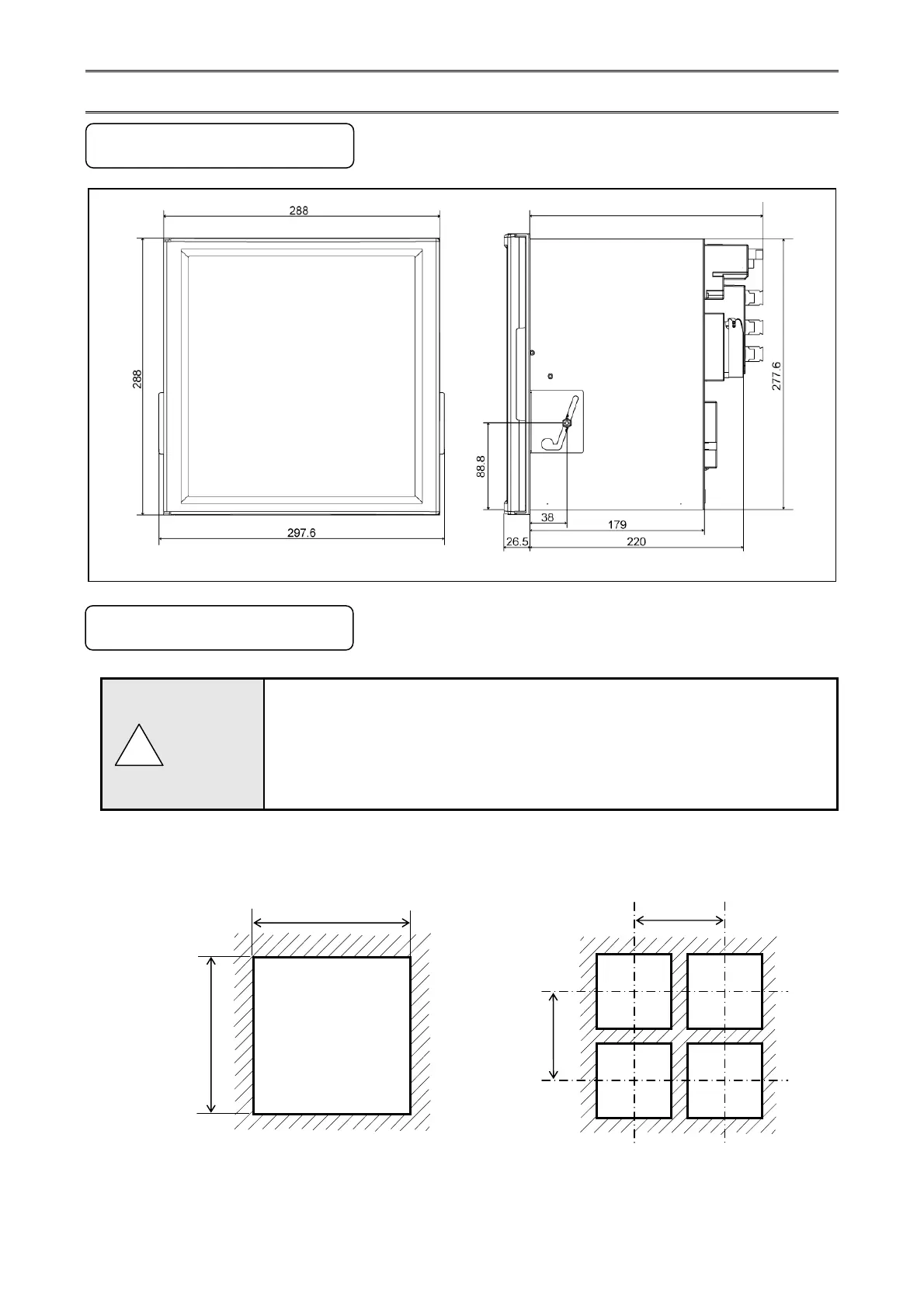

4-1. External Dimensions
Unit: mm
4-2. Mounting
(1) Use the recorder mounting on an indoor installed instrumentation panel.
(2) Brackets can be attached to a panel of steel with thickness of 2 to 6mm or
equivalent strength. Select thickness of a panel considering weight and depth of
the unit with panel formation for actual use.
(3) When mounting the recorder on the panel, mount it according to the instruction
manual for preventing injury.
1. Panel cutout and mounting method
Unit: mm
281
+1
0
+1
0
281
360
360
Minimum interval on multiple
units mounting
!
Caution
241 When alarm output/remote contacts unit
and communication unit are added
