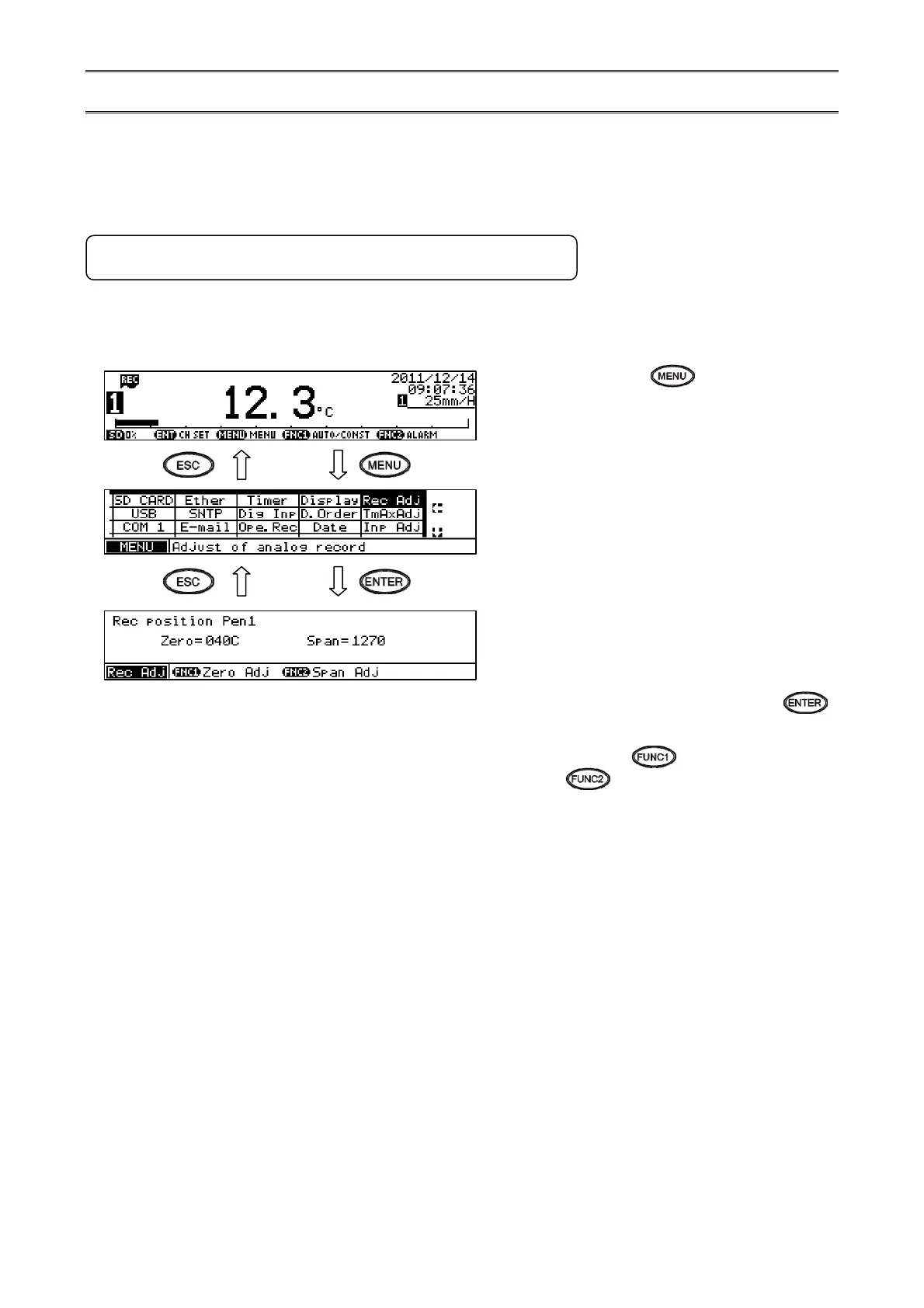

- 102 -
9. Adjustment
The unit provides four adjustment functions. Perform a suitable adjustment depending on the situation. All adjustments are
processed in the software and mechanical adjustment such as trimmer adjustment is not necessary.
Available adjustments are “trace printing position adjustment”, “input (measurement) adjustment”, “input (measurement)
shift adjustment” and “recording position (time) adjustment”.
9-1. Trace Printing Position Adjustment “Rec Adj”
Perform zero/span adjustment for cartridge pen and plotter pen position on a chart. This adjustment does not affect the
measured value. Before performing this adjustment, enable “Adjust of Rec position” according to “8-26. System Settings”.
When it is enabled, “Rec Adj” is shown on the menu window (list of setting items).
(1) Pressing the key displays the
menu window (list of setting items).
(2) Select “Rec Adj”.
(3) Set pen No. with the / keys. Each time
pressing the key changes Pen1 Pen2
Pen3 Pen4 Plot. (plotter pen). The
zero and span values currently set are
shown on this window. These values are
replaced by new values, when the
key is pressed after completing the
adjustments.
(4) Press the
key to select zero, or the
key to select span.
