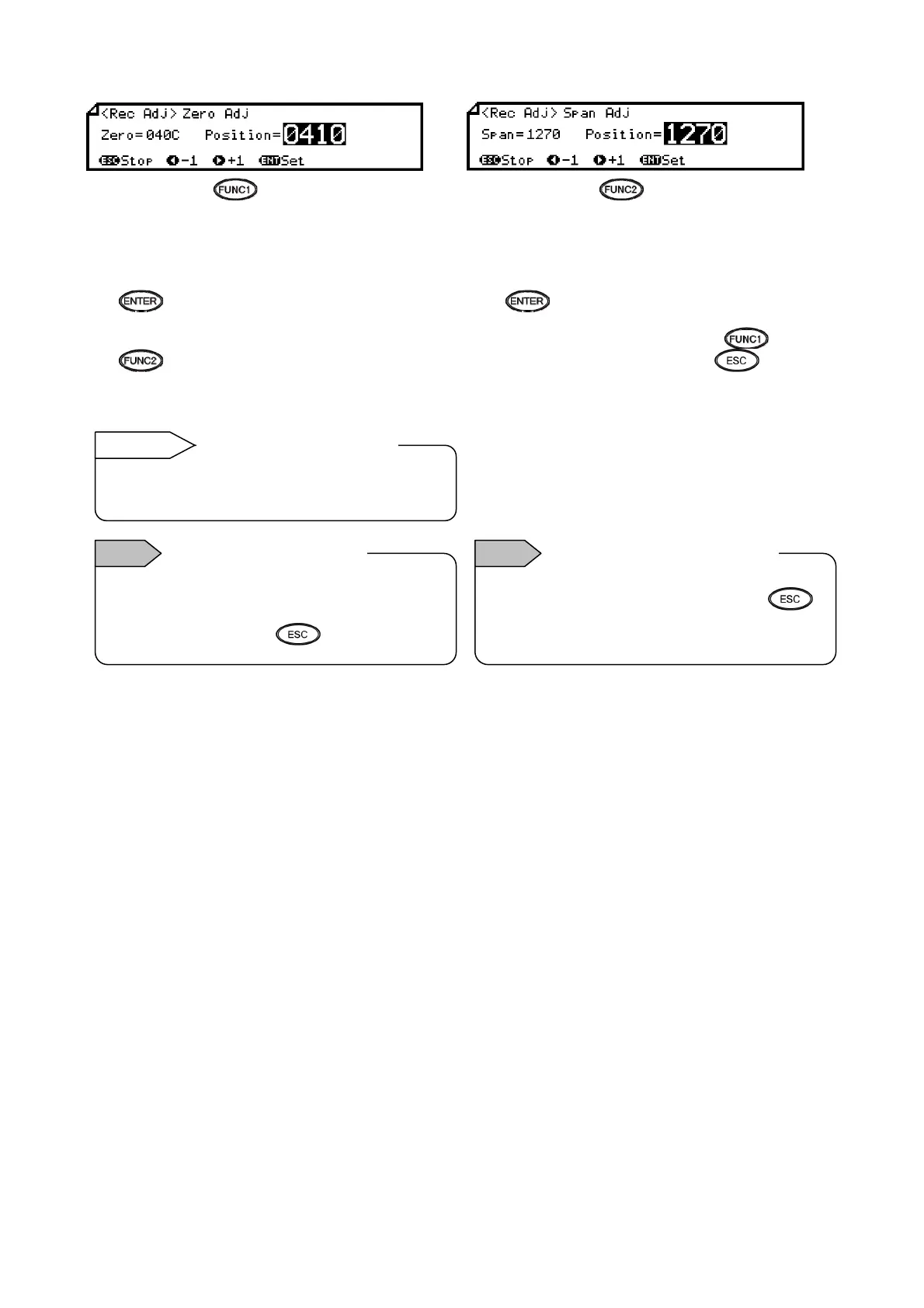

[Zero adjustment]
(5) Pressing the key moves the pen to the
zero side and pen recording starts while feeding
the chart.
(6) Move the pen with the
/ keys so that pen
recording is aligned to the chart 0% position.
(7) When the adjustment is completed, press the
key to register the zero position.
[Span adjustment]
(5) Pressing the key moves the pen to the
span side and pen recording starts while feeding
the chart.
(6) Move the pen with the
/ keys so that pen
recording is aligned to the chart 100% position.
(7) When the adjustment is completed, press the
key to register the span position.
(8) While the adjustment window is displayed, you can perform adjustment by pressing the key or
key as many times as you need. When the adjustment is completed, press the key to exit
the trace printing position adjustment.
Zero and span can be adjusted separately.
To adjust the 0% position only, press the
key when the adjustment is completed.
Zero/span individual adjustment
Note 2
Unless the / key is pressed, dotting at 0% or
100% position is performed using the currently set
adjustment data. When adjustment is not
necessary, just press the
key.
Dotting at zero/span side
Note 1
Pens stand by near the center.
Pens other than set pen No.
Reference
