- 76 -

8-15. Recording Format Settings “PrtForm”

Set the format for trace printing depending on the intended use.

This function is provided to select the format used for trace printing. Input range and its accuracy are determined by the

settings made in “8-2. Input Type Settings”.

The recording format cannot be set for each individual channel. Select one from the following options which is shared by

all channels. However, when selecting the automatic range-shift or compressed/expanded printing, whether or not to use

the function can be specified for each channel. A channel specified not to use the function will use the standard format.

 Automatic range-shift ····················· Recording range is shifted automatically depending on the input range.

 Compressed/expanded printing ······· Chart recording area can be partially shrunk or expanded.

 Zone printing ······························· Chart recording area can be divided into four areas at maximum.

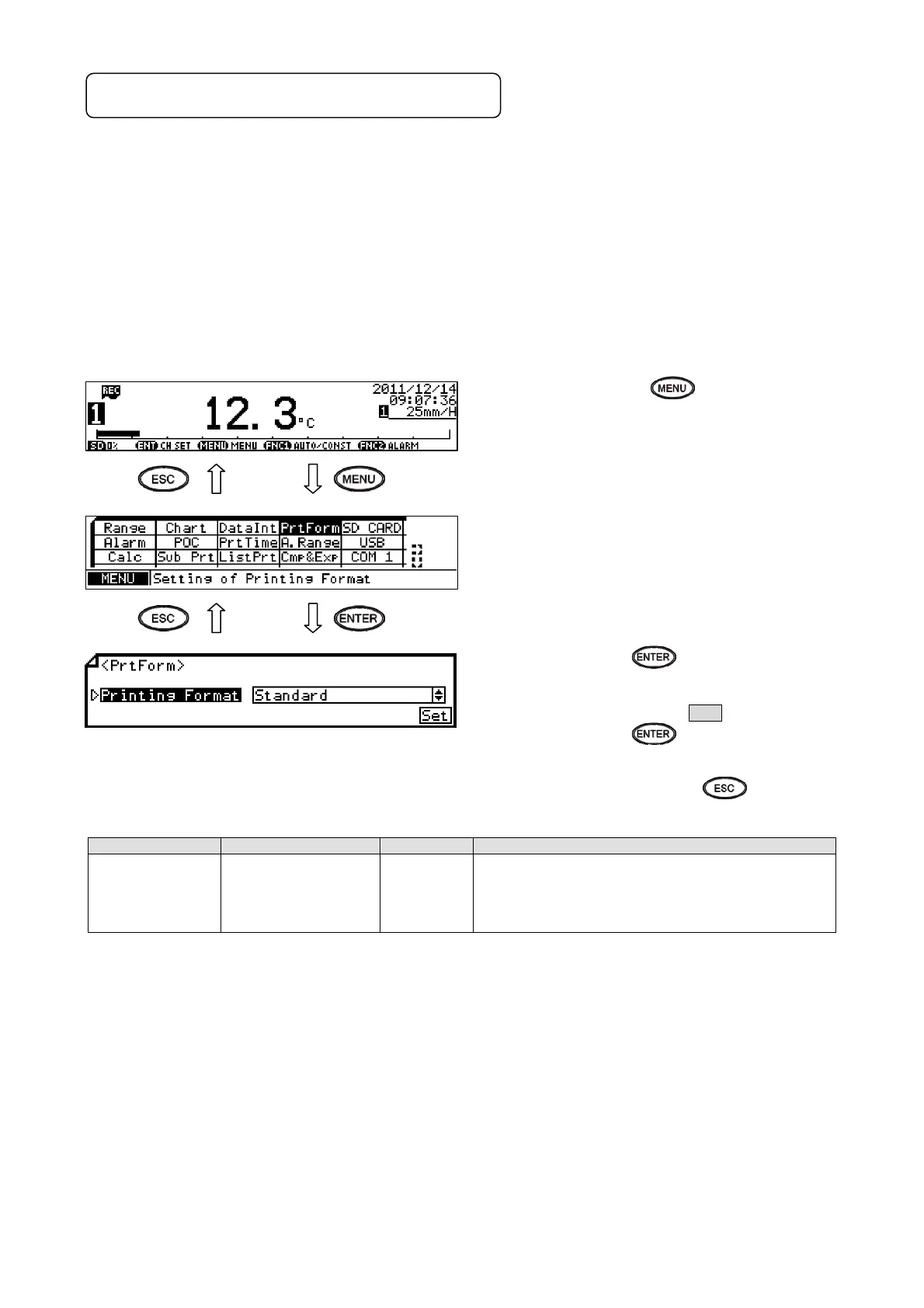

(1) Pressing the key displays the

menu window (list of setting items).

(2) Select “PrtForm”.

(3) Press the

key to make it available

for setting and then select a value.

(4) After completing the setting of this item,

move the cursor to Set .

(5) Press the key to register the

setting (when chart recording is ON, a

setting change mark is printed). To cancel

the setting, press the

key.

[PrtForm setting parameter]

Parameter Function Default Set value

Printing Format Select recording format Standard Standard,

Auto Range Normal (automatic range-shift normal),

Auto Range Overlap (automatic range-shift overlap),

Comp.&Exp.Print (compressed/expanded printing),

Zone Print (parallel scale)
