- 9 -
4-3. Wiring

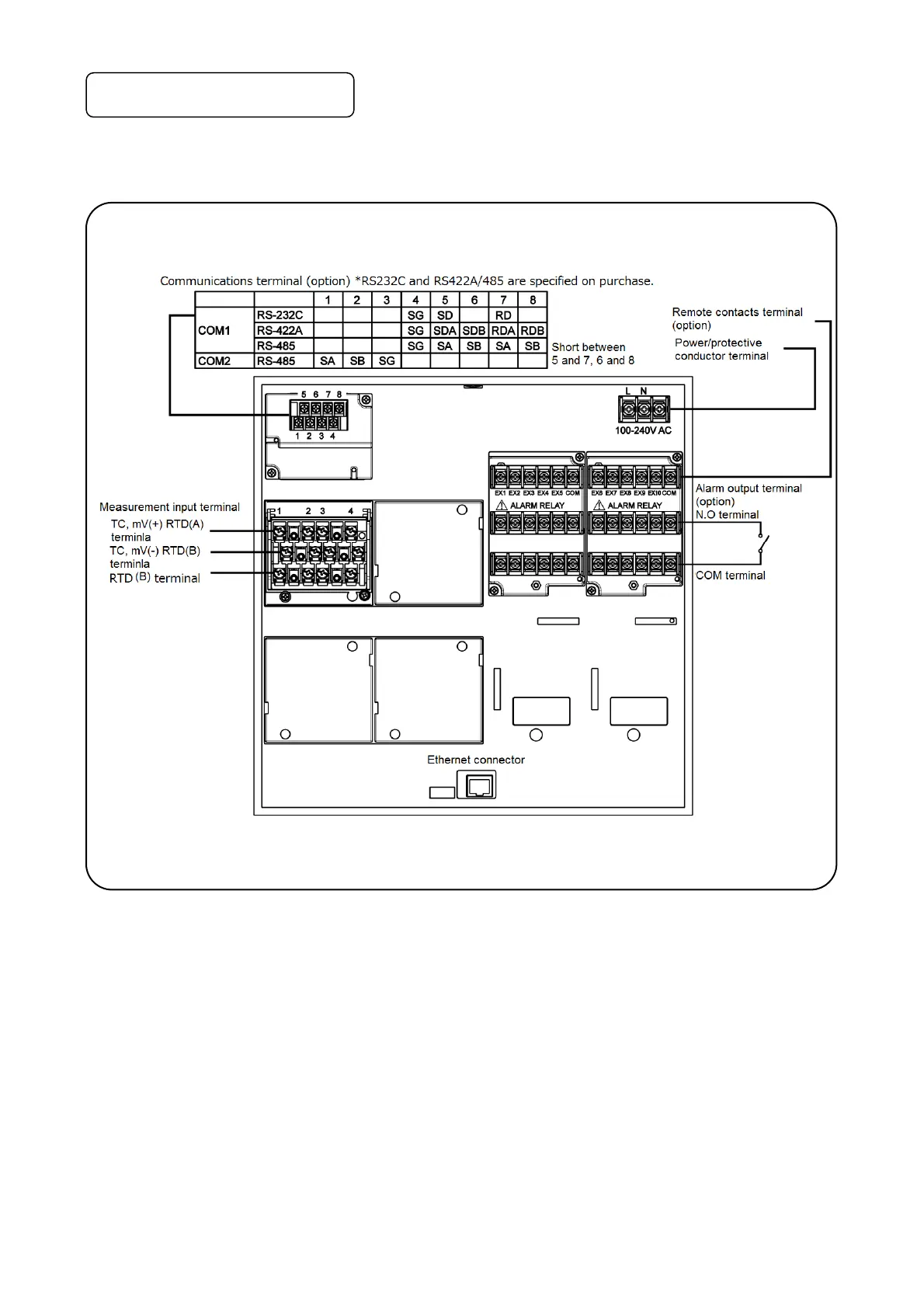

1. Terminal board diagram
The figure below is the diagram of the terminal board with the option [Alarm relay output (12 points ‘a’ contact) +
remote contacts (10 points) and communication interface].
