3–42 Chris-Craft
Systems
The batteries are connect to a battery distribution cluster which support the master battery switches. The
number of switches in the cluster will vary depending upon the number of batteries in the boat. Figure 3-32
illustrates a typical two battery switch cluster.
The battery distribution cluster may also contain the Emergency Parallel switch. Activating this switch
links all the batteries together to provide extra current should one battery become depleted.

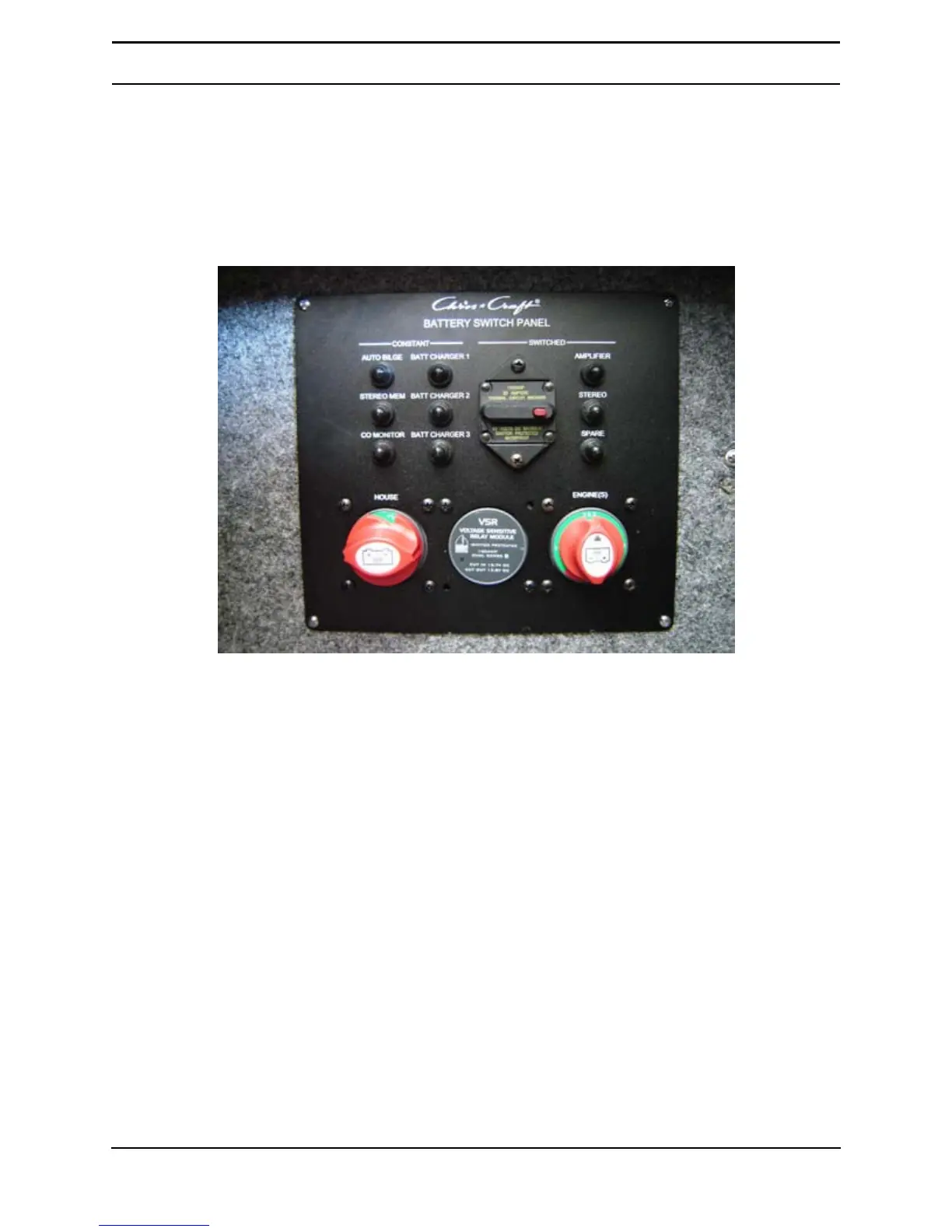

Figure 3-32. Two Battery Switch Cluster
