Chroma 61603 Quick Start Guide

Programmable AC Source 61601/61602/61603/61604 Quick Start Guide
1. Introduction
The series of Chroma AC source 61601/61602/61603/61604 are high
efficiency AC source which provide sine wave output with low distortion,
and accurate measurement of power. The DSP microprocessor
generates accurate, stable output voltage and frequency. The PWM
design of power stage allows for full volt-ampere into loads. The front
panel has both RPG (rotary pulse generator) and keypad controls for
setting the output voltage and frequency. The LCD provides a complete
operating state of the unit to the user. Remote programming is
accomplished either through the GPIB bus or the RS-232C serial port.
1.1 Names of Parts
1.1.1 Front Panel
1
2
3 4 5
67
8
9
10
11

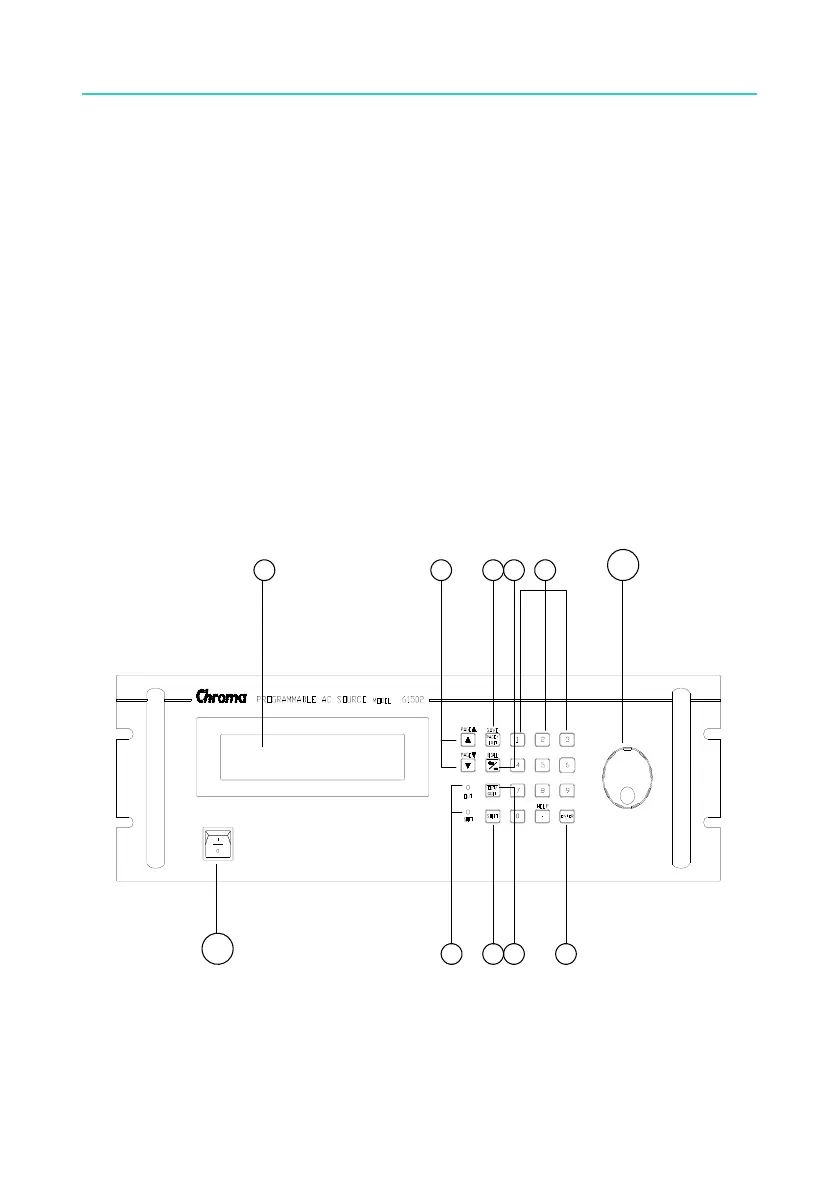

Figure 1-1 Front Panel
1-1
