Chromalox 2104 User Manual

Chromalox 2104 Technical Manual 77
Sensor
Input
Calibration
(continued)
3. Adjust the simulator to output the low end of the
selected sensor range. Sensor minimum ranges are:
Sensor °F °C
J T/C -100 -73
K T/C -300 -184
T -350 -212
E -100 -73
R 0 -18
S 0 -18
B50 10
RTD 48.46Ω
RTDT (0.1°) 70.98Ω
4-20mA 4mA
0-5 Vdc 0 Vdc
1-5 Vdc 1 Vdc

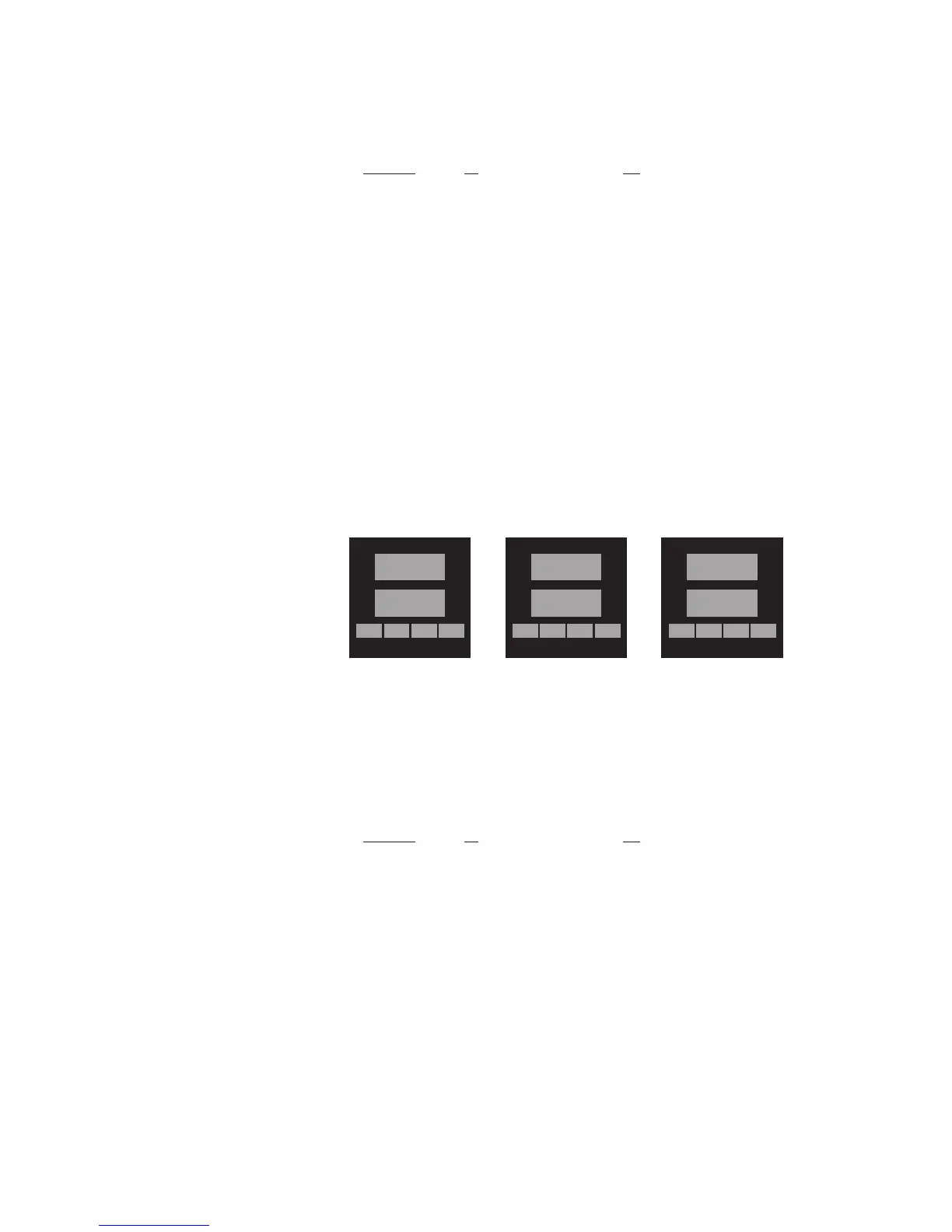

4. Wait 30 seconds for the electronics to fully stabilize.
Press ▲. Dashes will appear in the lower display
while the controller calibrates the low end of span.
CALSCALS
CALSCALS
CALS
ININ
ININ
IN
LL
LL
L
OO
OO
O
AUX ▲▼
RESET
CALSCALS
CALSCALS
CALS
--------
--------
----
AUX ▲▼
RESET
➮➮
CALSCALS
CALSCALS
CALS
ININ
ININ
IN
HH
HH
H
II
II
I
AUX ▲▼
RESET
5. When the controller prompts INHI in the lower
display, adjust the sensor simulator to output the
high end of the currently selected sensor span.
Sensor maximum ranges are:
Sensor °F °C
J T/C 1400 760
K T/C 2400 1316
T750 399
E 1100 593
R 3200 1760
S 3200 1760
B 3300 1816
RTD 293.49Ω
RTDT (0.1°) 275.04Ω
4-20mA 20mA
0-5 Vdc 5 Vdc
1-5 Vdc 5 Vdc
☛
