INSTALLATION
(1) Install vacuum hose.
(2) Install 2 bolts.
(3) Install link.
(4) Install the negative battery cable.
VACUUM RESERVOIR SRV
REMOVAL
(1) Disconnect the negative battery cable.
(2) Remove air inlet hose and resonator box and
air cleaner top.
(3) Remove the 3 fasteners from vacuum reservoir
(Fig. 25).
(4) Remove electrical connector.
(5) Remove vacuum hoses.
(6) Remove vacuum reservoir.
INSTALLATION
(1) Install vacuum hoses to reservoir.
(2) Install electrical connector.
(3) Install 3 fasteners and tighten.
(4) Install air inlet hose and resonator box and air
cleaner top.
(5) Connect the negative battery cable.
POWERTRAIN CONTROL MODULE (PCM)
The PCM engine control strategy prevents reduced
idle speeds until after the engine operates for 320 km
(200 miles). If the PCM is replaced after 320 km (200
miles) of usage, update the mileage and vehicle iden-
tification number (VIN) in the new PCM. Use the
DRB scan tool to change the millage and VIN in the
PCM. If this step is not done a diagnostic trouble
code (DTC) may be set and SKIM must be done or
car will not start if it is a SKIM equipped car. If a
SKIM car you must do a secret key transfer also.
Refer to the appropriate Powertrain Diagnostic Man-
ual and the DRB scan tool.
REMOVAL
To avoid possible voltage spike damage to PCM,
ignition key must be off, and the negative battery

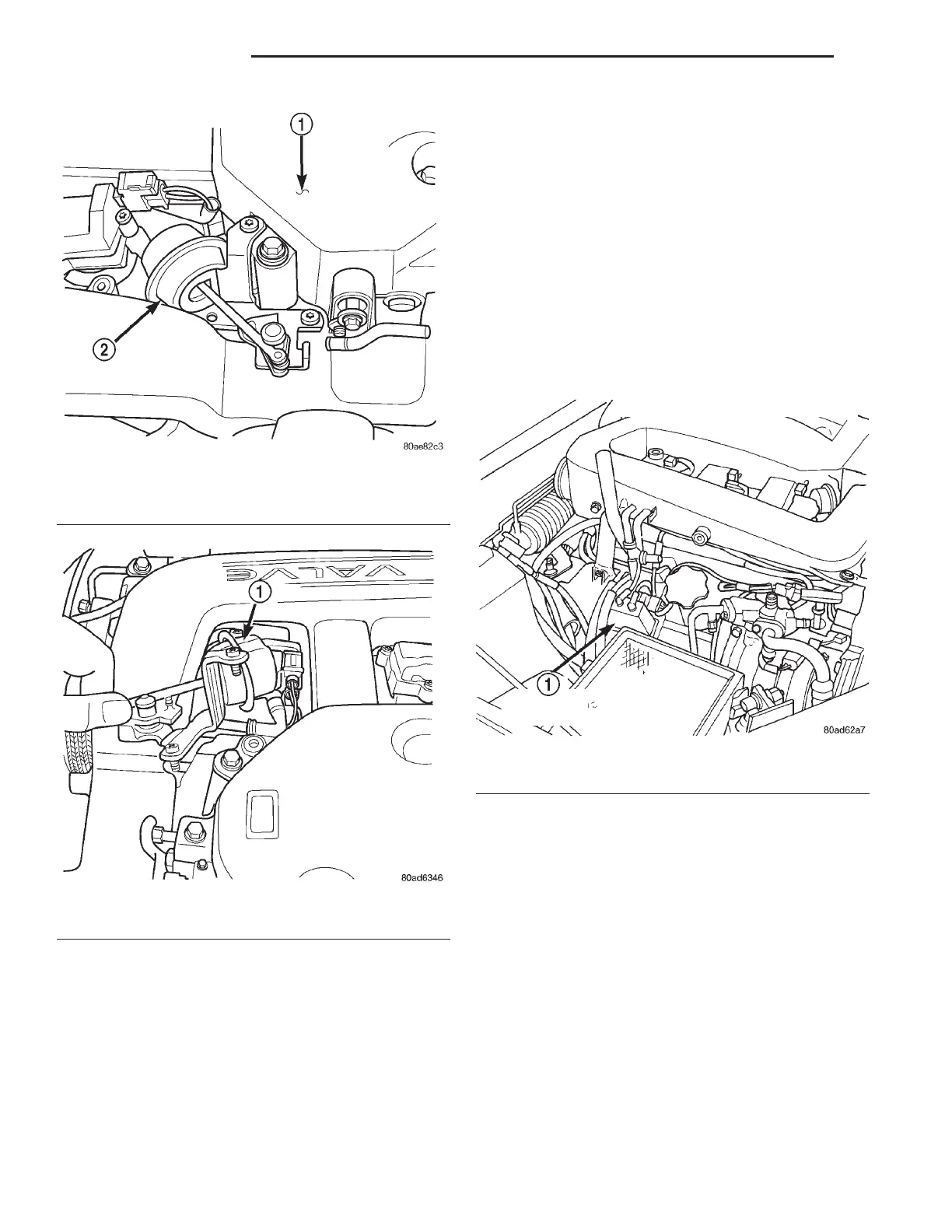

Fig. 23 Retaining Clip
1 – INTAKE MANIFOLD
2 – SRV VALVE
Fig. 24 Short Runner Valve
1 – SRV VALVE
Fig. 25 Vacuum Reservoir
1 – SRV VACUUM RESERVOIR
