(9) Tighten the outer adjuster 3/4 of a turn. Seat
bearings by turning differential carrier three or four
turns in both directions. Finish tightening the
adjuster 1/4 turn to its index mark (original location).
(10) Reinstall long stub shaft, fill differential with
fluid and reinstall transaxle.
(11) After installing transaxle check transmission
side fluid level.
SHORT STUB SHAFT SEAL REPLACEMENT
The following procedure can be used to replace the
short stub shaft seal without having to remove the
transaxle from the vehicle. If the adjuster or bearing
located behind the adjuster require replacement, do
not use this procedure. Refer to Differential Recondi-
tion section of this manual.

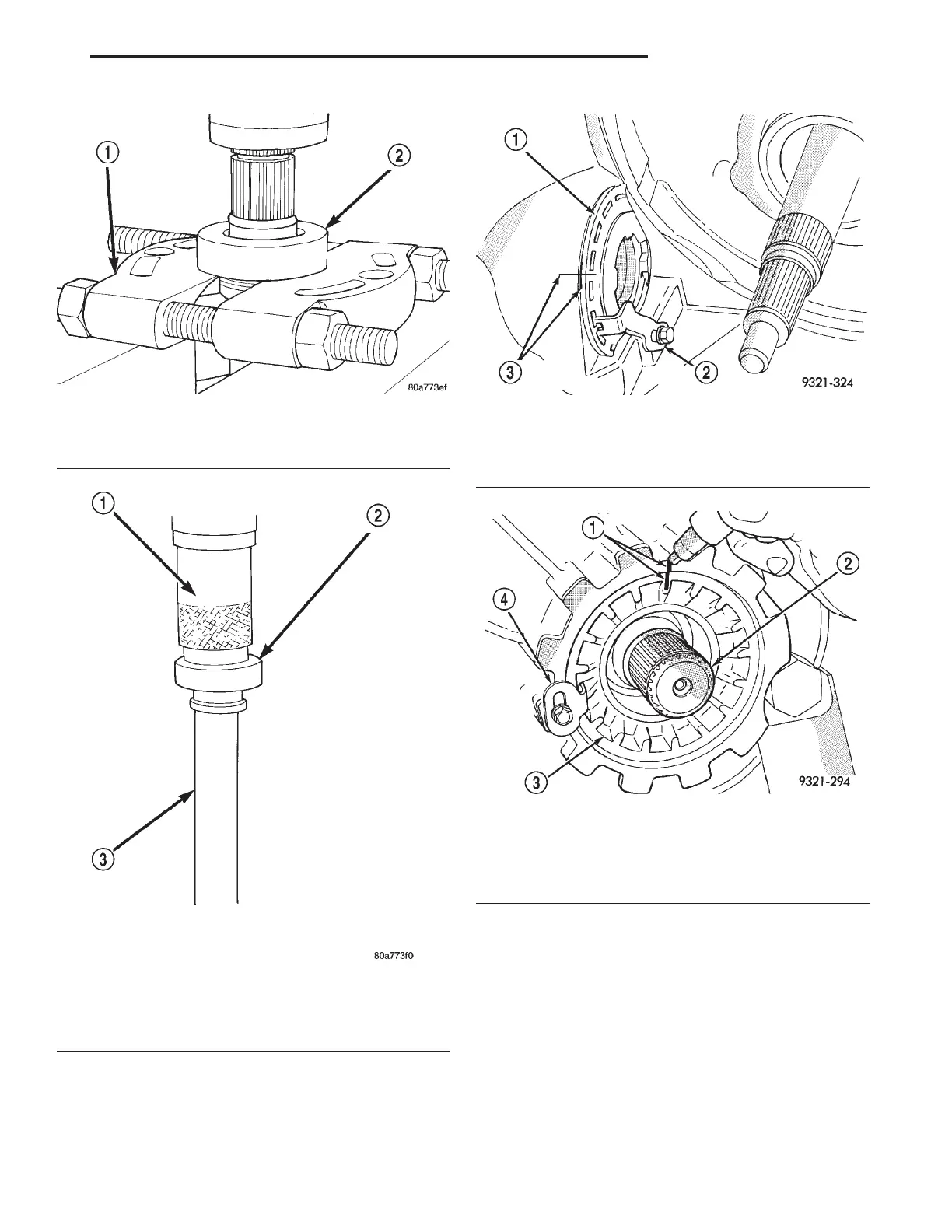

Fig. 112 Remove Stub Shaft Bearing C-clip
1 – BEARING SPLITTER
2 – STUB SHAFT BEARING
Fig. 113 Install Bearing Onto Shaft
1 – TOOL 6558
2 – STUB SHAFT BEARING
3 – STUB SHAFT
Fig. 114 Indexing Inner Adjuster
1 – INNER ADJUSTER
2 – ADJUSTER LOCK
3 – CROSS HAIR MARKS
Fig. 115 Indexing Outer Adjuster
1 – INDEXING MARKS
2 – STUB SHAFT
3 – OUTER ADJUSTER
4 – ADJUSTER LOCK
LH 42LE TRANSAXLE 21 - 55
REMOVAL AND INSTALLATION (Continued)
