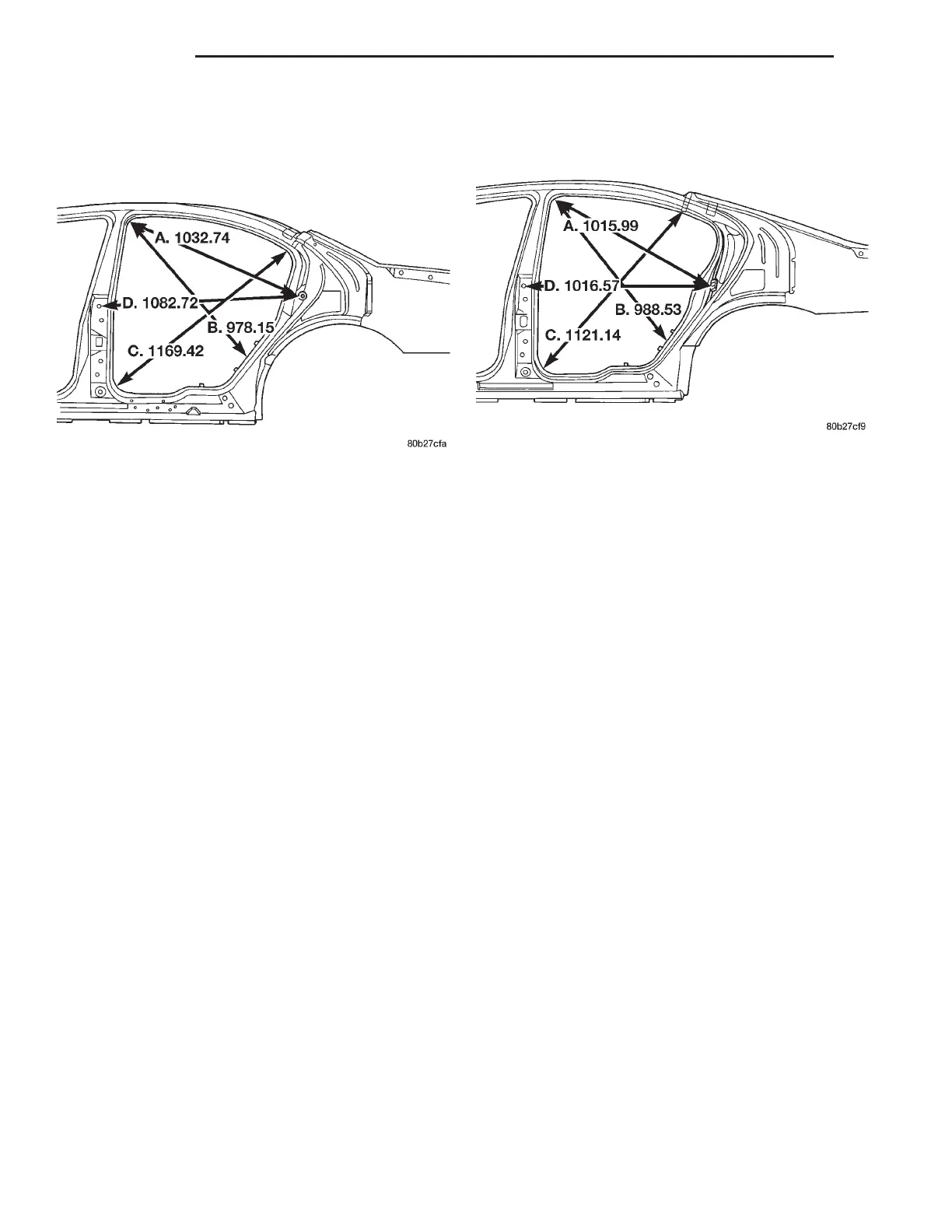

• A. Center of radius at top to door latch hole.
• B. Center of radius at bottom to center of radius
at top.
• C. Center of radius at bottom to edge of quarter
panel at C-pillar.
• D. Upper rear door hinge rear bolt hole to door
latch hole.
• A. Center of radius at top to door latch hole.
• B. Center of radius at bottom to center of radius
at top.
• C. Center of radius at bottom to edge of quarter
panel at C-pillar.
• D. Upper rear door hinge rear bolt hole to door
latch hole.
REAR DOOR OPENINGS – CONCORDE/LHS/
300M
REAR DOOR OPENINGS – INTREPID
23 - 152 BODY LH
SPECIFICATIONS (Continued)
